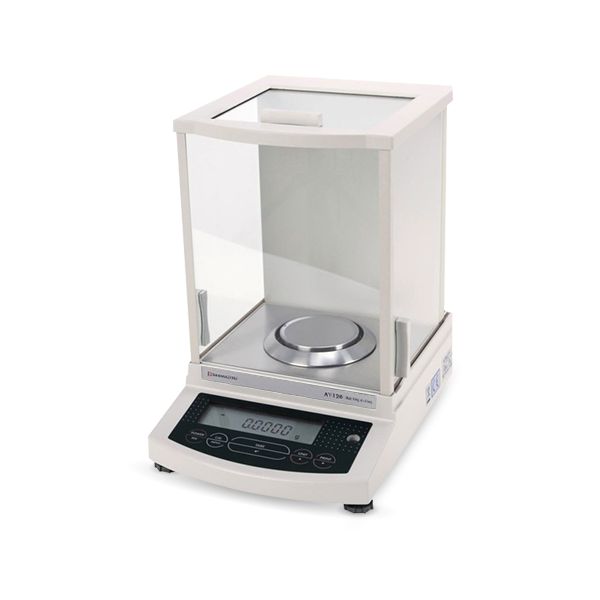

Shimadzu AY120 Analytical, Top-Loading Balances

เครื่องชั่งน้ำหนักดิจิตอล

ชั่งน้ำหนักได้สูงสุด 120g

Resolution 0.1mg

Accuracy ±0.2mg

RS232C Interface

Windows® Direct

Piece counting

Analog bar graph display

Connect to printer (แยกจำหน่าย)

แบตเตอรี่ AC Adapter

ขนาดตัวเครื่อง 216 × 315 × 330mm (7000g)

ขนาดถาดวัด Ø80mm

ยี่ห้อ Shimadzu, Japan

Shimadzu AW / AX / AY Series

Model	AW Series			AX Series		AY Series
Model	AW120	AW220	AW320	AX120	AX200	AY120	AY220
Capacity	120g	220g	320g	120g	200g	120g	220g
Minimum display	0.1mg
Standard deviation σ	0.1mg	0.1mg	0.15mg	0.1mg	0.1mg	0.1mg	0.1mg
Linearity	±0.2mg	±0.2mg	±0.3mg	±0.2mg	±0.2mg	±0.2mg	±0.2mg
Built-in calibration weight	Motor-driven			Motor-driven		Not equipped
Pan size (dia)	Ø80mm
Power requirements	7VA approx.
Input / Output terminals	RS-232C / Data I / O connector for electronic printer
Units available	g, mg, %, pcs, ct, mom, lb, Oz, Ozt, Tael (Hong Kong, Singapore, Taiwan,Malaysia, China), dwt, GN, m, b, t, o, d (solid, liquid)
Perfect Self Calibration (PSC)	✓	✓	✓
Clock-CAL	✓	✓	✓
Motor-CAL (Touch-key with built-in weight)	✓	✓	✓	✓	✓
Touch-key calibration with external weight	✓	✓	✓	✓	✓	✓	✓
Built-in clock	✓	✓	✓	✓	✓
Windows® Direct	✓	✓	✓	✓	✓	✓	✓
Built-in RS-232C interface	✓	✓	✓	✓	✓	✓	✓
Specific gravity measurement S/W	✓	✓	✓	✓	✓	✓	✓
Piece counting	✓	✓	✓	✓	✓	✓	✓
Analog bar graph display	✓	✓	✓	✓	✓	✓	✓
Optional battery operation	✓	✓	✓	✓	✓	✓	✓

SKU	AY120
Weight	7000.000000
Dimension	216 × 315 × 330mm
Manufacturer	Shimadzu
Water resistance	No
Function for Scale	Connects to Computer, Counting scale
Resolution	0.1mg
Measurement Range	120g
Other Function	Analog bar graph display
Power Supply	AC Adapter
Accuracy	±0.2mg
