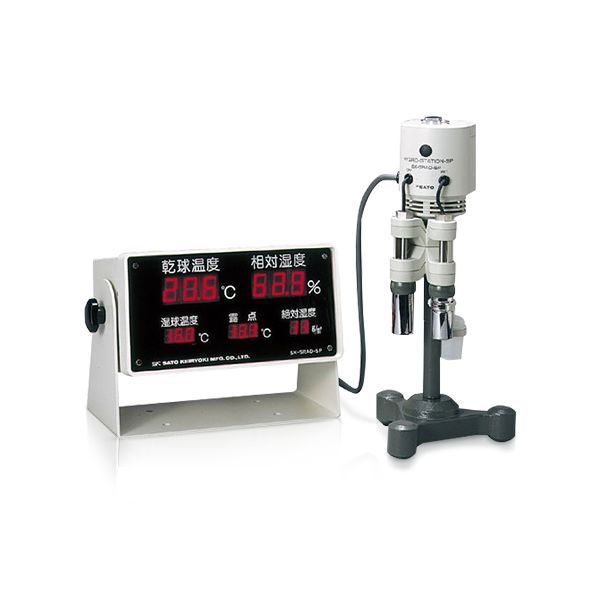

SK Sato SK-5RAD-SP Multiple Measuring System For Temperature and Humidity

Elements

อุณหภูมิ Dry Bulb

อุณหภูมิ Wet Bulb

ความชื้นสัมพัทธ์

Relative Humidity

อุณหภูมิ Dew Point

ความชื้นสัมบูรณ์

Absolute Humidity

ช่วงการวัด

0 to 50.0°C

0 to 50.0°C

-

-

-

Operating range

-

-

0 to 99.9% rh

-40 to 50.0°C

0 to83 g/m³

หน้าจอแสดงผล

7 segment
red LED
3 digits

7 segment
red LED
3 digits

7 segment
red LED
3 digits

7 segment
red LED
3 digits

7 segment
red LED
2 digits

Resolution

0.1°C

0.1°C

0.1%

1°C : -40 to -10°C
0.1°C : -9.9 to 50°C

1 g/m³

Accuracy for
measurement

within
±0.2% f.s.

within
±0.2% f.s.

-

-

-

Accuracy for
operation

-

-

within ±0.01% rh

within ±0.01%

within ±0.01%

Accuracy for
indication

0.2% F.S.
±1 digit

0.2% F.S. ±1 digit

1% rh ± 1 digit

0.1% ± 1 digit

within 1%

Sampling time

about 4 seconds

Detecting element

Pt 100 Ω

Pt 100 Ω

-

-

-

Output

0 to 50°C /
0 to1 VDC

-

0 to 100% rh /
0 to 1 VDC

-

-

Output impedance

500 Ω

-

500 Ω

-

-

Air-flow speed

more than 3 m/s at an outlet
of air-flow

-

-

-

Ambient

Temperature: 0 to 50°C (no freezing of wet bulb) Humidity: no condensing

Power requirements

100 VAC ± 10% 50/60 Hz (Power consumptio 100 VAC 0.1A)

ขนาด

Indicator: (W) 311 x (H) 192.5 x (D) 144 mm (4.5Kg)
Detector: (W) 80 x (H) 264 x (D) 110 mm (1.5Kg)

อุปกรณ์มาตรฐาน

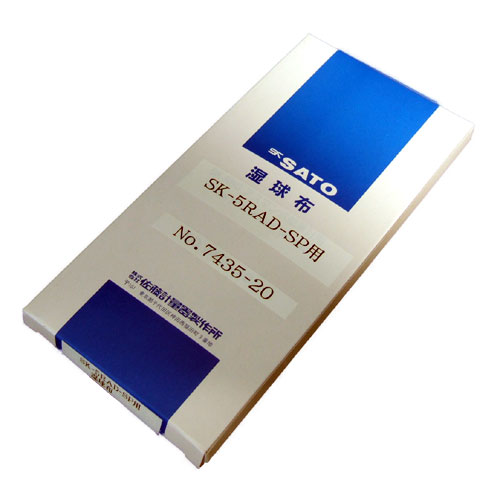

2 m power cord x 1, wick x 20,
10 m remote cord x 1 (up to 50 m available at option), water supply bottle x 1
