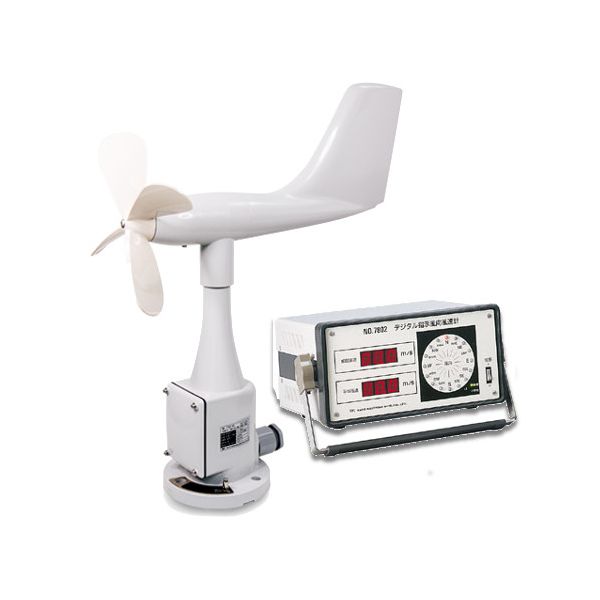

SK Sato SK-7802-00 Digital Wind Speed and Direction Indicator

Digital indicating wind systems consist of a rugged sensor and an attractive console indicator that both wind speed and directions canbe read simultaneously. Suitable for general metrological purposes, in construction sites or for high-rise buildings.

Specifications

Wind Speed and Direction Sensor
Wind Direction	Aeroplane type counterbalanced tail, Potentiometer
Wind Speed	Generated by 4 blade propeller Starting speed: 2 m/s Withstand speed: 90 m/s
Measuring Range	Wind direction: 0 to 540º Wind speed: 2 to 70 m/s
Output Voltage:	Wind direction: 0 to 5 VDC / 0 to 540º (540º = N.E.S.W.N.E.S) Wind speed: 0 to 5 VDC / 2 to 70 m/s
Power Supply	12VDC ±5% (consumption: 10mACD max.)
Demensions	510 (W) × 600 (H) mm
Weight	3kg
Wind Speed and Direction Indicator
Input Voltage	Wind direction: 0 to 5 VDC / 0 to 540º
Output Voltage	Instant/Mean Wind direction: 0 to 10 mV, 0 to 1 V / 0 to 540º (Instant or mean selected by switch) Instant/Mean Wind speed: 0 to 10 mV, 0 to 1 V / 0 to 70 m/s (Instant and mean signals output simultaneously)
Display	Wind direction: 16 cardinal points, LED (dot display) Wind speed: 3 digits, LED (7 segments)
Accuracy	Wind direction: Within ±5º Wind speed: Within ±0.5 m/sec. at less than 10 m/s, Within ±5% at more than 10 m/s
Measuring System	Instant and mean (CR integration t = 120 sec.)
Power Requirement	100 VAC ±10% 50/60 Hz (Other voltage is available)
Power Consumption	100 mA max.
Operating Ambient	0 to 40ºC 30 to 85% RH (no condensing) Atmosphere of approx. 1,013 hPa, free from corrosive gas.
Storage Temperature	-10 to 70ºC
Dimensions	263 (W) × 136 (H) × 239 (D) mm
Weight	3.5 kg

Wind speed and direction sensor

Wind Speed and Direction Indicator

More Information

SKU	SK-7802-00
Weight	6500.000000
Dimension	263 x 136 x 239
Manufacturer	SK Sato
Data logger	No
Temp & Humid measurement	with Temp & Humid
Airflow calculation	No
Anemometer range	2 to 70m/s (min. scale 1 m/s)
Other Function	No
Power Supply	100 VAC (50/60 Hz)
Resolution	1m/s
Water resistance	No
Sensor Output Interface	No
Accuracy	±0.5m/s below 10m/s
