SK Sato SK-8140 Small Spot Infrared Thermometer

SKU
SK-8140

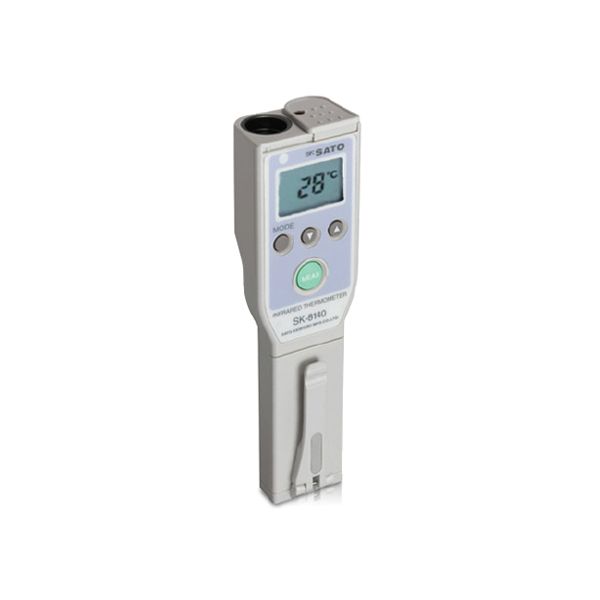

main product photo
฿22,700.00
In stock

Cat.No.8214-00
Dual-Point Laser Marker for focused small spot
Wide Measuring Range: -50 to 500ºC
Selectable ºC and ºF
Water Resistance IPX4
skSATO, Japan

Add to Compare
Categories: Infrared Thermometer, SK Sato
SK Sato

SK SATO SK-8140 Dual-Point Laser Marker Infrared Thermometer

  • Dual point laser for measuring small spot for easy and accurate measurement
  • Adjustable emissivity
  • Waterproof property of IP X 4: No adverse effects of water splashes
  • Alarm function
  • PEAK(max) and VALLEY(min) function
  • Wide measuring range: -50 to 500°C
  • Auto backlight, auto power-off
  • Selectable °C and °F
Name Dual Point Marker Infrared Thermometer
Cat. No. 8214-00
Model SK-8140
Measuring Range -50 to 500°C
Accuracy
(emissivity: 0.95 in 18 to 28°C)		 ±1% rdg. at above 200°C
±2°C at 1 to 199°C
±5°C at below 0°C
Temperature Drift
(emissivity: 0.95)		 less than ±0.1%/°C rdg. at above 200°C
±0.2°C /°C at below 200°C
Repeatability less than 1°C at above 30°C (emissivity at 0.95 in 18 to 28°C)
Response Time approx. 1.5 second (90% response)
Emissivity Adjustable from 0.10 to 1.00 in 0.01 steps
Distance Coefficient Measuring distance: approx. 27mm Spot size: ø2.5mm
Detector Thermopile
Wavelength 8 to 14μm
Targeting System Dual Point Laser Marker
Wavelength: 650nm
Laser output: less than 1mW(Class II Laser)
Functions Auto power-off, Auto backlight
High and low temperature alarm
PEAK/VALLEY selectable mode (*1)
Operating Ambient 0 to 50°C for temperature
Less than 85% rh for humidity (no condensing)
Waterproof property JIS C 0920 equivalent to IPX4
Power requirement 3VDC : “AA” (LR6) size Alkaline battery × 2
Consumption current: 120 mA
Battery life approx. 16 hours with use of laser and new Alkaline batteries
Dimensions (W) 44 × (H) 152 × (D) 27.5 mm
Weight approx. 140g (including batteries)
Materials Main body: Polycarbonate
Lens: Silicon
Accessories Neck strap, “AA” (LR6) size Alkaline battery × 2

(*1) PEAK: The highest temperature value during continuous measurement mode.
VALLEY: The lowest temperature value during continuous measurement mode.

The SK-8140 Infrared Thermometer is designed to measure temperature of a small spot, marked by two laser beams focused. The size of measurable spot is ø2.5 mm targeted from about 27 mm away. Two laser beams to indicate the measurement spot

Lasers & Sensing Area

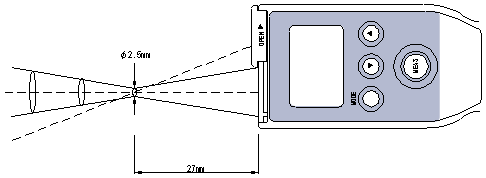

Laser Spot & Distance

Small Spot
SKUSK-8140
Weight140.000000
Dimension44 x 152 x 27.5 mm.
ManufacturerSK Sato
Data loggerNo
Accuracy

±1% rdg. at above 200°C
±2°C at 1 to 199°C
±5°C at below 0°C

(IR) EmissivityAdjustable
Emissivity0.10-1.00 adjustable
Distance:Spot27:2.5
Other FunctionNo
Power SupplyBattery AA x 2
Resolution1°C
Water resistanceIPX4
Temperature Range-50 to 500 ° C
Your Rating

Accessories Included:

  • SK-8140
  • Nech strap
  • AA (LR6) size Alkaline battery x 2
