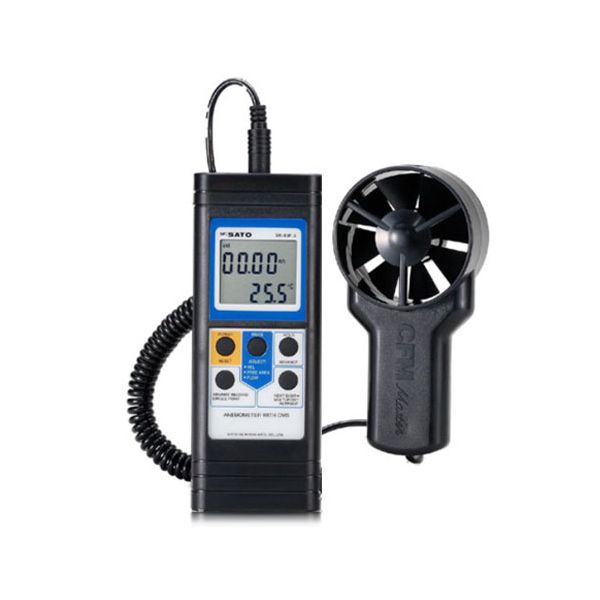

SK Sato SK-93F-II Vane Type Anemometer

skSATO SK-93F-II Vane Type Anemometer

Wind run, wind velocity and air temperature can be measured and min., max. and mean values of each element are also displayed. RS-232C (option) output is equipped. Supplied a handy carrying case.

Features

The main body and probe are interchangeably used. Accuracy is not affected even if the probe is replaced with new ones.
Wind run can be detected. By inputting and setting the section area of measurement, the wind run is calculated base on the measured wind velocity value.
The mean, min. and max. of wind velocity, wind run and temperature are displayed.
The measured values can be monitored with your PC in real time by using the dedicated RS-232C cable (option).
Auto power-off function is equipped. If the unit is not operated for approx. 15 min., the power will be turned off automatically. This function conserves battery power if you forgot to turn the power off.

Specifications

Cat.No.	7687-10
Measuring Range	Wind velocityd: 0.7 to 25.00m/s
	Wind run: 0.01 to 99.00m³/sec.
	Temperature: -10 to 50°C
Accuracy	Wind velocity: ± (5% rdg + 0.5) m/s
	Wind run: Measurement accuracy + operational error
	Temperature: ±1°C
Resolution	Wind velocity: 0.01m/s
	Wind run: 0.01m³/sec
	Temperature: ±1°C
Display sampling	approx. 1 sec.
Sensing elements	Wind velocity (wind run): rotation detection by vane (propeller) Temperature: thermistor
Operation ambient	Main body: 0 to 50°C Probe: -10 to 60°C
Storage ambient	-20 to 60°C
Power requirement	9VDC (6F22 (006P)) battery x 1 pc.
Battery life	approx. 100 hours (without RS-232C output)
Dimension	Main unit: 71(W) x 181(H) x 38mm(D) Vane: dia. 70 mm Cord length: approx. 0.5m
Weight	approx. 0.36kg (including battery)
Accessories	9VDC (6F22 (006P)) battery x 1 pc. Carrying case
Option	AC adapter (No.7687-52) RS-232C cable (No.7687-90)

More Information

SKU	SK-93F-II
Weight	360.000000
Dimension	71(W) x 181(H) x 38mm(D)
Manufacturer	SK Sato
Data logger	No
Temp & Humid measurement	with Temperature
Airflow calculation	Yes
Anemometer range	0.7 to 25.00m/s
Other Function	The mean, min. and max. of wind velocity, wind run and temperature are displayed. Auto power-off function
Power Supply	9VDC (6F22 (006P)) battery x 1 pc.
Resolution	Wind velocity: 0.01m/s, Wind run: 0.01m3/sec, Temperature: ±1°C
Water resistance	No
Sensor Output Interface	No
Accuracy	Wind velocity: ± (5% rdg + 0.5) m/s Wind run: Measurement accuracy + operational error Temperature: ±1°C
