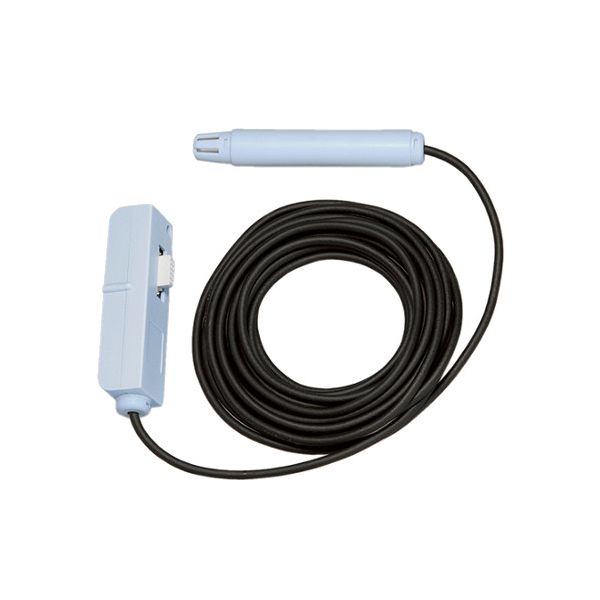

skSATO SK-RHCS-2 With Sensor Cord Type Probe for SK-RHC series Transmitters

SKU

SK-RHCS-2

Skip to the end of the images gallery

main product photo

Skip to the beginning of the images gallery

฿12,100.00

Pre-Order 30-45 days

Out of stock

Cat.No.8922-00
Measuring range:
Temperature : -10 to 60.0°C
Humidity : 20.0 to 95.0%rh
Temperature sensor: Thermistor
Humidity sensor: High polymer electrical resistance change type
skSATO, Japan

Categories: Probe for SK SATO Thermometers, SK Sato, Type-5 have stock

skSATO SK-RHCS-2 With sensor cord type probe for SK-RHC series Transmitters

Specifications

Probe Type	With sensor cord type
Cat. No.	8922-00
Model	SK-RHCS-2
JAN code No.	49 74425 89229 7
Temperature sensor	Thermistor
Humidity sensor	High polymer electrical resistance change type
Measuring range	Temperature -10 to 60°C Humidity : 20.0 to 95.0%rh(at 23°C)
Dimensions	(W)29 x (H)107 x (D)24mm
Weight	228g
Cord	5m
Materials	Main body and apical part: ABS resin Cord: PVC resin
Accessory	Test result

SK-RHC Specifications

Output		Voltage (0 - 1V)	Voltage (0 - 100mV)	Current (4 - 20mA)	Digital (RS-485)
Cat. No.		8920-01	8920-02	8920-03	8920-04
Model		SK-RHC-V	SK-RHC-V	SK-RHC-I	SK-RHC-C
Measuring range		Depends on the probe connected
Display range		Temperature : -15 to 65.0°C Humidity : 5 to 99.9%rh
Measuring Accuracy		Depends on the probe connected
Output accuracy		Temperature :±0.3°C Humidity:±0.3%rh		Temperature :±1.0°C Humidity :±1.0%rh	—
Resolution		Temperature: 0.1°C (at higher than -9.9°C) 1°C (at other range) Humidity: 0.1%rh (at higher than 15%rh) 1%rh(at other range)
Display accuracy		Temperature :±(0.1+1digit)°C Humidity :±(0.1+1digit)%rh
Output	Temperature	-10 to 60°C / -100mV to 600mV	-10 to 60°C / -10mV to 60mV	-15 to 65°C / 4 to 20mA	—
	Humidity	0 to 100%rh / 0 to 1000mV	0 to 100%rh / 0 to 100mV	0 to 100%rh / 4 to 20mA	—
	Output Impedance	500Ω		—
	RS-485	—			Bit/sec: 9600 Data bit: 8 Stop bit: 1 Parity check: non
Power requirement		12 to 24VDC or AC adapter (9VDC / 500mA)
Functions		Upper/lower limit output (relay contact) (Max. rate of alarm output: Voltage resistance: 48VAC/DC continuous load current: 1A) Sampling( switchable at 1 sec. and 10 sec.)
Materials		Main body: ABS resin ,Display: Acryl resin
Dimensions/Weight		118(W) x 100(H) x 42(D)mm, approx. 220g
Accessories		One fixing screw to fasten the probe

More Information

SKU	SK-RHCS-2
Weight	228.000000
Dimension	(W)29 x (H)107 x (D)24mm
Manufacturer	SK Sato
Data logger	No
Humidity measurement range	20.0 to 95.0%RH
Temperature measurement range	-10 to 60ºC
Dew Point measurement	No
Alarm Function	Humidity setpoint alarm, Temperature setpoint alarm
Heat Index & WBGT measurement	No
Other Function	Upper/lower limit output (relay contact) (Max. rate of alarm output: Voltage resistance: 48VAC/DC continuous load current: 1A) Sampling( switchable at 1 sec. and 10 sec.)
Power Supply	-
Resolution	Temperature: 0.1°C (at higher than -9.9°C) 1°C (at other range) , Humidity: 0.1%rh (at higher than 15%rh) 1%rh(at other range)
Sensor Output Interface	No
Accuracy	Temperature :±0.3°C Humidity:±0.3%rh
