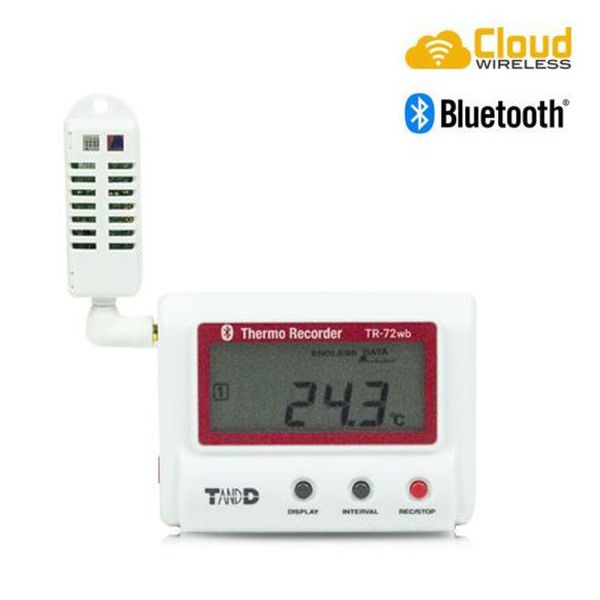

T&D TR-72wb Temp & Humidity Logger (Cloud Network) | Bluetooth® & Wireless LAN | LEGATOOL

T&D TR-72wb Temp & Humidity Logger (Cloud Network) | Bluetooth® & Wireless LAN

Wireless Temperature & Humidity recorder (Temperature 1ch, Humidity 1ch), measurement range: temperature 0 to 55°C and humidity 10 to 95%RH.
TR-72wb wireless communication via WiFi and Bluetooth to connect with the smartphone or tablet to make settings, view recorded data or access to T&D WebStorage. Easy access to your important temperature and humidity data from anywhere at anytime via T&D WebStorage Cloud Service

Applications via Smartphone, Tablet

T&D TR-72wb Temp & Humidity Logger (Cloud Network) | Bluetooth® & Wireless LAN

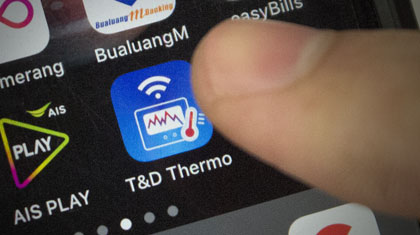

Must download application to use for iOS or Android, just search "T&D Thermo" and download, open the app to auto-search for nearby loggers. The T&D Thermo is design for communication via the Temperature & Humidity Recorder to check your data and make all necessary settings or sending and storing to T&D WebStorage Service.
Application Features

Start and Stop recording by remote
Download and view data recorded via wireless communication directly
Access to your data in "T&D WebStorage Service"

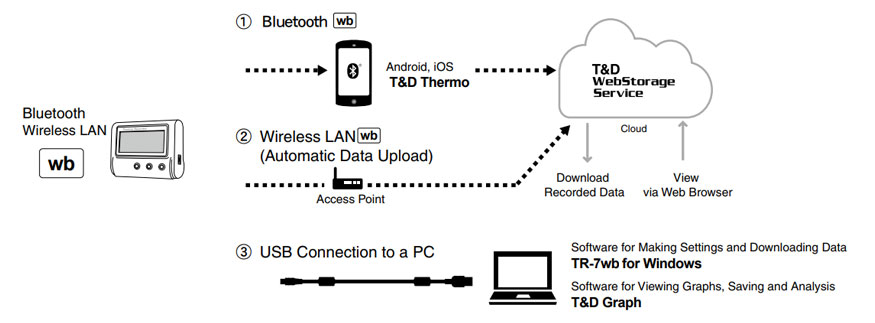

The picture shows how to connect with Wireless, LAN Bluetooth, USB connection

Automatic Data Upload via Wireless LAN

Specifications

Measurement Channels	■ Temperature 1ch (Thermistor) ■ Humidity 1ch (Polymer Resistance)
Range	■ Temperature: 0 to 55 °C ■ Humidity: 10 to 95 %RH
Resolution	■ Temperature: 0.1 °C ■ Humidity: 1 %RH
Accuracy	■ Temperature: ±0.5°C ■ Humidity: ±5 %RH (at 25°C, 50%RH)
Responsiveness	Response Time (90%): Approx. 7 min.
Logging Capacity	8,000 data sets (One data set consists of readings for all channels in that type of unit)
Recording Interval	Select from 15 choices: 1, 2, 5, 10, 15, 20, 30 sec. or 1, 2, 5, 10, 15, 20, 30, 60 min.
Auto-upload Interval	Select from 15 choices: OFF (No auto-upload), 1, 2, 5, 10, 15, 20, 30 min. or 1, 2, 3, 4, 6, 12, 24 hrs.
Operating Environment	Temperature: -10 to 60°C Humidity: 90%RH or less (no condensation)
Power requirement	Battery: AA Alkaline x 2 External: USB Bus 5V 200mA, AC Adaptor AD-05A2 or AD-05C2
Dimensions/ Weight	H58 x W78 x D26 mm./ 55g
Accessories Included	■ Main unit: TR-72wb ■ Temperature-Humidity Sensor: THA-3001 ■ AA Alkaline Battery LR6 x 2 ■ Registration Code Label ■ USB Mini-B Cable US-15C ■ Manual Set (Warranty Included)

More Information

SKU	TR-72wb
Weight	55.000000
Dimension	58 x 78 x 26 mm
Manufacturer	TND
Data logger	Yes
Humidity measurement range	10 to 95%RH
Temperature measurement range	0 to 55ºC
Dew Point measurement	No
Alarm Function	Humidity setpoint alarm, Temperature setpoint alarm
Heat Index & WBGT measurement	No
Other Function	■ Application support Smartphone, Tablet ■ WiFi, Bluetooth, USB Communication Support ■ T&D WebStorage Cloud Service ■ Record settings ■ Warning settings
Power Supply	Battery: AA Alkaline x 2
Resolution	0.1°C 1%RH
Sensor Output Interface	No
Accuracy	■ Temperature: ±0.5°C ■ Humidity: ±5 %RH (at 25°C, 50%RH)
