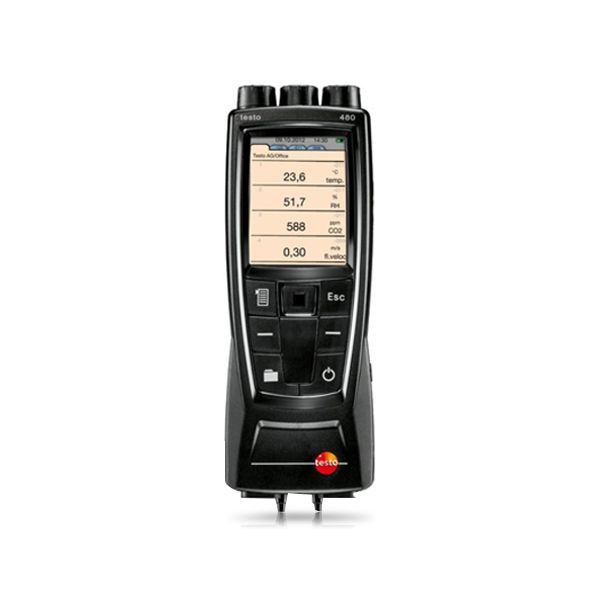

Testo-480 Digital Temp, Humid, and Air flow meter

SKU
Testo-480
฿61,340.00
Pre-Order 30-45 days
Out of stock

เครื่องวัดความเร็วลมอเนกประสงค์ Digital Temp, Humid, and Air flow meter
No. 0563 4800
สามารถวัด air flow, temperature, humidity, pressure, degree of turbulence, heat radiation, CO2, illumination intensity, PMV/PPD และ WBGT
ยี่ห้อ Testo,Germany
**ราคาเฉพาะตัวเครื่องไม่รวมโพรบ**

Testo-480 เครื่องวัดความเร็วลม

Order no. 0563-4800

สามารถวัด air flow, temperature, humidity, pressure, degree of turbulence, heat radiation, CO2, illumination intensity, PMV/PPD และ WBGT

Differential pressure, integrated

  • ช่วงการวัด -100 ถึง 100 hPa
  • Accuracy
    • ±(0.3 Pa +1% of m.v.) (0 to +25 hPa)
    • ±(0.1 hPa + 1.5% of m.v.) (+25.001 to +100 hPa)
  • Resolution 0.001 hPa

Absolute pressure, integrated and external

  • ช่วงการวัด 700 ถึง 1100 hPa
  • Resolution 0.1 hPa
  • Accuracy ±3 hPa

Type K (NiCr-Ni)

  • ช่วงการวัด -200 ถึง 1370 °C
  • Resolution 0.1 °C
  • Accuracy ±(0.3 °C +0.1% of m.v.)

Radiation temperature, globe

  • ช่วงการวัด 0 ถึง 120 °C
  • Resolution 0.1 °C

Pt100

  • ช่วงการวัด -100 ถึง 400 °C
  • Resolution 0.01 °C

Vane, 16 mm

  • ช่วงการวัด 0.6 ถึง 50 m/s
  • Resolution 0.1 m/s

Vane, 100 mm

  • ช่วงการวัด 0.1 ถึง 15 m/s
  • Resolution 0.01 m/s

Hot wire, Hot bulb

  • ช่วงการวัด 0 ถึง 20 m/s
  • Resolution 0.01 m/s

Comfort probe

  • ช่วงการวัด 0.1 ถึง 15 m/s
  • Resolution 0.01 m/s

Testo humid. sensor, cap.

  • ช่วงการวัด 0 ถึง 100 %RH
  • Resolution 0.1 %RH

CO2

  • ช่วงการวัด 0 ถึง 10000 ppm CO2
  • Resolution 1 ppm CO2

Lux

  • ช่วงการวัด 0 ถึง 100000 Lux
  • Resolution 1 Lux

แสดงผลหน้าจอ Colour graphic display
ฟังก์ชั่น Data memory 1.8 GB (บันทึกข้อมูล 60,000,000 ค่า)
แบตเตอรี่  Rechargeable (อายุการใช้งานแบตเตอรี่สูงสุด 17 ชั่วโมง)
ขนาดตัวเครื่อง  81 x 235 x 39 mm (435g)
อุปกรณ์มาตรฐาน ตัวเครื่อง, Easy Climate software, Power supply, สาย USB cable, Calibration protocol
 **ราคาเฉพาะตัวเครื่องไม่รวมโพรบ**
ยี่ห้อ Testo , Germany

Testo 480 digital temperature, humidity and air flow meter Testo 480 digital temperature, humidity and air flow meter
SKUTesto-480
Weight435.000000
Dimension81 x 235 x 39mm
ManufacturerTesto
Data loggerYes
Temp & Humid measurementwith Temp & Humid
Airflow calculationNo
Anemometer range0.6 to 50 m/s
Other Function

flow velocity

temperature

humidity

pressure

light intensity

radiant heat

degree of turbulence

CO2

PMV/PPD

WBGT index

Power SupplyRechargeable
Resolution0.1 m/s
Water resistanceNo
Sensor Output InterfaceNo
Accuracy-
Your Rating

PDF Download Catalog

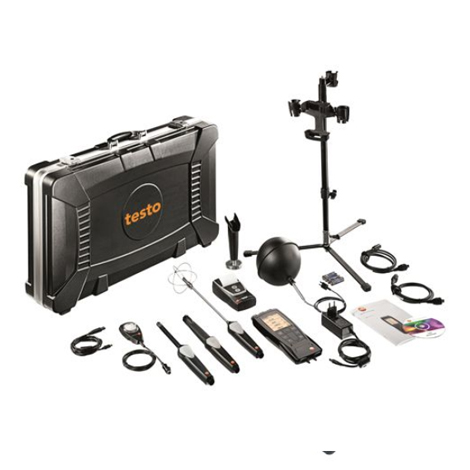

อุปกรณ์มาตรฐาน

  • ตัวเครื่อง
  • Easy Climate software
  • Power supply
  • สาย USB cable
  • Calibration protocol

อุปกรณ์เสริม ( แยกจำหน่าย )

Digital flow velocity probes

0635 9542 Vane measurement probe Ø 16 mm with telescope (scaling max. 960 mm) and integrated measurement button*
0635 9552 High-temperature vane measurement probe Ø 16 mm with telescope (scaling max. 960 mm) and integrated measurement button*
0635 1543 Thermal flow velocity probe (hot wire) Ø 10 mm, bendable by 90° (200 mm) with telescope (scaling max. 1100 mm) and integrated measurement button*
0635 1024 Thermal flow velocity probe (hot wire) Ø 7.5 mm, with telescope (max. 820 mm) and fixed plug-in head cable
0635 1050 Thermal flow velocity probe (robust hot bulb) Ø 3 mm, with telescope, (max. 860 mm) and fixed plug-in head cable, for directionindependent flow velocity measurement
0635 9343 Vane measurement probe Ø 100 mm, for measurements on ventilation outlets*
0635 1048 Thermal flow velocity probe (hot wire) Ø 10 mm, with telescope, (max. 730 mm) and fixed plug-in head cable, for the measurement of air flow velocity in laboratory extractors according to EN 14175-3/-4



Digital comfort probes

0636 9743 Humidity and temperature probe Ø 12 mm, highly accurate humidity measurement with 1% accuracy*
0632 1543 IAQ probe for analyzing Indoor Air Quality, CO2, humidity, temperature and absolute pressure measurement, incl. table tripod*
0628 0143 Comfort probe for degree of turbulence measurement according to EN 13779*
0602 0743 Globe probe Ø 150mm, TC Type K, for measuring radiant heat
0635 0543 Lux probe for measuring light intensity
0635 8888 WBGT set (Wet Bulb Globe Temperature) for the evaluation of heat workplaces affected by heat, based on ISO 7243 / DIN 33403-3, consisting of globe, ambient temperature and wet bulb temperature probes, plug-in head cables, tripod and case



Digital humidity probe

0636 9753 Robust humidity probe



Digital temperature probes

0614 0072 Digital precision air probe, Pt100, Plug-in head cable required (Order no. 0430 0100)
0614 0195 Fast-reaction digital surface probe with sprung thermocouple Type K, short-term up to +500 °C, Plug-in head cable required (Order no. 0430 0100)
0614 0275 Highly precise digital immersion/penetration probe, Pt100, Plug-in head cable required (Order no. 0430 0100)
0614 0071 Flexible digital precision penetration probe, PTFE cable heat-proof to +300 °C, Plug-in head cable required (Order no. 0430 0100)
0614 0073 High-precision Pt100 immersion and penetration probe, Plug-in head cable required (order no. 0430 0100)



Analog temperature probes

0602 1793 Robust air probe, T/C Type K, Fixed cable
0602 0393 Fast-action surface probe with sprung thermocouple strip, also for uneven surfaces, measurement range short-term to +500°C, TC Type K, Fixed cable
0602 0193 Fast-reaction paddle surface probe, for measurements in inaccessible places, e.g. narrow apertures and slots, TC Type K, Fixed cable
0602 0693 Efficient, waterproof surface probe with small measurement head for flat surfaces, TC Type K, Fixed cable
0602 0993 Fast-action surface probe with sprung thermocouple strip, bent, also for uneven surfaces, measurement range short-term to +500°C, TC Type K, Fixed cable
0602 2394 Flat head surface probe with telescopic handle max. 680 mm for measurements at hard-to-access points, TC Type K, Fixed cable 1.6 m (correspondingly shorter when telescope extended)
0602 4792 Magnetic probe, adhesive force approx. 20 N, with magnets, for measurements on metal surfaces, TC Type K, Fixed cable
0602 4892 Magnetic probe, adhesive force approx. 10 N, with magnets, for higher temp., for measurements on metal surfaces, TC Type K, Fixed cable
0602 1993 Waterproof surface probe with widened measurement tip for flat surfaces, T/C Type K, Fixed cable
0628 0020 Pipe wrap probe with velcro strip; for temperature measurement on pipes with diameter up to max. 120 mm; Tmax. +120 °C; TC Type K , Fixed cable
0602 4592 Pipe wrap probe for pipe diameter 5 to 65 mm, with exchangeable measuring head. Meas. range short-term up to +280°C, TC Type K, Fixed cable
0602 0092 Spare meas. head for pipe wrap probe, TC Type K
0602 4692 Clamp probe for measurements on pipes, pipe diameter 15 to 25 mm (max. 1"), meas. range short-term up to +130°C, TC Type K, Fixed cable
0602 0593 Efficient and fast-action immersion probe, waterproof, TC Type K, Fixed cable
0602 2693 Fast-action, waterproof immersion/penetration probe, TC Type K, Fixed cable
0602 5792 Immersion tip, flexible, TC Type K
0602 5793 Immersion tip, flexible, TC Type K
0602 5693 Immersion measurement tip, flexible, for measurements in air/exhaust gases (not suitable for measurements in smelters), TC Type K
0602 1293 Waterproof immersion/penetration probe, TC Type K, Fixed cable
0602 0493 Flexible, low-mass immersion measurement tip, ideal for measurements in small volumes such as petri dishes, or for surface measurements (e.g. attached with adhesive tape), TC Type K, 2 m, FEP insulated thermal wire, temperature proof up to 200 °C, oval wire with dimensions: 2.2 mm x 1.4 mm
0602 2292 Waterproof food probe made of stainless steel (IP65), TC Type K, Fixed cable



Thermocouples

0602 0644 Thermocouple with TC adapter, flexible, 800 mm long, fibre glass, TC Type K
0602 0645 Thermocouple with TC adapter, flexible, length 1500 mm , fibreglass, TC Type K
0602 0646 Thermocouple with TC adapter, flexible, 1500 mm long, PTFE, TC Type K



Pitot tubes

0635 2045 Pitot tube, 500 mm long, Ø 7 mm, stainless steel, for measuring flow velocity*
0635 2145 Pitot tube, 350 mm long, Ø 7 mm, stainless steel, for measuring flow velocity*
0635 2345 Pitot tube, 1000 mm long, stainless steel, for measuring flow velocity*
0635 2043 Straight pitot tube with integrated temperature measurement, incl. connection hose, length 360 mm
0635 2143 Straight pitot tube with integrated temperature measurement, incl. connection hose, length 500 mm
0635 2243 Straight pitot tube with integrated temperature measurement, incl. connection hose, length 1000 mm



Other

0430 0946

Telescope for digital probes, with ball joint and probe bracket, length 1.8 m. Use 5 m plug-in head cable (order no. 0430 0101)

0554 0743

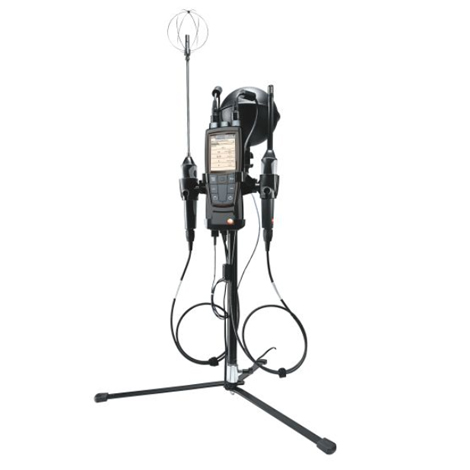

Tripod for workplace evaluation With holders for hand-held instrument and probe. Can also be used as telescope extension

0430 0100

Plug-in head cable for digital probes

0430 0101

Plug-in head cable for digital probes, length 5 m

0554 0410 testovent 410, volume flow funnel, Ø 340 mm/330x330 mm, incl. case
0554 0415 testovent 415, volume flow funnel, Ø 210 mm/210x210 mm, incl. case
0563 4170 testovent 417 funnel set for plate outlets (Ø 200 mm) and funnel for ventilator (330 x 330 mm) for ingoing and outgoing air

0554 4172

Flow straightener testovent 417

0554 0660

Control and adjustment set for Testo humidity probes, salt solution with 11.3% RH and 75.3% RH, incl. adapter for Testo humidity probes

0554 0440

Connection hose; silicone; 5 m long; max. load 700 hPa (mbar)

0554 0453 Connection hose silicone-free for differential pressure measurement, length 5 m, load up to maximum 700 hPa, (mbar)
0516 0481 Soft case testo 480 incl. carrying strap
0516 4801 System case for comfort level measurement For instrument, probes and other accessories
0516 4800 System case for HVAC measurements, For instrument, probes and other accessories
0554 0549 Testo fast printer IrDA with wireless infrared interface; 1 roll thermal paper; 4 AA batteries for printing out measurements on site
0554 0568 Spare thermal paper for printer (6 rolls), permanent ink, measurement data documentation legible for up to 10 years
