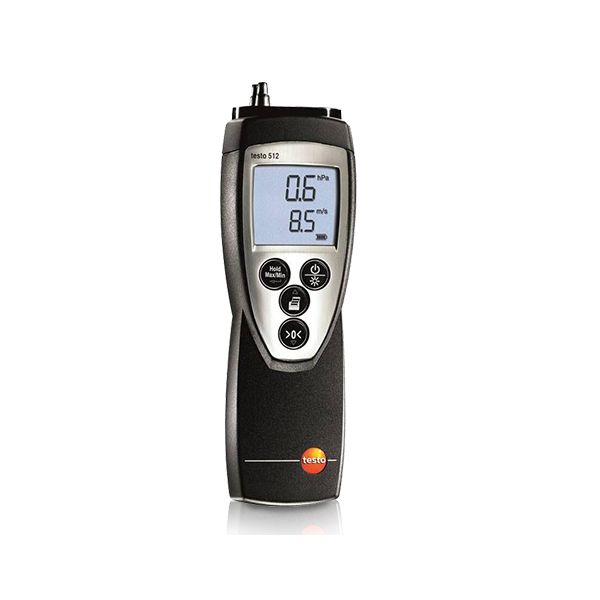

Testo-512-1 Differential pressure meter (2 hPa)

Testo-512-1 Differential pressure meter

Testo-512-1 Differential pressure meter simultaneously shows pressure and flow velocity in the large, easily legible, illuminated display. Testo 512-1 has two switchable units for flow velocity, and for pressure, eight units can even be set. The actual value displayed can be frozen in the display with the Hold-button, and the Min., Max values can be displayed and stored in the instrument.

SPECIFICATION

No.	0560 5126
Measuring range	0 to 2 hPa, 2 to 17.5 m/s, 395 to 3445 fpm
Accuracy ±1 digit	0.5% of fsv
Resolution	0.001 hPa, 0.1 m/s, 0.1 fpm
Overload	±10 hPa
Measuring medium	All non-corrosive gases
Measuring units	8 pressure: kPa, hPa, Pa, mm H2O, mmHg, psi, inch H2O, inch Hg
Power requirement	Battery 9V
Dimension / Weight	202 x 57 x 42 mm / 300 g

More Information

SKU	Testo-512
Weight	300.000000
Dimension	202 x 57 x 42mm
Manufacturer	Testo
Data logger	No
Type of Pressure	Absolute Pressure
Resolution	0.001 hPa 0.1 m/s 0.1 fpm
Measurement Range	0 to 2 hPa 2 to 17.5 m/s 395 to 3445 fpm
Other Function	No
Power Supply	Battery 9V
Water resistance	No
Sensor Output Interface	No
Accuracy	±0.5% of fsv
