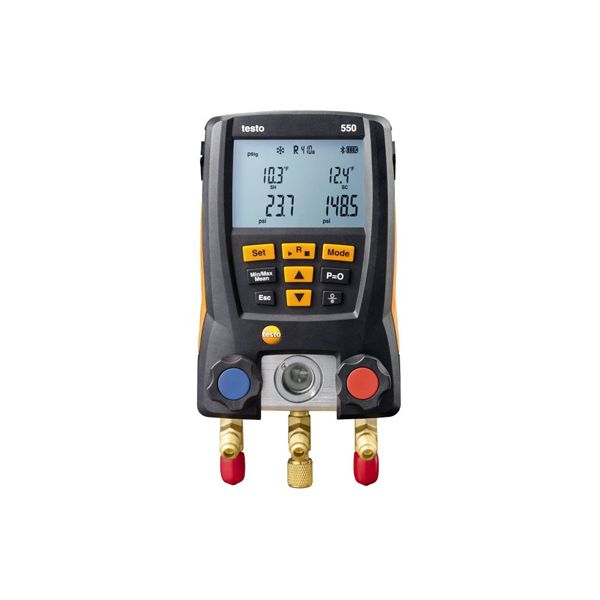

Testo-550-Set Digital Manifold Gauges HVAC (Bluetooth)

No. 0563 1550

Testo-550-Set Digital Manifold Gauges HVAC (Bluetooth) The more rugged housing includes a metal frame around the display which protects the new testo550
from impact. Now with 60 refrigerant profiles and added functionality of leak tests, Testo manifolds are versatile enough to be the tool for every job

Technical Data Testo-550-Set Digital Manifold Gauges HVAC (Bluetooth)
Temperature
Measuring range	-50 to 150 °C
Accuracy	±0.5 °C
Resolution	0.1 °C
Connection	2 x Plug-in (NTC)
Pressure measurement
Measuring range	-1 to 60 bar
Accuracy	±0.5 % fs
Resolution	0.01 bar
Connection	1/4“
Overload	65 bar
Vacuum measurement
Measuring range	-1 to 0 bar
General technical data
Dimensions	220 x 125 x 70 mm
Operating temperature	-20 to 50 °C
Protection class	IP42
Battery life	250 h (less with use of Bluetooth, backlight or vacuum)
Refrigerants in instrument	60 profiles: R11, R12, R123, R1234yf, R1234ze, R125, R13B1, R134a, R14, R142B, R152a, R161, R22, R227, R23, R290, R32, R401A, R401B, R401C, R402A, R402B, R404A, R406A, R407A, R407B, R407C, R407D, R407F, R408A, R409A, R410A, R411A, R412A, R413A, R414B, R416A, R417A, R420A, R421A, R421B, R422A, R422B, R422C, R422D, R424A, R426A, R427A, R434A, R437A, R438A, R502, R503, R507, R508A, R508B, R600, R600a, R744 (CO2), R718 (H2O), update via App
System requirements	requires iOS 7.1 or newer; requires Android 4.3 or newer; requires mobile end device with Bluetooth 4.0
Storage temperature	-20 to 60 °C
Weight	1200 g
