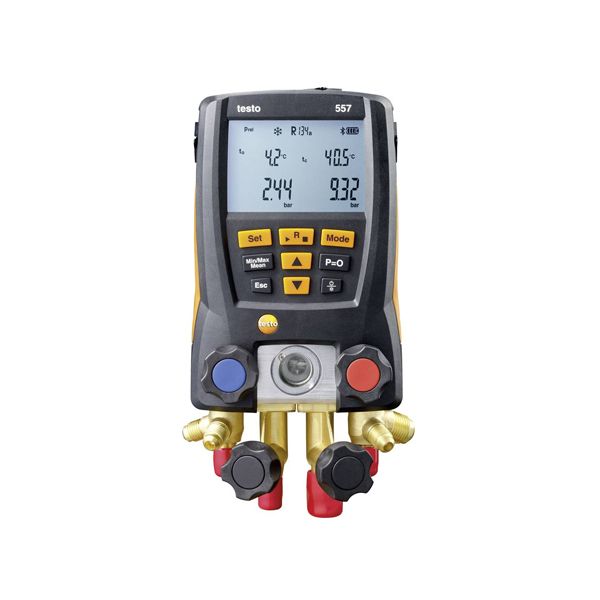

Testo-557-Set Digital Manifold Gauges HVAC (Bluetooth)

No. 0563 1557

The testo-557-Set Digital Manifold Gauges HVAC (Bluetooth), which are required for working on refrigeration systems and heat pumps, in just one instrument: for example superheating/subcooling calculation, vacuum measurement, temperature-compensated leakage test. You can also use a practical app to monitor the manifold via your smartphone/tablet and store the measurement results or send them by e-mail.

Technical Data Testo-557-Set Digital Manifold Gauges HVAC (Bluetooth)
Temperature
Measuring range	-50 to 150 °C
Accuracy	±0.5 °C
Resolution	0.1 °C
Probe connection	2 x Plug-in (NTC)
Pressure measurement
Measuring range	-1 to 60 bar
Accuracy	±0.5 % fs
Resolution	0.01 bar
Probe connection	3 x 7/16" – UNF + 1 x 5/8'' – UNF
Overload rel. (high pressure)	65 bar
Vacuum measurement
Measuring range	0 to 20000 micron
Accuracy	± (10 micron + 10 % of mv) (100 to 1000 micron)
Resolution	1 micron (0 to 1000 micron) 10 micron (1000 to 2000 micron) 100 micron (2000 to 5000 micron) 500 micron (5000 to 10000 micron) 5000 micron (10000 to 20000 micron)
General technical data
Dimensions	220 x 125 x 70 mm
Operating temperature	-20 to 50 °C
Protection class	IP42
Battery life	250 h (without illumination, without Bluetooth®, without vacuum probe)
Pressure media	CFC
Refrigerants in instrument	60 profiles:; R11; R12; R123; R1234yf; R1234ze; R125; R13B1; R134a; R14; R142B; R152A; R161; R22; R227; R23; R290; R32; R401A; R401B; R401C; R402A; R402B; R404A; R406A; R407A; R407B; R407C; R407D; R407F; R408A; R409A; R410A; Ra11A; R412A; R413A; R414B; R416A; R417A; R420A; R421A; R421B; R422A; R422B; R422C; R422D; R424A; R426A; R427A; R434A; R437A; R438A; R502; R503; R507; R508A; R508B; R600; R600a; R744 (CO₂); R718 (H₂O);update via App
System requirements	requires iOS 7.1 or newer; requires Android 4.3 or newer; requires mobile end device with Bluetooth 4.0
Storage temperature	-20 to 60 °C
Weight	1200 g
