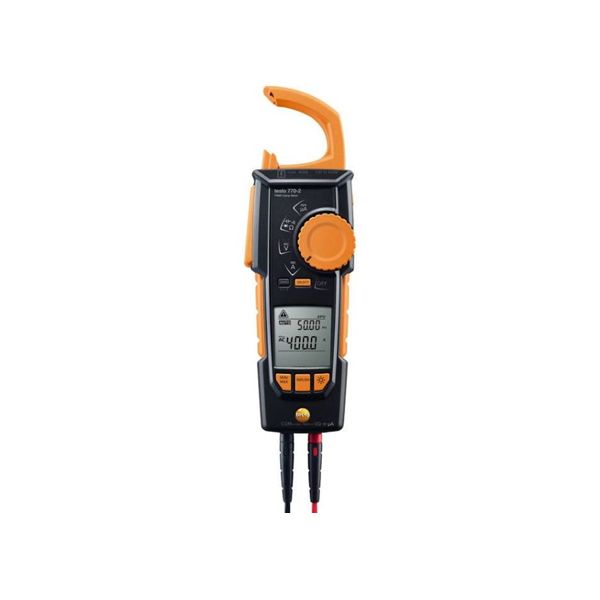

Testo 770-2 Cable-grab Clamp meter

Testo-770-2 Cable-grab Clamp meter

No. 0590 7702

The innovative grab mechanism makes the testo 770-2 the perfect clamp meter for non-contact measurements on tightly packed cables with a small diameter. In addition to the standard functions of the testo 770-1 clamp meter, it also offers a temperature adapter and measures current in the µA range.
CAT IV 600 V / CAT III 1000 V
Dmensions 249 x 96 x 43 mm (378g)
Delivery Scope : testo 770-2 TRMS, including batteries AAA x 3, 1 set of measuring cables and 1 x adapter for type K thermocouples.
Testo , Germany

SPECIFICATION

Technical Data
Measurement parameter	Measuring range	Resolution	Accuracy
Temperature - Type K TC	-20 to 500 °C	0.2 °C	±1 °C (0 to 100 °C)
DC voltage	1 mV to 600 V	1 mV	± (0.8 % of mv + 3 Digit)
AC voltage	1 mV to 600 V	1 mV	± (1.0 % of mv + 3 Digit)
DC current	0.1 μA to 400 A	0.1 μA	± (2 % of mv + 5 Digit)
AC current	0.1 μA to 400 A	0.1 μA	± (2 % of mv + 5 Digit)
Resistance	0.1 Ohm to 40.00 MOhm	0.1 Ohm	± (1.5 % of mv + 3 Digit)
Capcitance	10 nF to 100.0 μF	0.01 nF	± (1.5 % of mv + 5 Digit)
Frequency	0.01 Hz to 9999 kHz	-	± (1.0 % of mv + 1 Digit)

More Information

SKU	Testo-770-2
Weight	378.000000
Dimension	249 x 96 x 43mm
Manufacturer	Testo
Data logger	No
Resolution	AC/DC voltage : 1 mV AC/DC Current : 0.1 μA Resistance : 0.1 Ohm Capcitance : 0.01 nF
Measurement Range	AC/DC voltage : 1 mV to 600 V AC/DC Current : 0.1 μA to 400 A Resistance : 0.1 Ohm to 40.00 MOhm Capcitance : 10 nF to 100.0 μF Frequency : 1 Hz to 10 kHz
Other Function	True RMS Diode test Continuity testing Display ligthing Resistance Capacitance Temperature meas. Frequency Hold / Min / Max CAT IV 600 V / CAT III 1000 V
Power Supply	AAA x 3
Water resistance	No
Sensor Output Interface	No
Accuracy	AC/DC voltage : ± (0.8 % of mv + 3 Digit) AC/DC Current : ± (2 % of mv + 5 Digit) Frequency : ± (1.0 % of mv + 1 Digit) Resistance : ± (1.5 % of mv + 3 Digit) Capcitance : ± (1.5 % of mv + 5 Digit)
