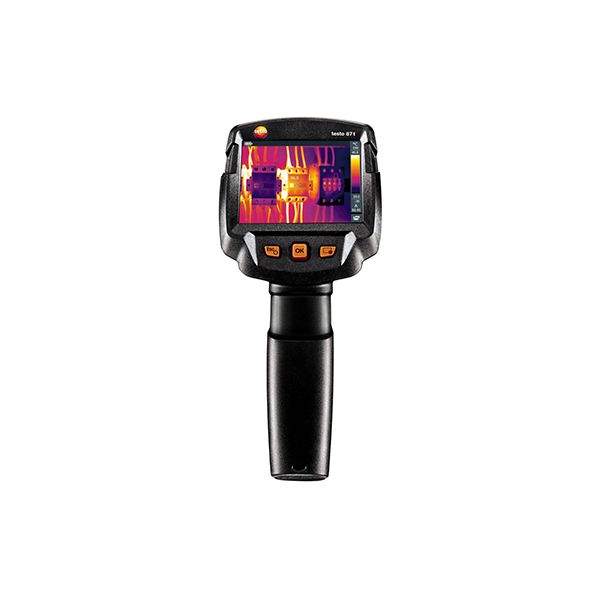

Testo-871 Thermal Imager with App

SKU
Testo-871
Special Price ฿94,050.00 was ฿99,000.00
Pre-Order 30-45 days
Out of stock

No. 0560 8712
Infrared resolution 240 x 180 pixels
(with testo SuperResolution technology 480 x 360 pixels)
Thermal Sensitivity 90 mK
Integrated digital camera
With Testo Thermography App for your smartphone or tablet (iOS and Android)
Wireless measurement data transfer from clamp meter
testo 770-3 and humidity measuring instrument testo 605i
With testo ScaleAssist and testo ε-Assist
include Calibration Protocol
Testo, Germany

Add to Compare

Testo-871 Thermal Imager with App

No. 0560 8712

Product Description
We developed the testo 871 thermal imager together with our experienced professionals to enable you to work quickly and easily with professional thermal imaging technology. You can generate error-free and objectively comparable infrared images using its handy functions. The IFOV warner, testo ɛ-Assist and testo ScaleAssist mean you can avoid measurement errors and not only effortlessly achieve optimum setting of emissivity (ɛ) and reflected temperature (RTC) for building thermography, but also of colour scale.

The testo 871 thermal imager– smart and networked
The testo 871 thermal imager communicates wirelessly via WLAN with your mobile terminal devices. The testo Thermography App for iOS and Android offers you the possibility of writing and sending reports on site, as well as saving them online, and of using your smartphone or tablet as a second display or for remote control.

The testo 871 delivers even more informative thermal images in combination with the compatible 770-3 clamp meter and the testo 605i thermohygrometer. Both are available separately – simply order them straight away along with your testo 871. The measurement results of both measuring instruments can easily be transmitted via Bluetooth. The additional output, current and voltage values of the testo 770-3 clamp meter enable better interpretation of measured temperatures. Measure the air temperature and humidity with the testo 605i and easily detect locations at risk of developing mould using the special humidity palette in the thermal imager via the traffic light principle.

Areas of application of the testo 871 thermal imager
Detect leaks, pinpoint thermal bridges, discover structural defects, identify overheated connections or assess mould damage. The testo 871 thermal imager is ideal for applications in daily maintenance and installation work in trade and industry. Quick, simple and reliable for maintenance and detection of defects.

Technical highlights of the testo 871 thermal imager
Really simple operation with impressive professional thermal imaging technology: the testo 871 thermal imager has the following impressive features:

  • Very good image quality due to high resolution: 43,200 temperature measuring points for precise thermography. Infrared resolution of 240 x 180 pixels – extendible to 480 x 360 pixels via integrated SuperResolution Technology
  • Detecting temperature differences from 0.09°C
  • The testo Thermography App enables you to write reports on site, save them online and send them by e-mail, as well as allowing you to use mobile terminal devices as a second display or for remote control
  • Wireless communication thanks to Bluetooth – this means you can also wirelessly integrate the readings of the compatible testo 770-3 clamp meter and testo 605i thermohygrometer
  • Built-in digital camera generates a real image in parallel to the thermal image
  • Critical temperature conditions are directly displayed via automatic hot-cold spot recognition
  • The testo ScaleAssist automatically ensures optimum setting of the thermal image scale, which means you generate objectively comparable and error-free thermal images, for example of the thermal insulation behaviour of buildings
  • The testo ɛ-Assist ensures the correct measurement result by automatically determining and setting the emissivity and reflected temperature
  • The IFOV warner means the distance from the measurement object / measurement spot size is determined and the measurement spot is shown on the thermal image – you therefore avoid measurement errors because the camera shows you exactly what you can measure
  • Pro software for image evaluation on the PC
  • You can choose to save thermal images as JPEGs
The Testo Thermography App_Photo
 Install the Application for Android_Apple
Install the Application for iOS
Install_The Testo Thermography App_GooglePlay
Install the Application for Android
Detecting structural defects
and ensuring building quality
(also for images of the building shell)
Easy checking of heating
and installation systems

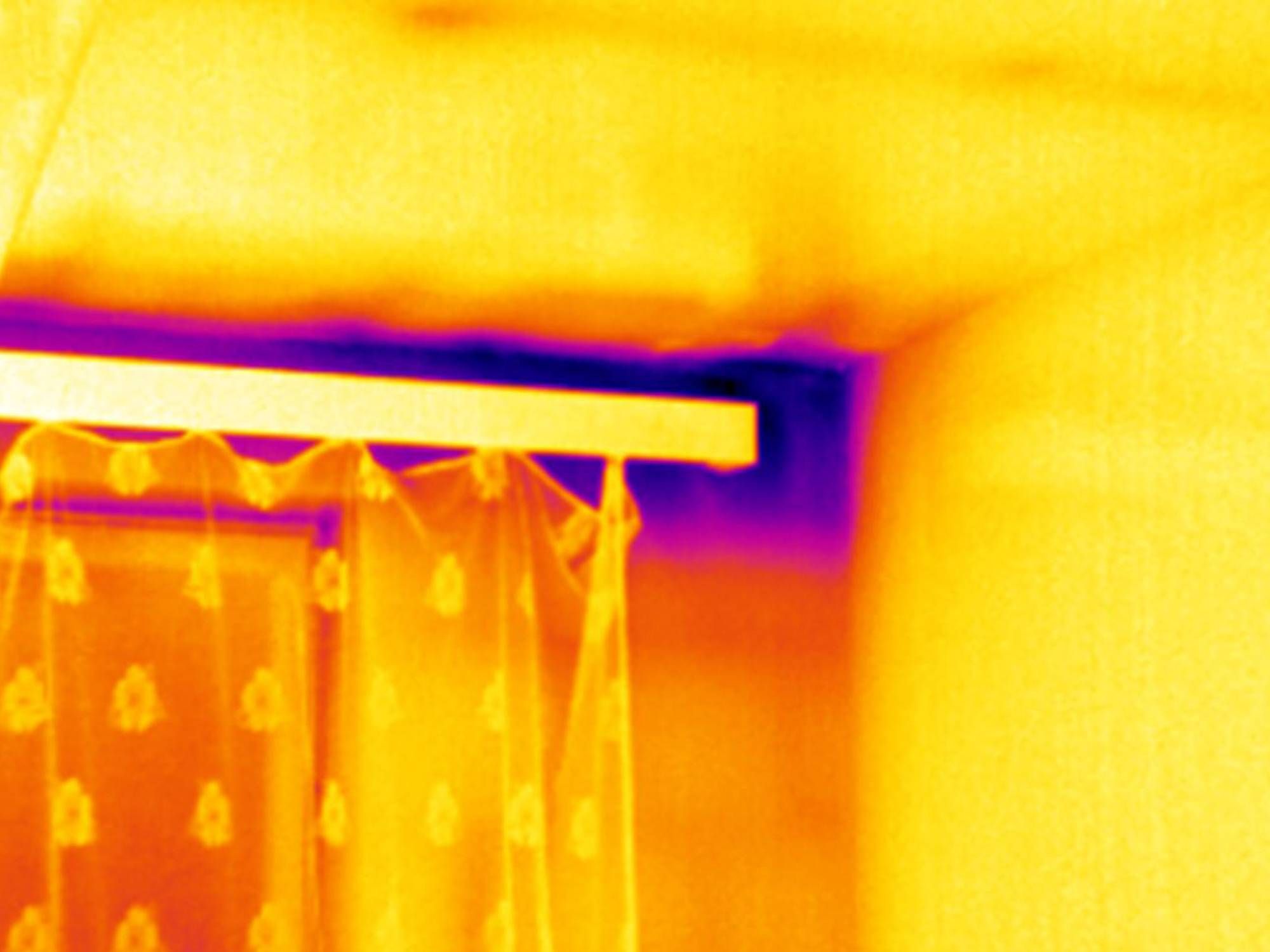

Preventing mould growth

Support in preventive maintenance
Testo-0560 8712_Photo_005_Construction  Testo-0560 8712_Photo_006_Heating Testo-0560 8712_Photo_007_Preventing mould growth  Testo-0560 8712_Photo_008_Electric
Infrared Image Output
Infrared Resolution 240 x 180 pixels
Focus Fixed focus
Image Refresh Rate 9 Hz
SuperResolution (IFOV) 1.6 mrad
SuperResolution (Pixel) 480 x 360 pixels
Geometric Resolution (IFOV) 2.6 mrad
Minimum Focus Distance <0.5 m
Field of View 35° x 26°
Thermal Sensitivity 90 mK
Spectral Range 7.5 to 14 µm
Image Output Visual
Image Size at least 3.1 MP
Minimum Focus Distance 0.5 m
Image Presentation
Display Type 8.9 cm (3.5") TFT, QVGA (320 x 240 pixels)
Display Option IR image / Real image
Colours 4 (iron, rainbow, cold-hot, grey)
Measurement
Measuring range -30 to +100 °C; 0 to +650 °C
Accuracy ±2 °C, ±2 % of mv
Emissivity 0.01 to 1
Reflected Temperature Manual
Testo ε-Assist Included
Measuring Function
Solar mode – Manual Input of solar radiation value
Analysis Function Mean point measurement, hot/cold-spot recognition, Delta T
Humidity Measurement
with Humidity Measuring Instrument
Automatic measurement value transfer of thermohygrometer testo 605i via Bluetooth
(instrument must be ordered separately); Wireless permit in EU, EFTA, USA, Canada, Australia, Turkey
Testo ScaleAssist Included
Humidity mode - Manual Included
IFOV warner Included
Electrical mode - Manual Input of current, voltage or power
Electrical measurement with clamp meter Automatic measurement value transfer of clamp meter testo 770-3 via Bluetooth (instrument must be ordedered separately); Wireless permit in EU, EFTA, USA, Canada, Australia, Turkey
Imager Equipment
Digital Camera Included
Full Screen Mode Included
JPEG Storage Included
Video Streaming via wireless LAN with testo Thermography App
Standard Lens 35° x 26°
Interface USB 2.0 Micro B
WLAN Connectivity Communication with the testo Thermography App wireless module BT/WLAN (EU, EFTA, USA, AUS, CDN, TR)
Bluetooth Yes
Imager Storage
File Format Image .bmt; .jpg; export option in .bmp; .jpg; .png; .csv; .xls
Storage Device Internal Memory (2.8 GB)
Power Supply
Battery Type Fast-charging, Li-ion battery can be changed on-site
Operating Time 4 h
Charging options In instrument / Charger (Optional)
Mains operation Yes
Ambient Condition
Air humidity 20 to 80 %RH non-condensing
Housing protection class IP54
Vibration 2G
Storage temperature -30 to +60 °C
Operating temperature -15 to +50 °C
Physical Specification
Housing PC - ABS
Weight 510 g
Dimensions 219 x 96 x 95 mm
PC Software
System requirements Windows 10; Windows 8; Windows 7
Standards, Tests, Warrenty
EU-/EG-guidelines RED: 2014/53/EU; EMC: 2014/30/EU
SKUTesto-871
Weight510.000000
Dimension219 x 96 x 95 mm.
ManufacturerTesto
Data loggerNo
Field of View (FOV)35° x 26°
Detector Resolution240 x 180 pixels
Resolution No
Measurement Range-30 to +100 °C 0 to +650 °C
Other Function

Solar mode – manual
Analysis function
Humidity measurement with humidity measuring instrument
Testo ScaleAssist
Humidity mode - manual
IFOV warner
Electrical mode - manual
Electrical measurement with clamp meter

Power SupplyFast-charging, Li-ion battery can be changed on-site
Water resistanceIP54
Sensor Output InterfaceNo
Accuracy±2 °C ±2 % of mv
Your Rating

Standard Acessories

  • Testo 871 thermal imager with radio module for Bluetooth/WLAN
  • USB cable
  • Mains unit
  • Lithium-ion rechargeable battery
  • Pro software IRSoft (free download)
  • 3 x testo ε-Markers
  • Commissioning instructions
  • Short instructions
  • Calibration protocol and case

Accessories (Optional)

  • Battery-charging station, desktop charging station for optimizing the charge time
    No. 0554 1103
  • Testo 605i – thermohygrometer with smartphone operation
    No. 0560 1605
  • Clamp meter testo 770-3
    No. 0590 7703

Certificates (Optional)

  • ISO calibration certificate for thermal imager with measuring points at 0 / +25 / +50 °C
    No. 0520 0489
  • ISO calibration certificate for thermal imager with measuring points at 0 / +100 / +200 °C
    No. 0520 049
