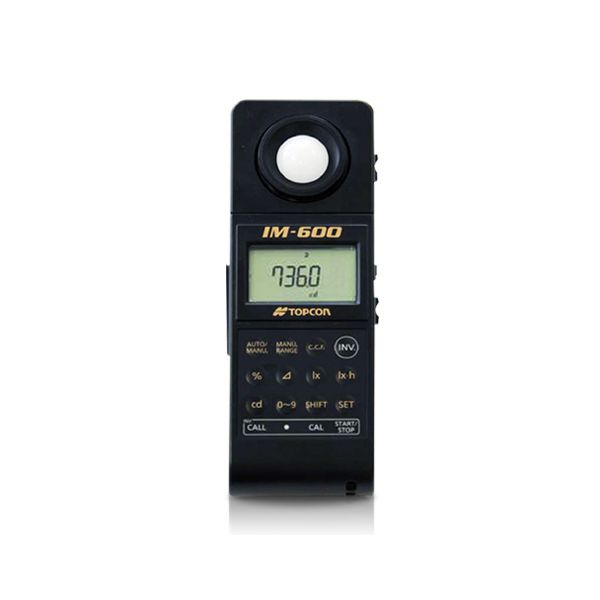

TOPCON IM-600 Digital Illuminancemeter

TOPCON IM-600 Digital Illuminancemeter

IM-600 is capable of measuring wide range of illuminance and evaluating next generation illumination. Conforms to the general AA Class (JIS C 1609-1: 2006) and DIN Class B (DIN 5032 Part 7 Class B). Compatible with PWM (Pulse Width Modulation) controlled lighting. (Slow Mode)

• Capable of wide range measurement from low to high illuminance (0.005 to 999,000 lx / 0.005 to 92807 fc)
• Built-in Keyboard enable to calculate luminous intensity.
• Response speed are selectable. flicker and waveform can be observed by connecting oscilloscope.
• USB Interface
• Analogue output speed is a period of time which analogue output reach 90% of its maximum value from 10% of the maximum value.


  Measurement range	1	2	3	4	5	6
  Effective measuring range	0.005 - 9.990	5.50 - 99.90	75.0 - 999.0	750 - 9,990	7,500 - 99,900	75,000 - 999,000
  Response speed (FAST mode: 90%)	About 60 ms	About 6 ms	About 0.6 ms	About 0.6 ms	About 0.6 ms	About 0.6 ms

• Correction factor (C.C.F. mode)
• Deviation measurement (◢ mode)
• Percentage measurement (% mode)
• Deviation and Percentage Measurement displayed
• Luminous intensity measurement (cd mode)
• Integral illuminance measurement (lx - h/fc - h mode)
