TOPCON UVR-T2 Industrial UV Checker

SKU
UVR-T2 Series

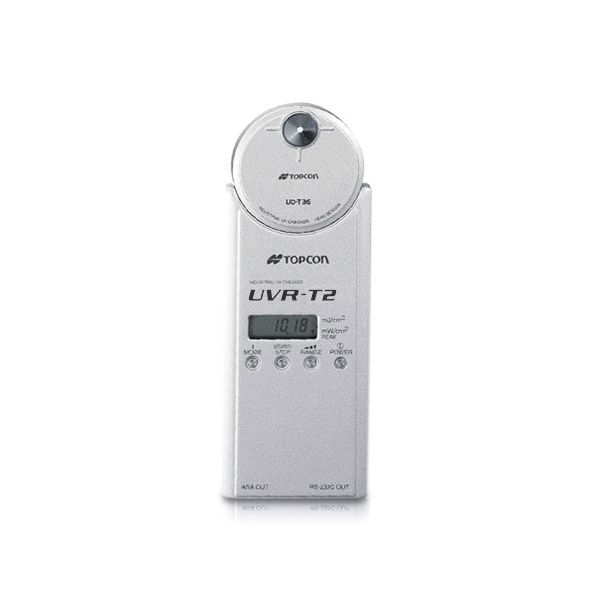

main product photo

Out of stock

Industrial use UV checkered
Ideal for UV irradiation equipment
3 Measurement wavelength (230-280nm, 300-390nm, 350-490 nm)
TOPCON , Japan

0
Categories: UV Meters, TOPCON
TOPCON

TOPCON UVR-T2 Industrial UV Checker

Industrial use UV checkered UVR-T2 is ideal for management of UV irradiation equipment used at the Curing, and printing. Based on the measurement result of this product, a customer's improvement in the yield can be adjusted by using it for management of conveyor speed, or lamp intensity distribution and exchange time.

How to request Quatation

  • Download a request document below.
PDF Download Request Document

**If any question please feel free to contact us. TEL : +66 2 746 9933 **

System Diagram Dimension
Detector unit UD-T25T2 UD-T36T2 UD-T40T2
Measurement wavelength range 230 - 280 nm 300 - 390 nm 350 - 490 nm
Peak sensitivity wavelength Approx. 254 nm Approx. 355 nm Approx. 410 nm
Irradiance (Peak irradiance)
mW/cm2		 Range Measurement range Range Measurement range Range Measurement range
1 0.01 - 30.00 1 0.01 - 60.00 1 0.01 - 30.00
2 0.1 - 300.0 2 0.1 - 600.0 2 0.1 - 300.0
3 1.0 - 3,000 3 1 - 6,000 3 1 - 3,000
Integral irradiance
mJ/cm2		 Range Measurement range Range Measurement range Range Measurement range
1 0.01 - 999.99 1 0.01 - 999.99 1 0.01 - 999.99
2 0.1 - 9,999.9 2 0.1 - 9,999.9 2 0.1 - 9,999.9
3 1 - 99,999 3 1 - 99,999 3 1 - 99,999
Analog output
Irradiance for 1mV
(Unit : mW/cm2)		 Range Measurement range Range Measurement range Range Measurement range
1 0.015 1 0.03 1 0.015
2 0.15 2 0.3 2 0.15
3 1.5 3 3 3 1.5
Detector element Silicon photo diode
Diameter of detector window φ5 mm  φ3 mm
Data Sampling 50/60Hz selection type
Sampling time (The following table shows the Integral irradiance mode.) 50Hz -> 10ms, 60Hz -> 8.33ms
Sampling rate (The following table shows the Integral irradiance mode.) 50Hz -> 50times/sec., 60Hz -> 60times/sec.
Display 5-digit LCD
Calibration accuracy ±2% (As to value of calibration reference unit proofread by a standard light source of our company.)
Linearity ±3% (When there are 5% or more of a full scale quantity of light in each range. And, when zero calibration is done at the instrument startup.)
Angular incident light characteristics 30º ≥ Within ±5%, 60º ≥> Within ±25%
Analog output voltage 0 - 2.0Vmax. (Common to each range.)
Interface USB2.0 (USB A connector - USB Micro B connector)
Temperature / Humidity characteristics Within ±4% (10 - 60ºC 23ºC is standard) / Normal to 85%R.H. (with no dew condensation)
Power supply LR03 (Alkaline dry battery) 3 pcs. (not included in the price) / USB bus power
Operating conditions Temperature 10 - 60ºC / Humidity 85% R.H. or less (No dews)
Dimensions Approx.201×75×16mm (Detector unit is mounted/without heatproof cover)
Approx.208×83×17mm (Detector unit is mounted/with heatproof cover)
Weight Approx.320g (Including the batteries/without heatproof cover)
Approx.370g (Including the batteries/with heatproof cover)
Calibration light source UD-T25T2 : GL-15
UD-T36T2 : FL-20S-BLB
UD-T40T2 : Standard light source A
SKUUVR-T2 Series
DimensionN/A
ManufacturerTOPCON
Data loggerNo
Solar Power RangeW/cm^2
UV measurementNo
Switching Lx RangeNo
UV measurement rangeuW/cm^2
Lux measurement range lx
Other FunctionNo
Power SupplyLR03 x 3
Resolution5-digit LCD
Water resistanceNo
Sensor Output InterfaceNo
Accuracy

±3% (When there are 5% or more of a full scale quantity of light in each range. And, when zero calibration is done at the instrument startup.)

Your Rating
PDF Download ดาวน์โหลดแคตตาล็อค

Accessories Included:

  • UVR-T2 main body ×1
  • Heatproof cover ×1
  • Screw ×4
  • Analog output plug ×1
  • Carrying case ×1
  • USB cable ×1
  • CD-ROM (driver/Instruction manual/Measurement program) ×1
