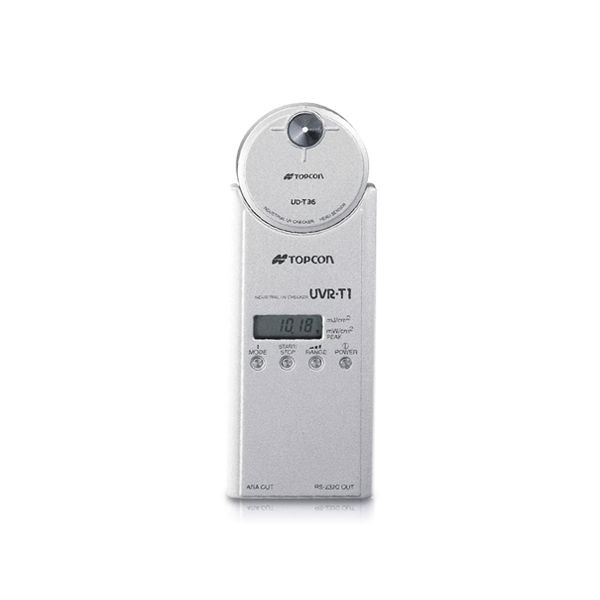

TOPCON UVR-T1 Industrial UV Checker

TOPCON UVR-T1 Ideal for maintenance management of UV irradiation equipment in various industrial fields

Industrial use UV checkered UVR-T1 is ideal for management of UV irradiation equipment used at the ceiling and adhesion process for electronic components,
and printing, dryness and mounting for PCB production line. And also, the sterilization process of various fields Based on the measurement result of this product,
a customer's improvement in the yield can be adjusted by using it for management of conveyor speed, or lamp intensity distribution and exchange time.
Moreover, it can be used also for the lamp maintenance management of equipment in photolitho processes, such as a semiconductor, FPD,
and a printed circuit board.

Features
Metal body can be maintained a stable measurement. (equipped with heat shield）
Multiple measurement function
Real-time illuminance measurement, Peak data measurement, Accumulated Light Amount Measurement
Extension cable make it possible to measure from separated place between body and detector.
Built-in memory, RS-232C communication with PC, Analog output

Applications
Maintenance management of lamp for a variety of UV irradiation equipment
Stepper, Aligner, Laser Direct imaging
Laser beam machining
UV-Disinfection, Disinfection, Reformer
UV-Curing, Cleaning
UV-surface treatment
Development division of UV light source
UV Lamp production line for inspection at the factory

Sensor Specification

Item	UD-T25	UD-T36	UD-T40
Photo detector	Silicon photo diode
Optical Detector diameter	φ5 mm	φ3 mm	φ3 mm
Sensitivity Wavelength Range	230 - 280 nm	300 - 390 nm	350 - 49nm
Peak sensitivity	about 254 nm	about 350 nm	about 410 nm
Illuminance Measurement Range (mW/cm2)	Range-1: 0.01-30.0 Range-2: 0.1-300.0 Range-3: 1.0-3000.0	Range-1: 0.02-60.0 Range-2: 0.2-600.0 Range-3: 2.0-6000.0	Range-1: 0.01-30.0 Range-2: 0.1-300.0 Range-3: 1.0-3000.0
Accumulated Light Amount Measurement Range (mJ/cm2)	Range-1: 0.01-999.99 Range-2: 0.1-9999.9 Range-3: 1.0-99999.0	Range-1: 0.02-999.99 Range-2: 0.2-9999.9 Range-3: 2.0-99999.0	Range-1: 0.01-999.99 Range-2: 0.1-9999.9 Range-3: 1.0-99999.0
Analog Output 1mV of radiant illumination (mJ/cm2)	Range-1 : 0.015 Range-2 : 0.15 Range-3 : 1.5	Range-1 : 0.03 Range-2 : 0.3 Range-3 : 3.0	Range-1 : 0.015 Range-2 : 0.15 Range-3: 1.0
Data Sampling Time/Rate	Time: 50Hz(10ms), 60Hz(8.33ms) Rate: 50Hz(50times/sec), 60Hz(60teimes/sec)
Cosine Correction Characteristics	30°: within ±5% 60°: within ±25%
Measurement Accuracy(*1)	within ±2%
Analog Output	0 - 2 V
Interface	RS-232C
Power Source	Battery Size AAA × 4
Use Conditions	Temperature : 10 - 60 ℃, Humidity : 85% R.H. or less (no condensation)
Dimensions (W×D×H)	75 × 202 × 16 mm
Weight	350 g

(*1) For TOPCON calibration standard tool with calibration light source
(*2) without heat-proof cover
