Eclatorq WE Series Digital Torque Wrench

Fixed Head
36,48 Gear Teeth
Measurement Unit N-m, in-lb, ft-lb, kg-cm
Measurement Peak Hold (P), Track (T)
Accuracy ±2% (CW)/ ±3% (CCW)

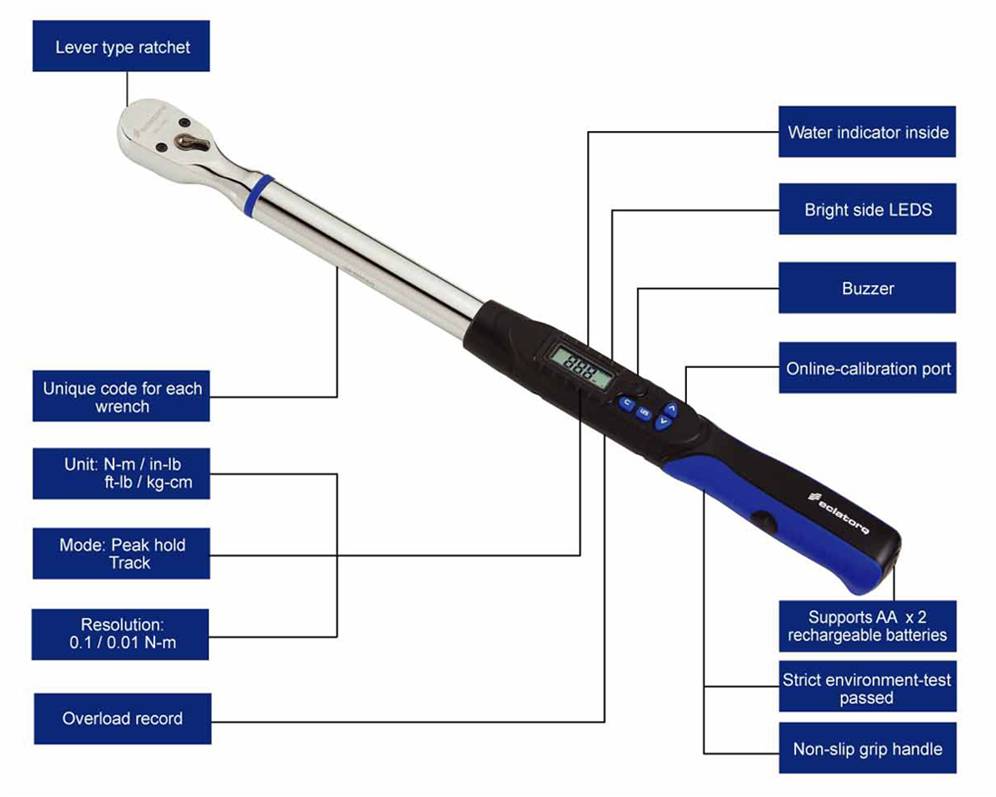

12 LED Lights (4 Red + 8 Green) Visible from the top and sides.
Battery AA x 2 (10 hour battery lifetime.)
Calibration Certificate
Standard Drop Test 1 m
Brand Eclatorq

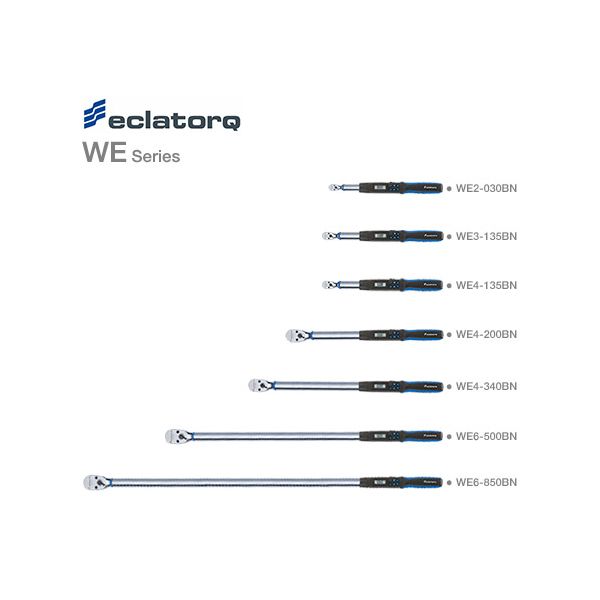

WE Series Digital Torque Wrench

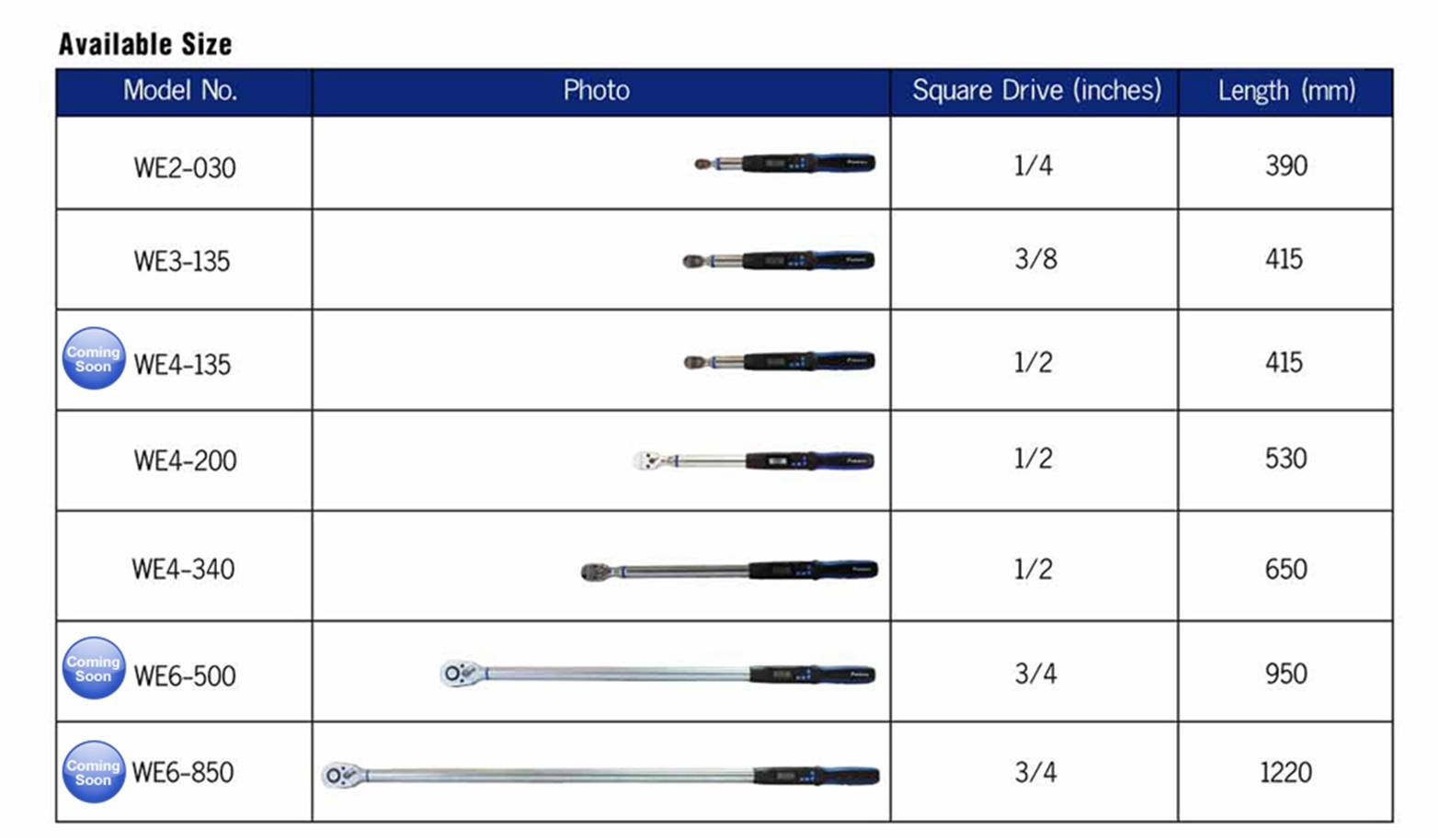

	Model	Range	Square Drive (inches)
	WE2-030BN	1.5~30 N-m 1.11~22.12 ft-lb 13.3~265.5 in-lb 15.3~306.1 kg-cm	1/4"
	WE3-135BN	6.8~135 N-m 5~99.5 ft-lb 60~1195 in-lb 69~1378 kg-cm	3/8"
	WE4-135BN	6.8~135 N-m 5~99.5 ft-lb 60~1195 in-lb 69~1378 kg-cm	1/2"
	WE4-200BN	10~200 N-m 7.4~147.5 ft-lb 88~1770 in-lb 102~2041 kg-cm	1/2"
	WE4-340BN	17~340 N-m 12.5~250.7 ft-lb 150~3009 in-lb 173~3469 kg-cm	1/2"
	WE6-500BN	25~500 N-m 18.4~368.7 ft-lb 221~4424 in-lb 255~5102 kg-cm	3/4"
	WE6-850BN	42.5~850 N-m 31.3~626.8 ft-lb 376~7521 in-lb 434~8674 kg-cm	3/4"

• Green light when approaching the set value
• Red light warning on the set
