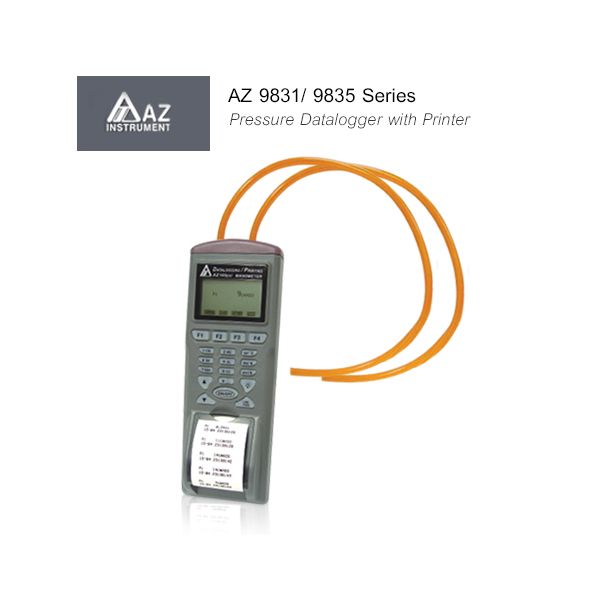

AZ 9831/ 9835 Series เครื่องบันทึกความดันดิจิตอลแบบมีปริ้นเตอร์

SKU
AZ-9831-9835 Series
Out of stock

เครื่องบันทึกความดันดิจิตอลแบบมีปริ้นเตอร์
หัวต่อท่อ 2 ขนาด 4 mm & 8 mm
หน่วยการวัด 11 หน่วยการวัด
บันทึกข้อมูลได้สูงสุด 12,000 จุด
ตัวเครื่อง Built-in ปริ้นเตอร์

Product Name Qty
AZ-9835 Digital Manometer 5 psi
Out of stock
AZ-9831 Digital Manometer 100 psi
Out of stock

AZ 9831/ 9835 Series เครื่องบันทึกความดันดิจิตอลแบบมีปริ้นเตอร์

มานอมิเตอร์ (Manometers) ส่วนใหญ่จะเหมาะสำหรับการวัดค่าความดันต่าง (Differential Pressure) ในการวัดและคำนวณค่าความดันที่แตกต่างกันระหว่างพื้นที่ 2 จุด ที่อยู่ในระบบเดียวกัน ซึ่งหลังจากได้ผลความดันต่างแล้ว เครื่องจะนำไปคำนวณค่าอัตราการไหล

Features

  • 3 Measurement Modes:
    - single point measurement
    - manual record up to 99 points
    - automatically record up to 12,000 points
  • Built-in printer to print anytime, anywhere
  • 11 pressure units selectable
  • Automatic recording is programmable
  • PC interface with software enable to link with PC for data download or upload pre-edited header from PC to meter
  • Big dot matrix LCM
  • Backligh function to use in dark area
  • Auto power off time selectable
  • Built-in tripod mountable receptacle
Model 9835 9831
Range Resolution Range Resolution
psi ±5.000 0.003 ±100.0 0.1
kPa ±34.47 0.02 ±689.5 0.4
mmHg ±258.6 0.2 ±5171 3
Kg/cm² ±0.352 0.001 ±7.031 0.004
mbar (hpa) ±344.7 0.2 ±6895 4
bar ±0.345 0.001 ±6.895 0.004
inH2O ±138.4 0.1 ±2768 2
cmH2O ±350.2 0.2 ±7004 4
inHg ±10.18 0.01 ±203.6 0.2
ftH2O ±11.53 0.01 ±230.7 0.2
oz/inch² ±80.00 0.05 ±1600 1

Pressure Conversion Table (ตารางแปลงหน่วยความดัน)

Accuracy ±0.3% of full scale at ±25ºC
Repeatability ±0.2% to 0.5% of full scale
Linearity/ Hysteresis ±0.29% to 1% of full scale
Combined accuracy ±1.0% of full scale
Response time 0.5 second
Compensated temp. range 0 to 50ºC
LCD size 26 x 45 mm
Power requirement Battery AAA x 4 or 9V adaptor
Dimensions/ Weight 208 x 70 x 53 mm/ 370 g
SKUAZ-9831-9835 Series
Dimension208 x 70 x 53mm
ManufacturerAZ
Data loggerYes
Type of PressureGauge Pressure
Resolution 0.001 psi
Measurement RangeDepends on model
Other Function
  • 3 Measurement Modes:
    - single point measurement
    - manual record up to 99 points
    - automatically record up to 12,000 points
  • Built-in printer to print anytime, anywhere
  • 11 pressure units selectable
  • Automatic recording is programmable
  • PC interface with software enable to link with PC for data download or upload pre-edited header from PC to meter
  • Big dot matrix LCM
  • Backligh function to use in dark area
  • Auto power off time selectable
  • Built-in tripod mountable receptacle
Power SupplyBattery AA x 4 or 9V adaptor
Water resistanceNo
Sensor Output InterfaceUSB, RS-232 interface
Accuracy+1.0% of full scale
Your Rating

Accessories Included:

  • Meter
  • Connection hose x 2
  • Battery AA x 4
  • Thermo paper
  • Software CD & cable
  • Hard carry case
  • Manual
