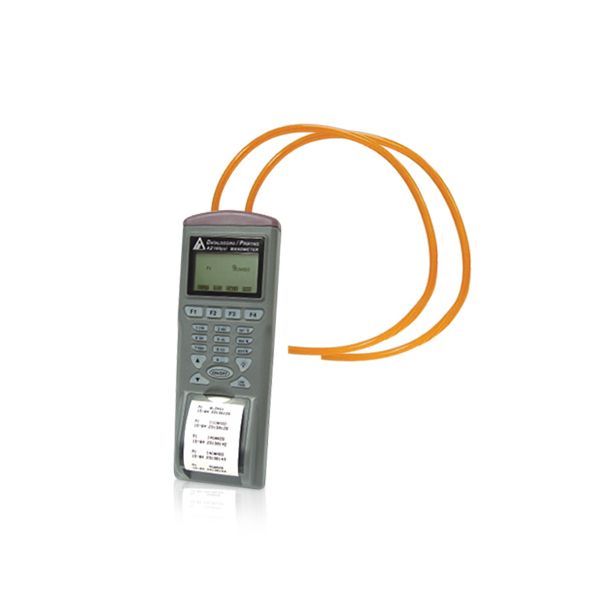

AZ-9831 Digital Manometer 100 psi

SKU

AZ-9831

Skip to the end of the images gallery

main product photo

Skip to the beginning of the images gallery

฿10,500.00

Out of stock

เครื่องบันทึกความดันดิจิตอลแบบมีปริ้นเตอร์
ช่วงการวัดความดัน-แรงดัน 100.0 ps
หัวต่อท่อ 2 ขนาด 4 mm & 8 mm
หน่วยการวัด 11 หน่วยการวัด
บันทึกข้อมูลได้สูงสุด 12,000 จุด
ตัวเครื่อง Built-in ปริ้นเตอร์

Category: AZ

AZ 9831 เครื่องบันทึกความดันดิจิตอลแบบมีปริ้นเตอร์ (100 psi)

Features

3 Measurement Modes:
- single point measurement
- manual record up to 99 points
- automatically record up to 12,000 points
Built-in printer to print anytime, anywhere
11 pressure units selectable
Automatic recording is programmable
PC interface with software enable to link with PC for data download or upload pre-edited header from PC to meter
Big dot matrix LCM
Backligh function to use in dark area
Auto power off time selectable
Built-in tripod mountable receptacle

Range & Resolution

Measurement	psi	kPa	mmHg	Kg/cm²	mbar (hpa)	bar	inH₂O	cmH₂O	inHg	ftH₂O	oz/inch²
Range	±100.0	±689.5	±5171	±7.031	±6895	±6.895	±2768	±7004	±203.6	±230.7	±1600
Resolution	0.1	0.4	3	0.004	4	0.004	2	4	0.2	0.2	1

Pressure Conversion Table (ตารางแปลงหน่วยความดัน)

SPECIFICATION

Accuracy	±0.3% of full scale at ±25ºC
Repeatability	±0.2% to 0.5% of full scale
Linearity/ Hysteresis	±0.29% to 1% of full scale
Combined accuracy	±1.0% of full scale
Response time	0.5 second
Compensated temp. range	0 to 50ºC
LCD size	26 x 45 mm
Power requirement	Battery AAA x 4 or 9V adaptor
Dimensions/ Weight	208 x 70 x 53 mm/ 370 g

More Information

SKU	AZ-9831
Weight	370.000000
Dimension	208 x 70 x 53 mm.
Manufacturer	AZ
Data logger	Yes
Type of Pressure	Gauge Pressure
Resolution	0.1 psi
Measurement Range	-100.0 to 100.0 psi
Other Function	3 Measurement Modes: - single point measurement - manual record up to 99 points - automatically record up to 12,000 points Built-in printer to print anytime, anywhere 11 pressure units selectable Automatic recording is programmable PC interface with software enable to link with PC for data download or upload pre-edited header from PC to meter Big dot matrix LCM Backligh function to use in dark area Auto power off time selectable Built-in tripod mountable receptacle
Power Supply	Battery AAA x 4 or 9V adaptor
Water resistance	No
Sensor Output Interface	No
Accuracy	±0.3%F.S.

PDF Download

Accessories Included:

Meter
Connection hose x 2
Battery AA x 4
Thermo paper
Software CD & cable
Hard carry case
Manual
