CAMPBELL CR1000 Measurement and Control Datalogger

SKU
CR1000
฿90,000.00
Pre-Order Item
Out of stock

Measurement and Control Datalogger
With several channel types
Rugged enough for extreme conditions
Ports: CS I/O, RS-232, Parallel peripheral
Maximum Scan Rate: 100Hz
4-MB memory

Add to Compare

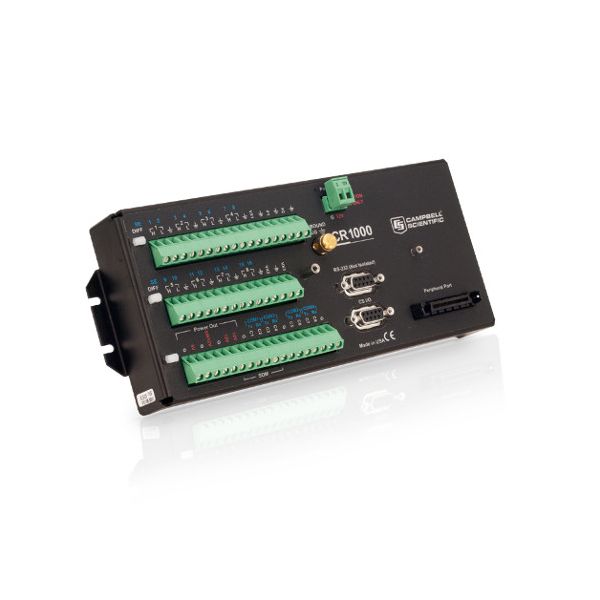

CAMPBELL CR1000 Measurement and Control Datalogger

The CR1000 is our most widely used datalogger. It can be used in a broad range of measurement and control functions. Rugged enough for extreme conditions and reliable enough for remote environments, it is also robust enough for complex configurations. Used in applications all over the world, it will be a powerful core component for your data-acquisition system.

The CR1000 consists of a measurement and control module and a wiring panel. This datalogger uses an external keyboard/display and power supply. Low power consumption allows the CR1000 to operate for extended time periods on a battery recharged with a solar panel—eliminating the need for AC power. The CR1000 suspends execution when primary power drops below 9.6 V, reducing the possibility of inaccurate measurements.

  • Sensors
    With several channel types, the CR1000 is compatible with nearly every available sensor, including thermocouples, SDI-12 sensors, and 4 to 20 mA sensors (via a terminal input module, such as the CURS100).
  • Measurement & Control Peripherals
    The CR1000 is compatible with all of our CDMs (requires an SC-CPI), SDMs, multiplexers, vibrating-wire interfaces, terminal input modules, and relays.
  • Communications
    The CR1000 communicates with a PC via direct connect, Ethernet interfaces, multidrop modems, short-haul modems, phone modems (land line, digital cellular, and voice-synthesized), RF telemetry, and satellite transmitters (Argos, Iridium, and Inmarsat).
  • Meteorology
    The CR1000 is used in long-term climatological monitoring, meteorological research, and routine weather measurement applications.
  • Wind Profiling
    Our data acquisition systems can monitor conditions at wind assessment sites, at producing wind farms, and along transmission lines.
  • Air Quality
    The CR1000 can monitor and control gas analyzers, particle samplers, and visibility sensors. The datalogger can also automatically control calibration sequences and compute conditional averages that exclude invalid data.
  • Water Resources/Aquaculture
    Our CR1000 is well-suited to remote, unattended monitoring of hydrologic conditions. Most hydrologic sensors, including SDI-12 probes, interface directly to the CR1000.
  • Vehicle Testing
    This versatile, rugged datalogger is ideally suited for testing cold and hot temperature, high altitude, o-highway, and cross-country performance.
  • Soil Moisture
    The CR1000 are compatible with the following soil moisture measurement technologies: Soil moisture blocks, Matric water potential sensors, TDR, Self-contained water content reflectometers and Tensiometers.
Maximum Scan Rate 100Hz
Analog Inputs 16 Single-ended or 8 differential (individually configured)
Pulse Counters 2
Switched Excitation Channels 3 voltage
Digital Ports Certain digital ports can be used to count switch closures.
8 I/Os or 4 RS-232 COM I/O ports can be paired as transmit and receive for measuring smart serial sensors.
Communications Ports 1 CS I/O
1 RS-232
1 Parallel peripheral
Switched 12 Volt 1
Input Voltage Range ±5 Vdc
Analog Voltage Accuracy ± (0.06% of reading + offset) at 0° to 40°C
Analog Resolution 0.33 μV
A/D Bits 13
Power Requirements 9.6 to 16 Vdc
RTC Clock Accuracy ±3min. per year (Correction via GPS optional.)
Protocols Supported PakBus, Modbus, DNP3, FTP, HTTP, XML POP3, SMTP, Telnet, NTCIP, NTP, SDI-12, SDM
CE Compliance Standards to which Conformity is Declared IEC61326:2002
Temperature Range
Standard -25° to 50°C
Extended -55° to 85°C
Memory
Operating System 2 MB flash
Battery-backed SRAM for
CPU Usage & Final Storage
4 MB
Flash Disk (CPU) for Program Files 512 kB
Typical Current Drain @ 12 Vdc
Sleep Mode < 1mA
Active 1 to 16 mA typical (without RS-232 communication)
17 to 28 mA typical (with RS-232 communication)
Dimensions 23.8 × 10.1 × 5.4 cm
25.2 × 10.2 × 7.1 cm with CFM100 or NL116 attached
Weight 1.0kg
SKUCR1000
Weight1000.000000
Dimension23.8 x 10.1 x 5.4 cm
Manufacturercampbell
