DW-6092SD Power Analyzer 3 Phase - SD Card Data logger

SKU
DW-6092SD

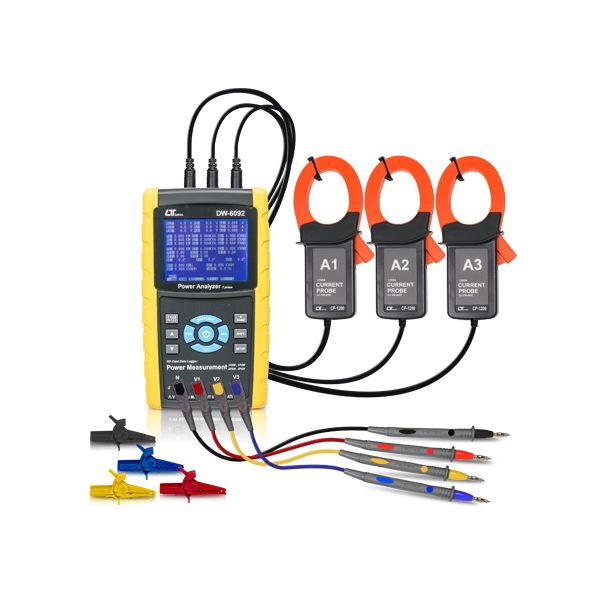

main product photo
฿66,800.00
Pre-Order Item
Out of stock

Lutron DW-6092SD เครื่องวิเคราะห์ไฟฟ้า
ฟังก์ชั่นการวิเคราะห์พลังงานไฟฟ้าแบบ ACV, ACA, Power factor, Phrase angle, Frequency,
Active (Real) Power, Apparent Power, Reactive Power, Watt Hour, VA Hour, VAR Hour
บันทึกข้อมูลด้วย SD Card
RS232 Interface
ยี่ห้อ Lutron, Taiwan

Authorized_Lutron

Add to Compare
Categories: Power Analyzers, Lutron , Product Type 5
Lutron

Lutron DW-6092SD เครื่องวิเคราะห์ไฟฟ้า

ฟังก์ชั่นการวิเคราะห์พลังงานไฟฟ้าแบบ ACV, ACA, Power factor, Phrase angle, Frequency, Active (Real) Power
Apparent Power, Reactive Power, Watt Hour, VA Hour, VAR Hour

Circuit Custom one-chip of microprocessor LSI circuit
Display

LCD Size :
81.4 X 61 mm ( 3.2 X 2.4 inch )

* Dot Matrix LCD (320 X 240 pixels ) with back light.
Measurement Unit * ACV
* ACA
* AC WATT ( True Power )
AC WATT( Apparent Power )
AC WATT( Reactive Power )
* Power factor
* Phase angle
* Frequency
Data Hold Freeze the display reading.
Data output RS232 computer serial interface :
* Connect the optional USB cable USB-01 will get the USB plug.
* Connect the optional RS232 cable UPCB-02 will get the RS232
plug.
Operating Temperature 0 to 50°C ( 0 to 122°F ).
Operating Humidity Less than 80% R.H..
Power Supply * DC1.5V,AA(UM-3)BatteryX8PCs (Alkaline or heavy duty battery).
* AC to DC 9V power adapter.
Power Consumption * Meter : 300 DCmA. * Clamp : 20 DCmA.
Weight * Meter: 1049g ( includes batteries ) * Clamp : 522g
Dimension Meter: 225X125X64mm
( 8.86 X 4.92 X 2.52 inch )
Clamp: 210X64X33mm
( 8.3 X 2.5 X 1.3 inch )
Wire connections 1P/2W, 1P/3W, 3P/3W, 3P/4W.
Voltage ranges 10 ACV to 600 ACV, auto range.
Current ranges 0.2 ACA to 1200 ACA, auto range/manual range.
Safety standard IEC1010 CAT III 600 V.
ACV input impedance 10 Mega ohms.
Range select ACV
Auto range.
ACA
Auto range & manual range.
Clamp frequency response 40 Hz to 1 KHz.
Spec. tested frequency 45 to 65 Hz.
Over load protection ACV
720 ACV rms
ACA
1300 ACA with clamp probe CP-1200
Over Indicator Show " OL ".
Under Indicator Show " UR ".
Data Record SD Card Record.
Power ON/OFF Manual OFF by push button.
Real time data logger * Real time data logger, saved the data into SD memory card and down load the all the measured value with the time information ( year/month/data/ hour/mimute/second ) down load
to the Excel
* Integration time for data logger :
2 seconds to 7200 seconds, the during of setting step are 2 seconds.
Data Output USB/RS232 RS232 computer serial interface :
* Connect the optional USB cable USB-01 will get the USB plug.
* Connect the optional RS232 cable UPCB-02 will get the RS232
plug.
Clamp max. conductor Size 86 mm ( 3.4 inch ) Dia.
Standard Accessories * Instruction manual.:1 PC
* Test Leads (TL88-4AT):1 Set (4 PCs)
* Alligator clips (TL88-4AC):1 Set (4 PCs)
* Clamp Probe ( CP-1200 ):3 PCs
* AC to DC 9V adapter:1 PC
* SD card ( 2 G ):1 PC
* Carrying bag:1 PC
Optional Accessories * USB Cable , USB-01
* RS232 cable, UPCB-02
* Data Acquisition software, SW-U811-WIN



SKUDW-6092SD
Weight1049.000000
Dimension225 x 125 x 64 mm
ManufacturerLutron
Data loggerYes
Resolution Resolution depends on measurement function.
Measurement Range

DVC 600V, ACA 1200A
Power Facter 1.00
Phase Angle ±180°
Hz 65 Hz
Active Power 9.999 MW
Apparent Power 9.999 MVA
Reactive Power 9.999 MVAR
Watt Hours 9.999 MWH
VA Hours 9.999 MVAH
VAR Hour 9.999 MVARH

Other FunctionNo
Power SupplyBattery AA x 8
Water resistanceNo
Sensor Output InterfaceNo
AccuracyAccuracy depends on measurement function.
Your Rating

Included Accessories :

* Instruction manual.:1 PC
* Test Leads (TL88-4AT):1 Set (4 PCs)
* Alligator clips (TL88-4AC):1 Set (4 PCs)
* Clamp Probe ( CP-1200 ):3 PCs
* AC to DC 9V adapter:1 PC
* SD card ( 2 G ):1 PC
* Carrying bag:1 PC

Optional Accessories :

  • * USB Cable , USB-01
    * RS232 cable, UPCB-02
    * Data Acquisition software, SW-U811-WIN
