Hukseflux SR20 Secondary standard pyranometer

SKU
SR20-T1
Out of stock

Solar Radiation Sensor
ISO 9060 classification system: secondary standard
Field of View: 180°
Hukseflux, Netherlands

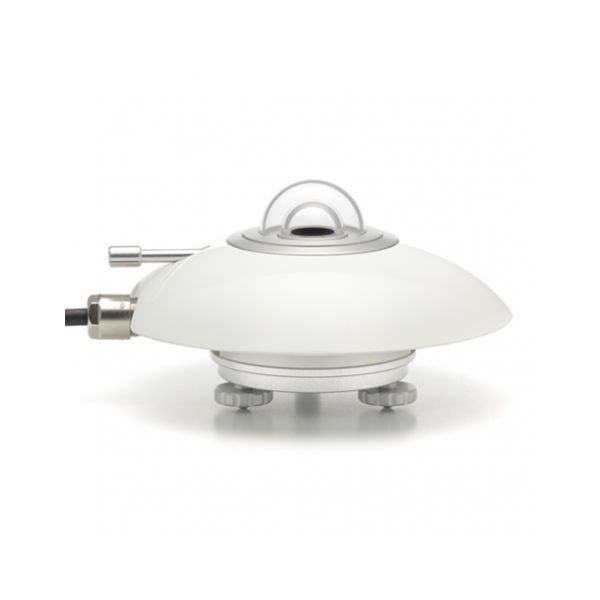

Hukseflux SR20 Secondary standard pyranometer

SR20 measures the solar radiation received by a plane surface, in W/m2, from a 180o field of view angle. SR20 enables you to attain the highest measurement accuracy and excels in demanding applications.

In order to improve overall measurement accuracy, Hukseflux effectively targeted two major sources of measurement uncertainty: calibration and “zero offset a”.
The initial calibration uncertainty is reduced to less than 1.2 %, an improvement of 15% relative to competing models.
The “zero offset a” specification of SR20 is 5 W/m2 unventilated. Competing models state 12 W/m2 unventilated and 7 W/m2 ventilated.

SR20’s low temperature dependence makes it an ideal candidate for use under very cold and very hot conditions. The temperature dependence of every individual instrument is tested and supplied as a second degree polynomial. This information can be used for further reduction of temperature dependence during post-processing. The incorporated heater reduces measurement errors caused by early-morning dew deposition.

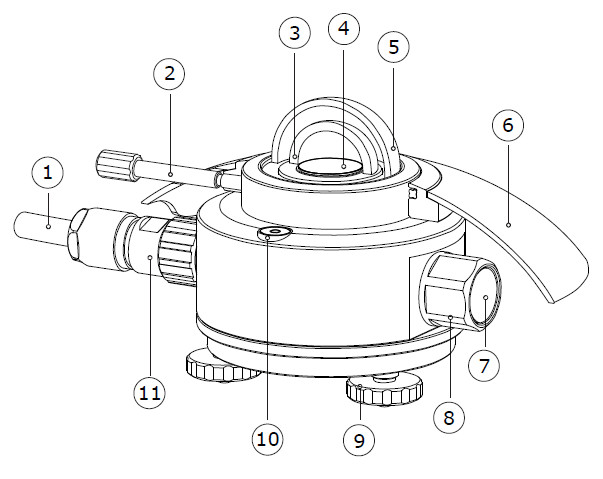

SR20 pyranometer uses a state of the art thermopile sensor with black coated surface, two domes and an anodised aluminium body. The connector, desiccant holder and sun screen fixation are ultra robust and designed for industrial use. All parts are specified for use across SR20’s entire rated operating temperature range. Overview
  1. Cable
  2. fixation of sun screen
  3. inner dome
  4. thermal sensor with black coating
  5. outer dome
  6. sun screen
  7. humidity indicator
  8. desiccant holder
  9. levelling feet
  10. bubble level
  11. connector
Measurement Hemispherical Solar Radiation
ISO Classification Secondary Standard Pyranometer
Calibration Uncertainty < 1.2% (k = 2)
Zero offset a 5 W/m2 unventilated
Calibration Traceability to WRR
Spectral Range 285 to 3000 × 10-9 m
Sensitivity (nominal) 15 × 10-6 V/ (W/m2)
Rated Operating Temperature Range -40 to 80°C
Standard Cable Length 5m
Temperature Response < ±1% (-10 to 40°C)
< ±0.4% (-30 to 50°C)
with correction in dataprocessing
Temperature Sensor Pt100 or 10k Ω thermistor
Heater 1.5 W at 12 VDC
SKUSR20-T1
Weight0.000000
Dimension0
ManufacturerHukseflux
Data loggerNo
Solar Power Range0 W/m2
UV measurementNo
Switching Lx RangeNo
UV measurement rangeuW/cm^2
Lux measurement range lx
Other FunctionNo
Power SupplyNo Need
Resolution0
Water resistanceNo
Sensor Output InterfaceNo
Accuracy

0

Your Rating

Optional Accessories:

  • longer cable in multiples of 5 metres
  • adapted transmitted range for 4-20 mA output
  • ventilated with VU01 ventilation unit
