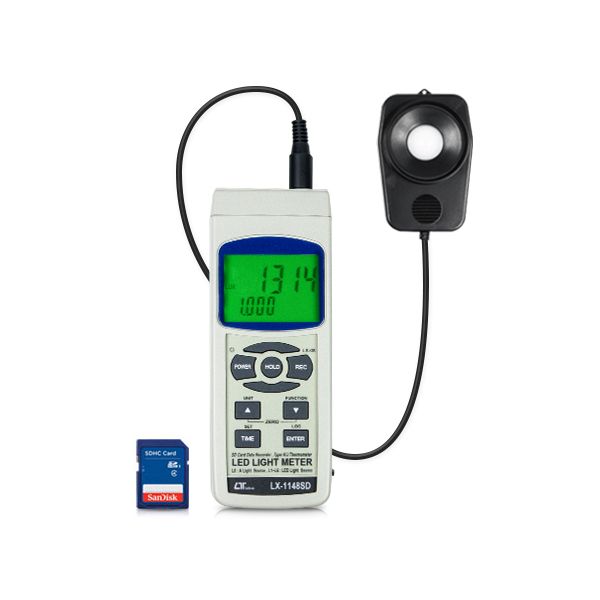

Lutron LX-1148SD LED LIGHT METER

SKU
LX-1148SD
฿7,600.00
Out of stock now
Out of stock

LED light meter measure White, Red, Yellow, Green, Blue,and Purple LED and Standard Lighting.
Units : Lux, Foot-Candle.
3 ranges 2,000/ 20,000/ 50,000 LUX
LCD with backlight, easy reading.
SD card capacity : 1 GB to 16 GB.
Brand Lutron

Add to Compare

Lutron LX-1148SD LED LIGHT METER

Real time data logger ,save the data into the SD memory card and can be downloaded the Excel, extra software is no need.
LED light meter measure White, Red, Yellow, Green, Blue, and Purple LED and Standard Lighting.
2,000/20,000/50,000 Lux, auto range.
Units : Lux, Foot-Candle.
Light sensor used the exclusive photo diode & color correction filter, spectrum meet C.I.E. photopic.
Light sensor's cosine correction factor meet standard.
Separate Light Sensor allows user to measure the light at an optimum position.
SD card capacity : 1 GB to 16 GB.
Zero key function.
LCD with backlight, easy reading.
Brand Lutron

SKULX-1148SD
Weight346.000000
Dimension182 x 73 x 47.5mm
ManufacturerLutron
Data loggerYes
Solar Power RangeW/cm^2
UV measurementNo
Switching Lx RangeAuto
UV measurement rangeuW/cm^2
Lux measurement range2,000/20,000/100,000 lx
Other Function
  • Auto power Off
  • Data hold
  • Record max./min.
  • LUX & Foot Candle unit selection with default.
Power SupplyAlkaline Battery AA x 6, DC9V adapter
Resolution1,10,100 Lux
Water resistanceNo
Sensor Output InterfaceNo
AccuracyLux : ± (4 %+2 dgt)
Your Rating

Product's Video

Light color source for LED | หลอดไฟ LED กับการวัดแสง

Light-emitting Diode หรือที่เรียกชื่อย่ออย่างแพร่หลายว่า LED คืออุปกรณ์สารกึ่งตัวนำชนิดนึง ที่จัดอยู่ในจำพวกไดโอด(diode) สามารถเปล่งแสง และมีคลื่นความถี่ต่อเนื่อง โดยในปัจจุบันสามารถแบ่ง LED ได้ 2 ประเภทคือ 1. แบบ Lamp Type, 2. แบบ Surface Mount Type (SMD) ซึ้ง LED มีประสิทธิภาพการให้แสงสว่างที่สูงว่าหลอดไส้ และให้ทิศทางแสงสว่างเฉพาะด้าน

Accessories Included:

  • Light sensor with protective cover
  • Instruction manual
  • SD Card 32GB x 1

Optional Accessories:

  • SD Card
  • Type K Thermocouple probe
  • AC to DC 9V adapter
  • USB cable, USB-01
  • RS232 cable, UPCB-02
  • Data Acquisition software, SW-U801-WIN
  • Hard carrying case, CA-06
