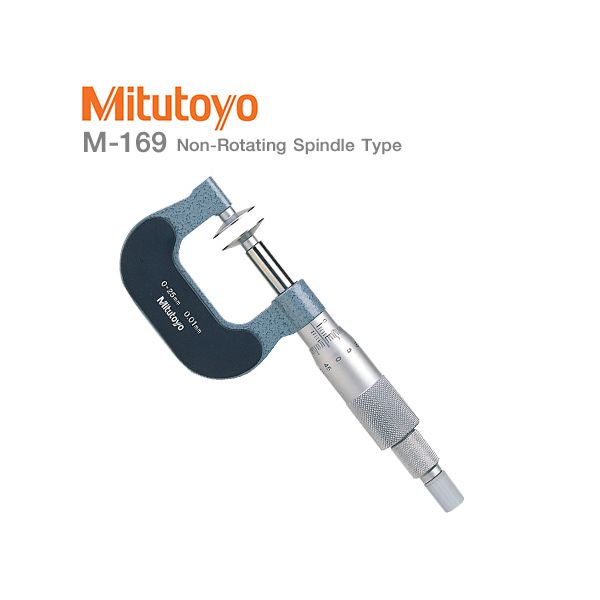

Mitutoyo M-169 Disk Micrometers Series Non-Rotating Spindle Type

SKU

M-169 Disk Micrometers Series

Skip to the end of the images gallery

main product photo

Skip to the beginning of the images gallery

Out of stock

Measures “root tangent length” of spur gears and helical gears.
Non-rotating spindle type.
Measurable range of gear pitch: 0.5 to 6 module
Equipped with Ratchet Stop for constant measuring force.
Mitutoyo, Japan

Categories: Micrometers, Mitutoyo

Mitutoyo M-169 Disk Micrometers Series Non-rotating spindle type.

Measures “root tangent length” of spur gears and helical gears.
Non-rotating spindle type.
Measurable range of gear pitch: 0.5 to 6 module
Equipped with Ratchet Stop for constant measuring force.
Mitutoyo, Japan

M-369

M-369

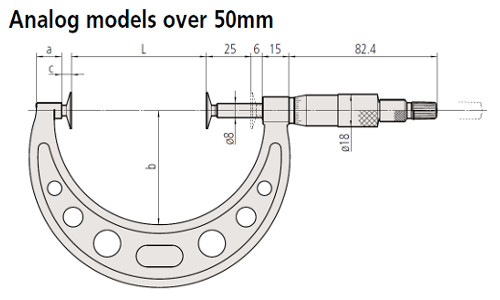

Dimension Mitutoyo M-169 Disk Micrometers Series


Range		L	a	b	c
0 - 25mm		0	13.8	25	5.7
25 - 50mm		25		32
50 - 75mm		50	12	49	5.5
75 - 100mm		75	14	63

Specification Mitutoyo M-169 Disk Micrometers Series

Metric
Models	Range	Graduation	Accuracy	Anvil dia.	Flatness	Parallelism
M-169-201	0 - 25mm	0.01mm	±4μm	ø20	1μm	4μm
M-169-202	25 - 50mm
M-169-205	50 - 75mm		±6μm			6μm
M-169-207	75 - 100mm
Inch
Models	Range	Resolution	Accuracy	Anvil dia.	Flatness	Parallelism
M-169-203	0 - 1"	.001"	±.0002"	ø20	.00004"	.0002"
M-169-204	1" - 2"
M-169-206	2" - 3"		±.0003"			.0003"
M-169-208	3" - 4"

More Information

SKU	M-169 Disk Micrometers Series
Manufacturer	Mitutoyo
Data logger	No
Resolution	.001" / 0.01mm
Measurement Range	Metric (Normal) 0 - 25mm 25 - 50mm 50 - 75mm 75 - 100mm Inch (Normal) 0 - 1" 1" - 2" 2" - 3" 3" - 4"
Other Function	No
Power Supply	-
Water resistance	No
Sensor Output Interface	No
Accuracy	Reference by Specification table depending on models
