Mitutoyo M-137 Tubular Inside Micrometers Series

SKU
M-137 Tubular Inside Micrometer Series

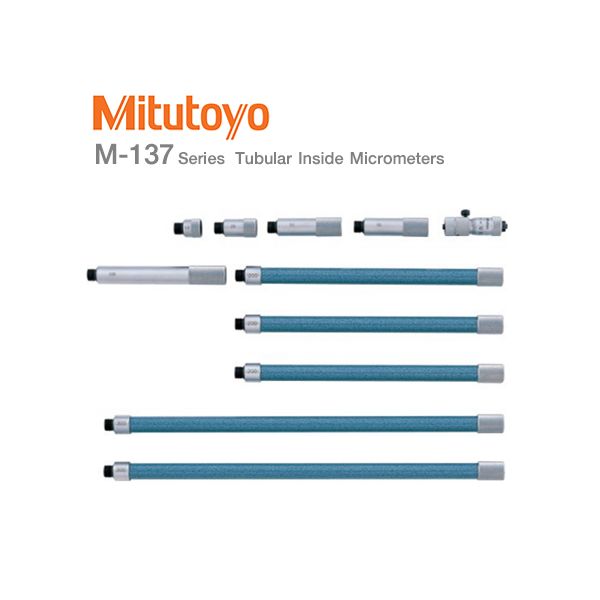

main product photo

Out of stock

Tubular Inside Micrometer
Range Measuring 50 - 1500mm, 2 - 60"
The sleeve is rotated to adjust the index line position when setting to a length standard.
Two types of measuring faces are available with or without catbide tip.
Wide range of inside measurements possible by combinning extension rods and anvils with the micrometer head.
Mitutoyo, Japan

Mitutoyo M-137-212 Tubular Inside Micrometer 2" - 12"   + ฿0.00
1
Categories: Micrometers, Mitutoyo
Mitutoyo

Mitutoyo M-137 Tubular Inside Micrometer Series

Range Measuring 50 - 1500mm, 2 - 60"
Graduation 0.01mm, .001"
Accuracy ± (3 + number of rods + maximum measurement length / 50) μm
Two types of measuring faces are available with or without catbide tip.
Mitutoyo, Japan

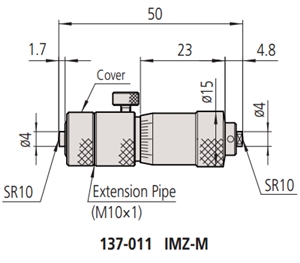

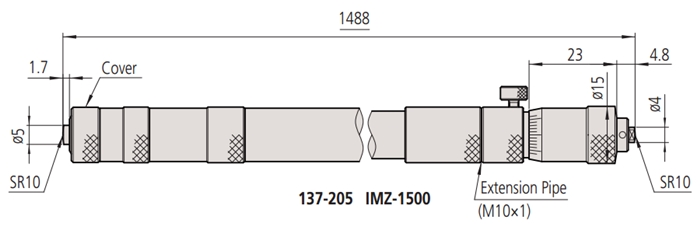

Dimention Mitutoyo M-137 Tubular Inside Micrometer Series

Mitutoyo-Series 137 Mitutoyo-Series 137



Specifications Mitutoyo M-137 Tubular Inside Micrometer Series

Metric
Model Range Graduation Micrometer head stroke Extension rods
Plain faces Carbide-tipped faces Qty Size
M-137-011 M-137-013 50 - 63mm 0.01mm 13mm - -
M-137-201 M-137-206 50 - 150mm 3 13, 25, 50mm
M-137-202 M-137-207 50 - 300mm 5 13, 25, 50 (2 pcs.), 100mm
M-137-203 M-137-208 50 - 500mm 6 13, 25, 50 (2 pcs.), 100, 200mm
M-137-204 M-137-209 50 - 1000mm 8 13, 25, 50 (2 pcs.), 100, 200 (2 pcs.), 300mm
M-137-205 M-137-210 50 - 1500mm 10 13, 25, 50 (2 pcs.), 100, 200 (3 pcs.), 300mm (2 pcs.)
Inch
Model Range Graduation Micrometer head stroke Extension rods
Plain faces Carbide-tipped faces Qty Size
M-137-012 M-137-014 2 - 2.5" .001" .5" - -
M-137-211 M-137-216 2 - 6" 3 .5", 1", 2"
M-137-212 M-137-217 2 - 12" 5 .5", 1", 2" (2 pcs.), 4"
M-137-213 M-137-218 2 - 20" 6 .5", 1", 2" (2 pcs.), 4", 8"
M-137-214 M-137-219 2 - 40" 8 .5", 1", 2" (2 pcs.), 4", 8" (2 pcs.), 12"
M-137-215 M-137-220 2 - 60" 10 .5", 1", 2", 4" (2 pcs.), 6", 8" (3 pcs.), 12" (2 pcs.)
SKUM-137 Tubular Inside Micrometer Series
ManufacturerMitutoyo
Data loggerNo
Resolution 0.01mm, .001"
Measurement Range50 - 1500mm, 2 - 60"
Other FunctionNo
Power SupplyNo Need
Water resistanceNo
Sensor Output InterfaceNo
Accuracy± (3 + number of rods + maximum measurement / 50) μm
