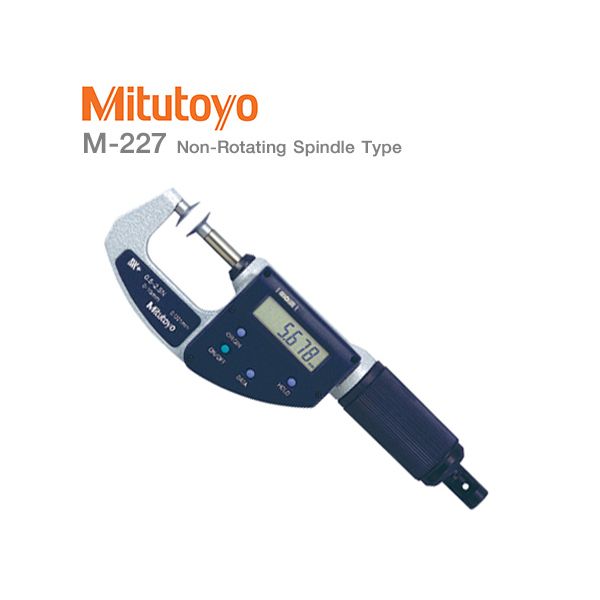

Mitutoyo M-227 Disk Micrometers Series Quickmike type with adjustable measuring force

Mitutoyo M-227 Disk Micrometers Series Quickmike type with adjustable measuring force

Measures “root tangent length” of spur gears and helical gears.
Quickmike type with adjustable measuring force
Non-rotating spindle type.
Measurable range of gear pitch: 0.5 to 6 module
Equipped with Ratchet Stop for constant measuring force.
Battery SR44 ×1
Battery Life 3 years
Mitutoyo, Japan

Quickmike type with adjustable measuring force

Digimatic micrometer dedicated to applications requiring a constant/low measuring force such as measuring wire, paper and plastic/rubber parts. Quickmike provides a speedy spindle feed of 10mm per thimble rotation, which enables widely differently sized features to be measured quickly.

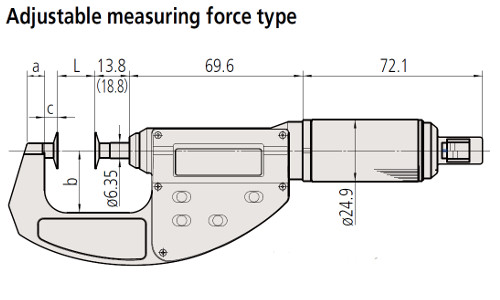

Dimension Mitutoyo M-227 Disk Micrometers Quickmike with adjustable measuring force Series

	Range	L	a	b	c
	0 - 30mm	0	8.5	36	13.5
	25 - 55mm	25	10.3	47

Specification Mitutoyo M-227 Disk Micrometers Quickmike with adjustable measuring force Series
