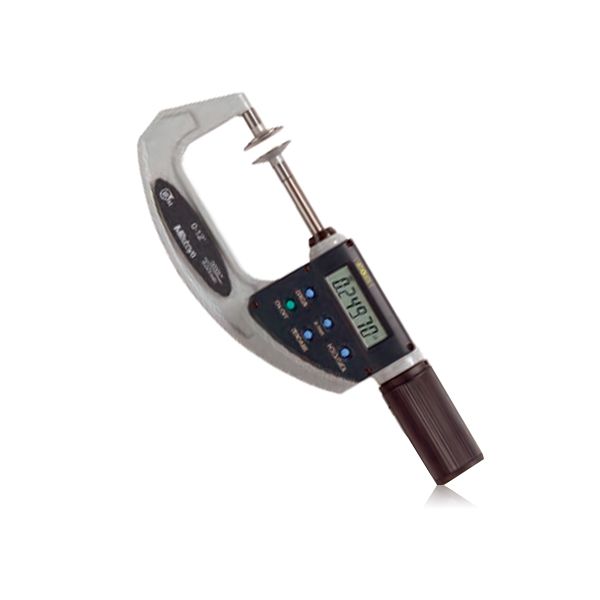

Mitutoyo M-369-411 Disk Micrometers Quickmike Type (0 - 30mm)

SKU
M-369-411
Out of stock

Measures “root tangent length” of spur gears and helical gears.
Non-rotating spindle type.
Measurable range of gear pitch: 0.5 to 6 module
Equipped with Ratchet Stop for constant measuring force.
Mitutoyo, Japan

Mitutoyo M-369-411 Disk Micrometers Quickmike Type

Measuring Range: 0 - 30mm
Resolution: 0.001mm
Accuracy: ±4μm
Anvil diameter: ø20
Flatness: 1μm
Parallelism: 4μm
Measures “root tangent length” of spur gears and helical gears.
Non-rotating spindle type.
Measurable range of gear pitch: 0.5 to 6 module
Equipped with Ratchet Stop for constant measuring force.
Battery SR44 ×1
Battery Life 1 year
Mitutoyo, Japan

Quickmike

Provides a speedy spindle feed of 10mm per thimble rotation, which enables widely differently sized features to be measured quickly.

M-369 M-369



Dimension Mitutoyo M-369 Disk Micrometers Quickmike Series

M-369 Quickmike Dimension Range L a b c
0 - 30mm 0 8.5 36 13.5
25 - 55mm 25 10.3 47



Specification Mitutoyo M-369 Disk Micrometers Series

Metric Models Range Resolution Accuracy Anvil dia. Flatness Parallelism
Normal M-369-250-30 0 - 25mm 0.001mm ±4μm ø20 1μm 4μm
M-369-251-30 25 - 50mm
M-369-252-30 50 - 75mm ±6μm 6μm
M-369-253-30 75 - 100mm
Quickmike M-369-411 0 - 30mm ±4μm 4μm
M-369-412 25 - 55mm
 Inch  Models  Range  Resolution Accuracy   Anvil dia. Flatness   Parallelism
Normal M-369-350-30 0 - 1" .00005" /
0.001mm
±.0002" ø20 .00004" .0002"
M-369-351-30 1" - 2"
M-369-352-30 2" - 3" ±.0003" .0003"
M-369-353-30 3" - 4"
Quickmike M-369-421 0 - 1.2" ±.0002" .0002"
M-369-422 1" - 2.2"
SKUM-369-411
Weight0.000000
Dimension0
ManufacturerMitutoyo
Data loggerNo
Resolution 0.001mm
Measurement Range0 - 30mm
Other FunctionNo
Power SupplyBattery SR44 x 1
Water resistanceIP54
Sensor Output InterfaceNo
Accuracy±4μm
