Mitutoyo M-369 Disk Micrometers Series Non-Rotating Spindle Type

SKU
M-369 Disk Micrometers Series

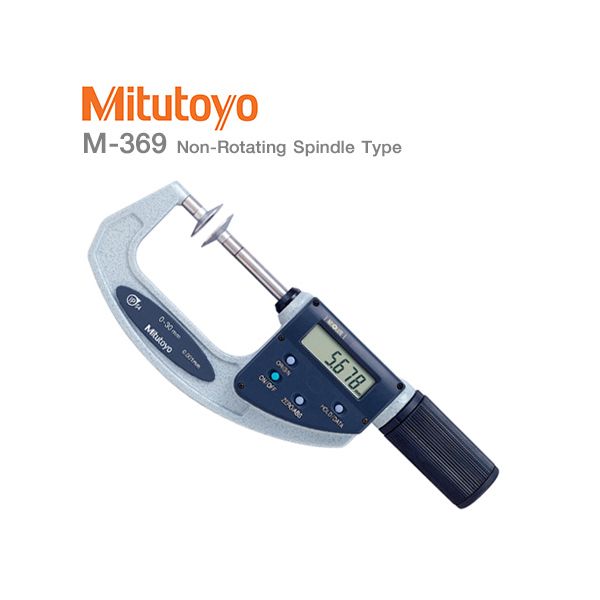

main product photo

Out of stock

Measures “root tangent length” of spur gears and helical gears.
Non-rotating spindle type.
Measurable range of gear pitch: 0.5 to 6 module
Equipped with Ratchet Stop for constant measuring force.
Mitutoyo, Japan

Mitutoyo M-369-421 Disk Micrometers Quickmike Type (0 - 1.2")   + ฿0.00
1
Categories: Micrometers, Mitutoyo
Mitutoyo

Mitutoyo M-369 Disk Micrometers Series Non-Rotating Spindle Type

Measures “root tangent length” of spur gears and helical gears.
Non-rotating spindle type.
Measurable range of gear pitch: 0.5 to 6 module
Equipped with Ratchet Stop for constant measuring force.
Battery SR44 ×1
Mitutoyo, Japan

Quickmike

Provides a speedy spindle feed of 10mm per thimble rotation, which enables widely differently sized features to be measured quickly.

M-369 M-369



Dimension Mitutoyo M-369 Disk Micrometers Series

M-369 Dimension M-369 Dimension
Range L a b c
0 - 25mm 0 7 32 12.9
25 - 50mm 25 9.8 47
50 - 75mm 50 11.2 60
75 - 100mm 75 13.5 5.5

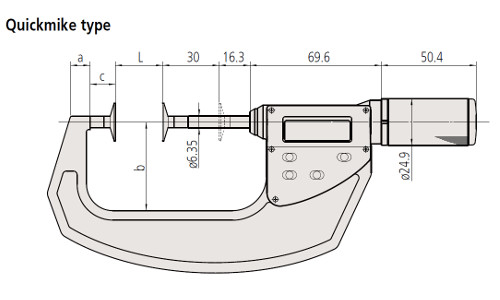

Dimension Mitutoyo M-369 Disk Micrometers Quickmike Series

M-369 Quickmike Dimension Range L a b c
0 - 30mm 0 8.5 36 13.5
25 - 55mm 25 10.3 47



Specification Mitutoyo M-369 Disk Micrometers Series

Metric Models Range Resolution Accuracy Anvil dia. Flatness Parallelism
Normal M-369-250-30 0 - 25mm 0.001mm ±4μm ø20 1μm 4μm
M-369-251-30 25 - 50mm
M-369-252-30 50 - 75mm ±6μm 6μm
M-369-253-30 75 - 100mm
Quickmike M-369-411 0 - 30mm ±4μm 4μm
M-369-412 25 - 55mm
 Inch  Models  Range  Resolution Accuracy   Anvil dia. Flatness   Parallelism
Normal M-369-350-30 0 - 1" .00005" /
0.001mm		 ±.0002" ø20 .00004" .0002"
M-369-351-30 1" - 2"
M-369-352-30 2" - 3" ±.0003" .0003"
M-369-353-30 3" - 4"
Quickmike M-369-421 0 - 1.2" ±.0002" .0002"
M-369-422 1" - 2.2"
SKUM-369 Disk Micrometers Series
ManufacturerMitutoyo
Data loggerNo
Resolution .00005" / 0.001mm
Measurement Range

Metric (Normal)

  • 0 - 25mm
  • 25 - 50mm
  • 50 - 75mm
  • 75 - 100mm

Metric (Quickmike)

  • 0 - 30mm
  • 25 - 55mm

Inch (Normal)

  • 0 - 1"
  • 1" - 2"
  • 2" - 3"
  • 3" - 4"

Metric (Quickmike)

  • 0 - 1.2"
  • 1" - 2.2"
Other FunctionNo
Power SupplySR44
Water resistanceNo
Sensor Output InterfaceNo
AccuracyReference by Specification table depending on models
