Mitutoyo M-547 Thickness Gages Series

SKU
M-547 Thickness Gages Series

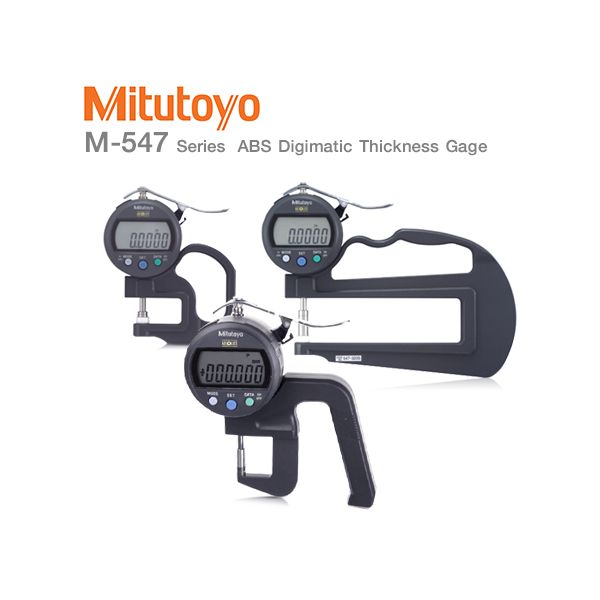

main product photo

Out of stock

Measuring Range: 0 - 12mm, 0 - .47"
Quickly measure the thickness.
Contact point and anvil are both made of ceramic: rust-free
The front face integrated molding of bezel and crystal.
Battery: SR44 ×1
Mitutoyo, Japan

Mitutoyo M-547-400S Digital Thickness Gages (0 - .47")   + ฿0.00
1
Categories: Thickness Gauges, Mitutoyo
Mitutoyo

Mitutoyo M-547 Thickness Gages Series

Measuring Range: 0 - 12mm, 0 - .47"
Quickly measure the thickness of thin products such as paper and felt.
Contact point and anvil are both made of ceramic: rust-free
Integrated molding of the bezel and crystal ensures protection against water and oil penetration via the front face.
Battery: SR44 ×1
Mitutoyo, Japan

Dimension Mitutoyo M-547 Thickness Gages Series

Normal Deep Throat
thickness gauges Mitutoyo thickness gauges Mitutoyo



Application Examples

Application Examples



Dimension Mitutoyo M-547 Thickness Gages Series

Lens thickness measurement Tube thickness measurement   Groove depth measurement
Lens thickness measurement Tube thickness measurement Groove depth measurement



Specification Mitutoyo M-547 Thickness Gages Series

Metric
Models Range Resolution Accuracy Measuring force Remarks
M-547-401 0 - 12mm 0.001mm ±3μm 3.5N or less High accuracy, carbide point anvil
M-547-301 0 - 10mm 0.01mm ±20μm 1.5N or less Standard, ceramic point/anvil
M-547-321 Deep throat, ceramic point/anvil
M-547-313 Lens thickness
M-547-315 Groove depth
M-547-360 Tube thickness
Inch/Metric ( * using ID - SX Digimatic indicator)
Models Range Resolution Accuracy Measuring force Remarks
M-547-400S 0 - .47" .00005" / 0.001mm ±.0001" / ±3μm 3.5N or less High accuracy, carbide point anvil
M-547-526S* .0001" / 0.001mm ±.0002" / ±5μm 1.5N or less Standard, ceramic point/anvil
M-547-300S 0 - .4" .0005" / 0.01mm ±.001" / ±20μm
M-547-500S* 0 - .47"
M-547-320S 0 - .4" Deep throat, ceramic point/anvil
M-547-520S* 0 - .47"
M-547-312S 0 - .4" Lens thickness
M-547-512S* 0 - .47"
M-547-316S 0 - .4" Groove depth
M-547-516S* 0 - .47"
M-547-361S 0 - .4" Tube thickness
M-547-561S* 0 - .47"
SKUM-547 Thickness Gages Series
ManufacturerMitutoyo
Data loggerNo
Resolution Refer by specification table depending on models
Measurement Range0 - 12mm, 0 - .47"
Other FunctionNo
Power SupplySR44
Water resistanceNo
Sensor Output InterfaceNo
AccuracyRefer by specification table depending on models
