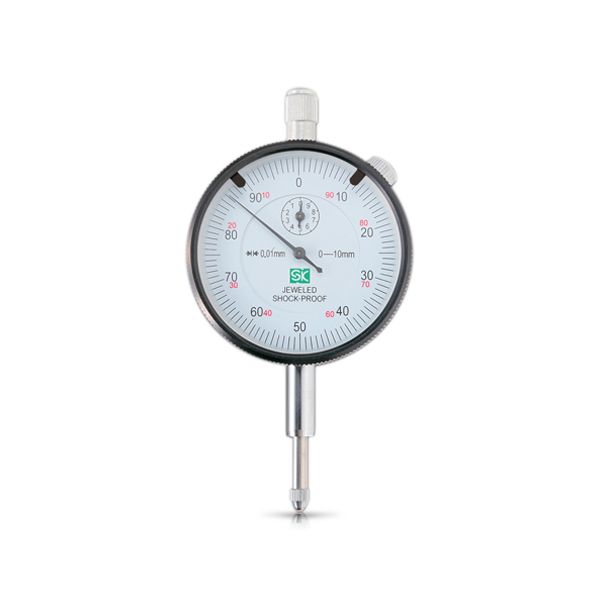

SK Niigataseiki DI-1060SC Dial Gauges with Shock-Proof (0 - 10mm)

SKU
DI-1060SC
฿0.00
Pre-Order 30-45 days
Out of stock

Range 0 - 10mm
Body: Steel
O-Ring sealed between inner and outer lid to protect from water or oil
Jeweled bearings
White scale plate
Flat type back and Center-lug back
Shock-Proof spindle mechanism protects the gear from abrupt motion.

SK Niigataseiki DI-1060SC Dial Gauges with Shock-Proof (0 - 10mm)

Range 0 - 10mm
Graduation 0.01mm
Dial Reading ±0 to 100mm
Backlash Error 3µm
Measuring Force less than 1.5N
1 Revolution 1mm
Indication Error 1/10 rev 8µm
Error over entire range ±14µm
Repeatability 5µm
Body: Steel
O-Ring sealed between inner and outer lid to protect from water or oil
Jeweled bearings
White scale plate
Flat type back and Center-lug back
Shock-Proof spindle mechanism protects the gear from abrupt motion.

DimensionSK Niigataseiki DI-Dial Gauges Series

Model No. A B C D E F G H I
DI-0160SC 40 61 60 16 20 18 13 55 9
DI-0560SC 45 67 60 16 20 18 19 55 9
DI-1060SC 45 67 60 16 20 18 19 55 9



Specification SK Niigataseiki DI-Dial Gauges Series

Model No. Graduation (mm) Measuring Range (mm) Dial Reading (mm) Blacklash Error (µm) Measuring Force less than (N) 1 Revolution (mm) Indication Error 1/10rev (µm) Error.over entire.range (µm) Repeatability (µm) Weight
DI-0160SC 0.001 0 - 1 ±0 - 100 2.5 3 0.1 3.5 ±5 0.4 145g
DI-0560SC 0.01 0 - 5 ±0 - 100 3 1.5 1 8 ±12 3 125g
DI-1060SC 0.01 0 - 10 ±0 - 100 3 1.5 1 8 ±14 3 125g
SKUDI-1060SC
Weight125.000000
Dimension0
ManufacturerSK Niigata Seki
