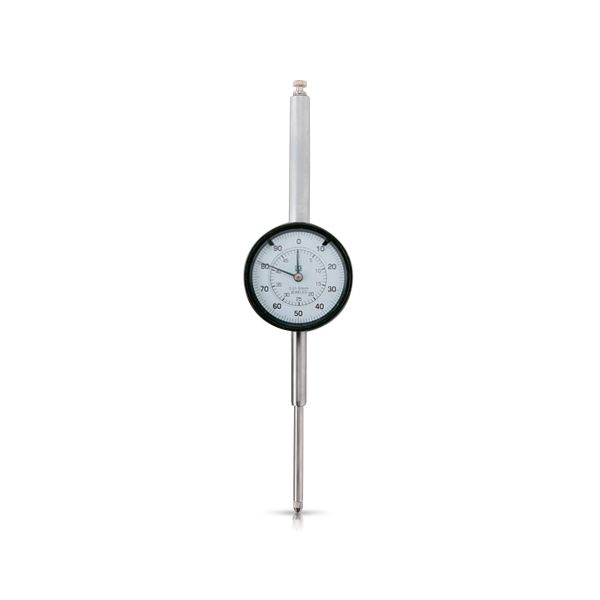

SK Niigataseiki DI-5058 Long Stroke Dial Gauges (0 - 50mm)

SKU
DI-5058
฿0.00
Pre-Order 30-45 days
Out of stock

Long stroke measurement
Body: steel
O-Ring sealed between inner and outer lid to protect from water or oil
Jeweled bearings
White scale plate
Flat type back and Center-lug back

SK Niigataseiki DI-5058 Long Stroke Dial Gauges (0 - 50mm)

Range 0 - 50mm
Graduation 0.01mm
Dial Reading 0 to 100mm
Backlash Error 9µm
Measuring Force less than 3.5N
1 Revolution 1mm
Indication Error 1/10 rev 15µm
Error over entire range ±40µm
Repeatability 5µm
Long stroke measurement
Body: steel
O-Ring sealed between inner and outer lid to protect from water or oil
Jeweled bearings
White scale plate
Flat type back and Center-lug back

DimensionSK Niigataseiki DI-Long Stroke Dial Gauges Series

Niigataseiki Dial gauges Model No. A B C D E F G H I
DI-3058 37.5 68.5 58 19 19.5 19.5 38 53.5 8.5
DI-5058 108.5 126 58 19 19.5 39.5 57.5 53.5 8.5
DI-8058 138.5 168.5 58 19 19.5 51.5 88 53.5 8.5
DI-10078 167.5 208 78 20 20.5 61 108 69 10



Specification Long Stroke Dial Gauges

Model No. Graduation (mm) Measuring Range (mm) Dial Reading (mm) Blacklash Error (µm) Measuring Force less than (N) 1 Revolution (mm) Indication Error 1/10rev (µm) Error over entire range (µm) Repeatability (µm) Weight
DI-3058 0.01mm 0 - 30 0 - 100 7 3.5 1 14 ±35 5 210g
DI-5058 0.01mm 0 - 50 0 - 100 9 3.5 1 15 ±40 5 270g
DI-8058 0.01mm 0 - 80 0 - 100 11 4.0 1 - ±50 6 290g
DI-10078 0.01mm 0 - 100 0 - 100 15 4.5 1 - ±50 6 530g
SKUDI-5058
Weight270.000000
Dimension0
ManufacturerSK Niigata Seki
