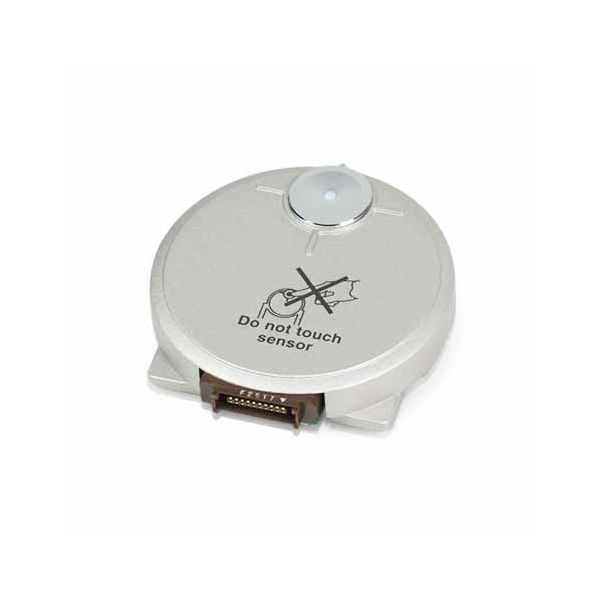

TOPCON UD-T40T2 Detector for UVR-T2 (350 - 490 nm)

SKU
UD-T40T2
฿0.00
Pre-Order Item
Out of stock

Detector for UVR-T2
Measurement wavelength range 350 - 490nm
Peak sensitivity wavelength 410nm
Diameter of detector window ø5mm
Calibration light source: Standard light source A

TOPCON UD-T40T2 Detector for UVR-T2 (350 - 490 nm)

System Diagram Dimension
Detector unit UD-T25T2 UD-T36T2 UD-T40T2
Measurement wavelength range 230 - 280 nm 300 - 390 nm 350 - 490 nm
Peak sensitivity wavelength Approx. 254 nm Approx. 355 nm Approx. 410 nm
Irradiance (Peak irradiance)
mW/cm2
Range Measurement range Range Measurement range Range Measurement range
1 0.01 - 30.00 1 0.01 - 60.00 1 0.01 - 30.00
2 0.1 - 300.0 2 0.1 - 600.0 2 0.1 - 300.0
3 1.0 - 3,000 3 1 - 6,000 3 1 - 3,000
Integral irradiance
mJ/cm2
Range Measurement range Range Measurement range Range Measurement range
1 0.01 - 999.99 1 0.01 - 999.99 1 0.01 - 999.99
2 0.1 - 9,999.9 2 0.1 - 9,999.9 2 0.1 - 9,999.9
3 1 - 99,999 3 1 - 99,999 3 1 - 99,999
Analog output
Irradiance for 1mV
(Unit : mW/cm2)
Range Measurement range Range Measurement range Range Measurement range
1 0.015 1 0.03 1 0.015
2 0.15 2 0.3 2 0.15
3 1.5 3 3 3 1.5
Calibration light source UD-T25T2 : GL-15 UD-T36T2 : FL-20S-BLB UD-T40T2 : Standard light source A
Detector element Silicon photo diode
Diameter of detector window φ5 mm  φ3 mm
Dimensions ø67 × 16mm
SKUUD-T40T2
Weight0.000000
Dimensionø67 × 16mm
ManufacturerTOPCON
Data loggerNo
Solar Power RangeNo
UV measurementUVC
Switching Lx RangeNo
UV measurement range350 - 490nm
Lux measurement rangeNo
Other FunctionNo
Power Supply-
Resolution-
Water resistanceNo
Sensor Output InterfaceNo
Accuracy-
