U_RD CTT-CLS-CV series Current converter integrated clamp type sensor and converter (50A to 500A)

Product Name	Qty
U_RD CTT-10CLS-CV50 Split Core Current Transformer \| Output 0-5 Vdc (50A) ฿2,100.00
U_RD CTT-16CLS-CV100 Split Core Current Transformer \| Output 0-5 Vdc (100A) ฿2,200.00
U_RD CTT-24CLS-CV250 Split Core Current Transformer \| Output 0-5 Vdc (250A) ฿3,000.00 Pre-Order Item
U_RD CTT-36CLS-CV500 Split Core Current Transformer \| Output 0-5 Vdc (500A) ฿3,950.00

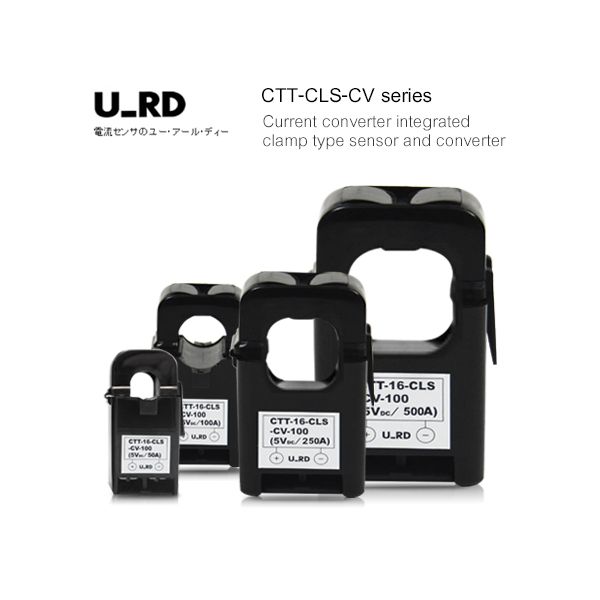

CTT-CLS-CV Current converter integrated clamp type sensor and converter. With compact size, extremely simple to mount in limit space. Suitable for commercial power supply, average rectifirer type current converter of AC current detection and DC voltage output.

CTT-CLS-CV series available for wide range of current from 0 to 50A and 0 to 500A (depend on models)

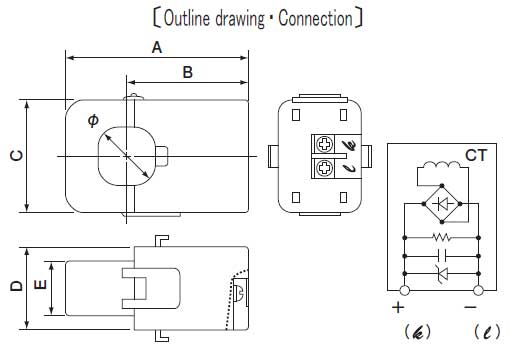

Dimensions

Model	CTT-10-CLS-CV5	CTT-10-CLS-CV10	CTT-10-CLS-CV25	CTT-10-CLS-CV50	CTT-16-CLS-CV100	CTT-24-CLS-CV250	CTT-36-CLS-CV500
A	50				55	74.5	91
B	37				40.5	49.5	61
C	23				29.5	45	57
D	26				31	34	40.5
E	14.5				19	22	22
Ø	10				16	24	36
Weight	45 g				75 g	200 g	290 g

Specifications

Model	CTT-10-CLS-CV5	CTT-10-CLS-CV10	CTT-10-CLS-CV25	CTT-10-CLS-CV50	CTT-16-CLS-CV100	CTT-24-CLS-CV250	CTT-36-CLS-CV500
Rating current (50/60Hz)	5 A	10 A	25 A	50 A	100 A	250 A	500 A
Output voltage	0 to 5 VDC/0 to rating current, build in 7.5VDC limitter (Recommended load resistor ≥ 10MΩ)
Maximum current	100% (continuous), 150% (1 min)
Linearity	±2% FS dynamic range 1:100 (50/60Hz sine wave)
Output impedance	7kΩ	8.5kΩ	6.8kΩ	6.2kΩ	5.8kΩ	5.8kΩ	5.8kΩ
Response time	300ms
Output ripple	Within 5% of output
Withstand voltage	AC 2000V (50/60Hz), 1 min (Core-output terminal in a lump)
Insulation resistance	DC 500V, ≥ 100MΩ (Core-output terminal in a lump)
Operating temperature	-20 to 50°C, ≤ 80%RH, No condensation, for indoor assembly, free direction for setting
Storage temperature	-30 to 90°C, ≤ 85%RH, No condensation
Fitting repeatability	≈100 times
Output terminal	2XM3 screw terminal with terminal cover
Screw torque	0.3N•m

More Information

SKU	CTT-CLS-CV series
Manufacturer	U_RD

Reviews

Download

PDF Download

Product Name	Qty
U_RD CTT-10CLS-CV50 Split Core Current Transformer \| Output 0-5 Vdc (50A) ฿2,100.00
U_RD CTT-16CLS-CV100 Split Core Current Transformer \| Output 0-5 Vdc (100A) ฿2,200.00
U_RD CTT-24CLS-CV250 Split Core Current Transformer \| Output 0-5 Vdc (250A) ฿3,000.00 Pre-Order Item
U_RD CTT-36CLS-CV500 Split Core Current Transformer \| Output 0-5 Vdc (500A) ฿3,950.00

U_RD CTT-CLS-CV series Split Core Current Transformer | Output 0-5 Vdc
