U_RD CTT-16CLS-CV100 Split Core Current Transformer | Output 0-5 Vdc (100A)

SKU
CTT-16-CLS-CV-100

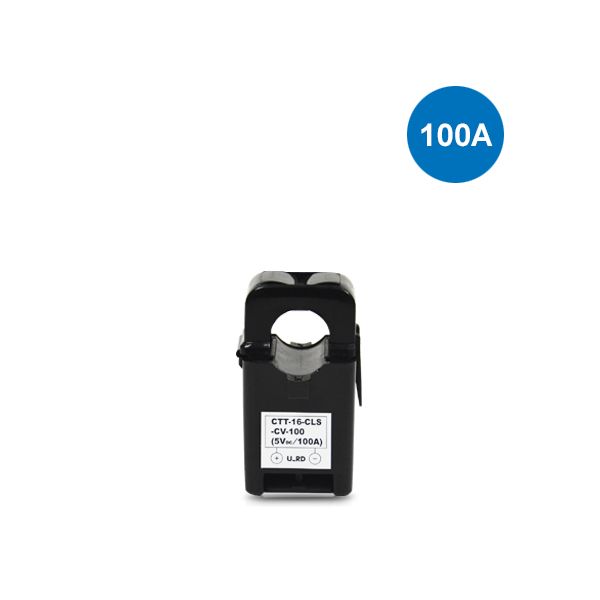

main product photo
฿2,200.00
In stock

AC Current Converter
Wide range of current: 0 to 100A
Only for AC 50/60 Hz
Without power supply
Output 0 to 5 VDC measure signal directly from sensor
Extremely simple to mount with integrated mode of clamp type sensor and converter

สอบถาม
Category: U_RD
U_RD

U_RD CTT-16CLS-CV100 Current converter integrated clamp type sensor and converter (100A)

CTT-CLS-CV Current converter integrated clamp type sensor and converter. With compact size, extremely simple to mount in limit space. Suitable for commercial power supply, average rectifirer type current converter of AC current detection and DC voltage output.

CTT-CLS-CV series available for wide range of current from 0 to 50A and 0 to 500A (depend on models)

Dimension A 55
B 40.5
C 29.5
D 31
E 19
Ø 16
Weight 75 g
Rating current 100 A (50/60Hz)
Output voltage 0 to 5 VDC/0 to rating current, build in 7.5VDC limitter (Recommended load resistor ≥ 10MΩ)
Maximum current 100% (continuous), 150% (1 min)
Linearity ±2% FS dynamic range 1:100 (50/60Hz sine wave)
Output impedance 5.8kΩ
Response time 300ms
Output ripple Within 5% of output
Withstand voltage AC 2000V (50/60Hz), 1 min (Core-output terminal in a lump)
Insulation resistance DC 500V, ≥ 100MΩ (Core-output terminal in a lump)
Operating temperature -20 to 50°C, ≤ 80%RH, No condensation, for indoor assembly, free direction for setting
Storage temperature -30 to 90°C, ≤ 85%RH, No condensation
Fitting repeatability ≈100 times
Output terminal 2XM3 screw terminal with terminal cover
Screw torque 0.3N•m
SKUCTT-16-CLS-CV-100
Weight75.000000
Dimension29.5 x 31 x 55 mm
ManufacturerU_RD
Your Rating

PDF Download PDF Download
