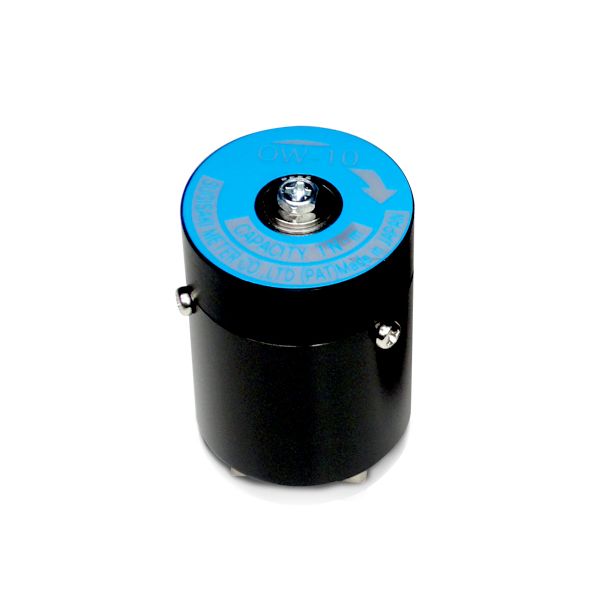

CEDAR OW-10 Measuring Joint (1N•m)

SKU

OW-10

฿4,200.00

Pre-Order 30-45 days

Out of stock

ช่วงการวัด 1 N•m

ใช้งานร่วมกับ Torque Meter รุ่น CEDAR DI-9M Series

ยี่ห้อ Cedar, JAPAN

Category: CEDAR

CEDAR OW -10 Measuring Joint (1 N•m)

ใช้งานร่วมกับ Torque Meter รุ่น CEDAR DI-9M Series

ยี่ห้อ Cedar, JAPAN

MEASURING JOINT OW series
		Since our company developed the buffer with little influence of fricative, stable measurement could be performed Moreover ,it does not need to reverse-rotate at the time of measurement, and work efficiency improved.
Specification		Type
Specification		OW-025	OW-10	OW-20	OW-60
Measuring range N•m		0.25 N•m	1 N•m	2 N•m	6 N•m
Mechanical life (times)		10,000	8,000	5,000	5,000
Outer diameter size (mm)	Bit engagement part (screw part)	M2.6 cross recess screw	M3 cross recess screw	M4 cross recess screw	M6 cross recess screw
	Bit engagement part (screw part)	The standard screw is cross recess screw but they may be altered as necessary
	Outside diameter	φ28	φ32	φ32	φ38
	Height	44	51	51	69
	Installation	20 square × 4(t)

ลักษณะการใช้งาน OW Series ร่วมกับ CEDAR DI-9M Series
CEDAR DI-9M-08

CEDAR DI-9M-08

อุปกรณ์มาตรฐาน

CEDAR OW-10
