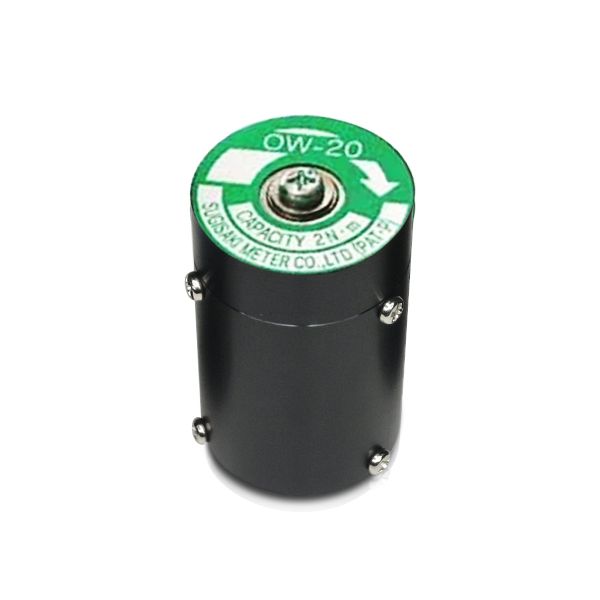

CEDAR OW-20 Measuring Joint (2 N•m)

SKU
OW-20
฿4,400.00
Pre-Order 30-45 days
Out of stock

ช่วงการวัด 2 N•m

ใช้งานร่วมกับ Torque Meter รุ่น CEDAR DI-9M Series

ยี่ห้อ Cedar, JAPAN

Add to Compare

CEDAR OW -20 Measuring Joint (2 N•m)

ใช้งานร่วมกับ Torque Meter รุ่น CEDAR DI-9M Series

ยี่ห้อ Cedar, JAPAN



MEASURING JOINT OW series

Since our company developed the buffer with little

influence of fricative, stable measurement could be

performed Moreover ,it does not need to reverse-rotate

at the time of  measurement, and work efficiency  improved.

Specification Type
OW-025 OW-10 OW-20 OW-60
Measuring range N•m 0.25 N•m 1 N•m N•m N•m
Mechanical life (times) 10,000 8,000 5,000 5,000
Outer diameter
size (mm)
Bit engagement
part (screw part)
M2.6 cross
recess screw
M3 cross
recess screw
M4 cross
recess screw
M6 cross
recess screw
The standard screw is cross recess screw
but they may be altered as necessary
Outside diameter φ28 φ32 φ32 φ38
Height 44 51 51 69
Installation 20 square × 4(t)



ลักษณะการใช้งาน OW Series ร่วมกับ CEDAR DI-9M Series
CEDAR DI-9M-08

CEDAR DI-9M-08

SKUOW-20
Weight300.000000
Dimensionφ32/ 51 (un-compressing)
ManufacturerCEDAR
