Fluke TiS Series Infrared Cameras

SKU
Fluke TiS Series

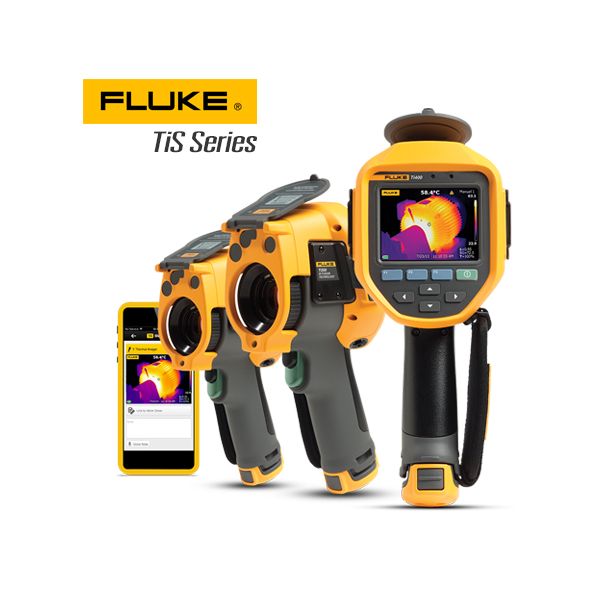

main product photo
฿0.00
Pre-Order Item

Out of stock

TiS Performance Series Infrared Cameras
Up to 320 x 240 resolution
Save the time to get focus with manual or fixed focus
Securely store and manage your images from anywhere
Edit and analyze images to create and send reports
from your smartphone directly from the field with Fluke Connect

TiS Series 9 models available

TiS75 TiS65 TiS60 TiS55 TiS50 TiS45 TiS40 TiS20 TiS10

Price as configured ฿0.00

Pre-Order Item
0
Category: FLUKE
Fluke

The Fluke Tis Series 9 NEW CAMERAS (Infrared Cameras)

The Fluke Performance Series Built for performance with features that help you easily and quickly identify problems before they become expensive failures.
Get improved resolution that delivers the right image quality you need to make the proper diagnosis:

  • Up to 320 x 240 resolution
  • Reduce the amount of time it takes to get an in-focus image with manual or fixed focus options
  • Securely store and manage your images from anywhere
    – WiFi upload to Fluke Cloud™
    – Free storage with Fluke Cloud™
    – Share images in real-time with Fluke Connect
    – Removable 4GB micro SD card
    – Voice annotation*

• Edit and analyze images then create and send reports from your smartphone directly from the field with Fluke Connect
• IR-Fusion® Technology The instant blending of visible light and infrared, along with picture-in-picture mode, easily reveal both problem and location.

Detailed specifications

Model TiS75 TiS65 TiS60 TiS55 TiS50 TiS45 TiS40 TiS20 TiS10
Key features
IFOV (spatial resolution)  2.0 mRad  2.4 mRad  2.4 mRad 2.8 mRad 2.8 mRad  3.9 mRad 3.9 mRad 5.2 mRad   7.8 mRad
Detector resolution  320 x 240 260 x 195 260 x 195 220 x 165 220 x 165 160 x120 160 x120 120 x 90 80 x 60
Field of view
Distance-to-Spot 504:1 409:1 409:1 346:1 346:1 252:1 252:1 189:1 189:1
Wireless connectivity Yes
Fluke Connect compatible Yes (where available)
IR-Fusion® technology
AutoBlend™ mode 5 presets (0 %, 25 %, 50 %, 75 %, 100 %) 3 presets (0 %, 50 %, 100 %) —
Picture-In-Picture (PIP) 5 presets (0 %, 25 %, 50 %, 75 %, 100 %)  —
Focus system Manual focus,
Minimum focus distance, 0.15 m (6 in)		 Fixed focus,
Minimum focus distance 0.45 m (1.5 ft)		 Manual focus,
Minimum focus distance, 0.15 m (6 in)		 Fixed focus,
Minimum focus distance 0.45 m (1.5 ft)		 Manual focus,
Minimum focus distance, 0.15 m (6 in)		 Fixed focus,
Minimum focus distance 0.45 m (1.5 ft)
Ruggedized display 3.5 inch (landscape) 320 x 240 LCD
Rugged, ergonomic design for one-handed use Yes
Thermal sensitivity (NETD) ≤ 0.08 °C at 30 °C target temp (80 mK ≤ 0.09 °C at 30 °C
target temp (90 mK)		 ≤ 0.10 °C at 30 °C target temp (100 mK) ≤ 0.15 °C at 30 °C target temp (150 mK)
Temperature measurement range (not calibrated below -10 °C) -20 °C to +550 °C -20 °C to +450 °C -20 °C to +350 °C -20 °C to +250 °C
Level and span Smooth auto and manual scaling
Fast auto toggle between manual and automodes Yes
Fast auto-rescale in manual mode Yes Yes
Minimum span (in manual mode) 2.5 °C
Minimum span (in auto mode) 5 °C 5 °C
Built-in digital camera (visible light) 5MP
Frame rate 9 Hz or 30 Hz 9 Hz 9 Hz or 30 Hz 9 Hz 9 Hz or 30 Hz 9 Hz


Laser pointer Yes —
Data storage and image capture
Extensive SD memory system Internal 4GB memory and 4GB micro SD card Internal 4GB memory (optional 4GB micro SD card sold separately)
Image capture, review, save mechanism One-handed image capture, review, and save capability
Image file formats Non-radiometric (.bmp) or (.jpeg) or fully-radiometric (.is2); No analysis software required for non-radiometric (.bmp, .jpg) files
Instant Upload Upload captured images to Fluke Connect server with the use of a Wifi connection
Memory review Thumbnail review
Software SmartView® software -full analysis and reporting software and Fluke Connect® (where available)
Export file formats with SmartView® software BMP, DIB, GIF, JPE, JFIF, JPEG, JPG, PNG, TIF, and TIFF
Voice annotation Yes, Bluetooth Headset (sold separately) —
IR-PhotoNotes™ Yes (3 images) Yes (1 image) —
Standard video recording Yes —
Radiometric video recording Yes —
Video file formats Non-radiometric (MPEG - encoded .AVI) and fully radiometric (.IS3) —
Battery
Batteries
(field-replaceable, rechargeable)		 Two lithium ion smart battery packs with fivesegmentLED display to show charge leve One lithium ion smart battery packs with five-segment LED display to show charge level
Battery life Four+ hours
Battery charge time 2.5 hours to full charge
Battery charging system Two-bay battery charger or in- imager charging In-imager charging (optional external charger sold separately)
AC operation AC operation with included power supply (100 V AC to 240 V AC, 50/60 Hz)
Temperature measurement
Accuracy ±2°C or 2% (at 25°C nominal, whichever is greater)
On-screen emissivity correction Yes (both value and table)
On-screen reflected background temperature compensation Yes
On-screen transmission correction Yes — Yes — Yes —
Standard palettes 8: Ironbow, Blue-Red, High-Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted 7: Ironbow, Blue-Red, HighContrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted 6: Ironbow, Blue-Red, High-Contrast, Amber, Hot Metal, Grayscale 3: Ironbow, Blue-Red, Grayscale
Ultra Contrast™ palettes 8: Ironbow Ultra, Blue-Red Ultra, High-Contrast Ultra, Amber Ultra, Amber Inverted Ultra, Hot Metal Ultra, Grayscale Ultra, Grayscale Inverted Ultra —
SKUFluke TiS Series
ManufacturerFluke
Data loggerNo
Field of View (FOV)No
Detector ResolutionDepend on Model
Resolution No
Measurement RangeNo
Other FunctionNo
Power Supplyแบตเตอรี่แบบรีชาร์จ (Lithium) มาพร้อม Adapter
Water resistanceNo
Sensor Output InterfaceNo
Accuracy± Depend on Model
