Fluke TiS65 Infrared Camera (D:S 409:1)

SKU
Fluke-TiS65

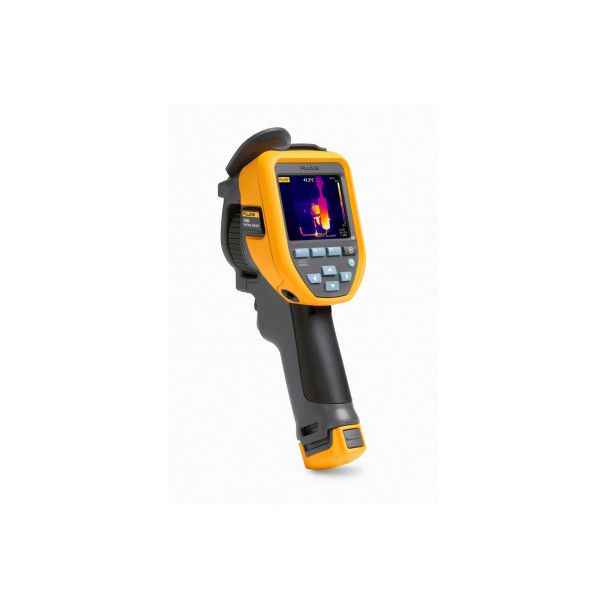

main product photo
Out of stock

Infrared Camera
Detector resolution: 260 x 195
Field of view: 35.7° × 26.8°
Distance to spot: 409:1
Temperature Range -20 to 550℃
Fluke, USA

สอบถาม
Categories: Discontinued Products, FLUKE
Fluke

Fluke TiS65 Infrared Camera (D:S 409:1)

Performance built for everyday troubleshooting

  • Scan large areas fast with fixed focus simplicity

  • See the detail with a D:S of 409:1

  • Clearly see what you are inspecting with a 3.5 inch, 320x240 LCD screen - 33% more viewing area compared to a 3.0 inch LCD screen

  • Prevent unexpected power loss – replaceable smart batteries with an LED charge level indicator

  • Rugged and reliable
Securely store and manage your images from anywhere

  • WiFi upload to Fluke Cloud™ Storage

  • Free Storage upto 5GB (Fluke Cloud™ Storage)

  • Store thousands of images with internal 4 GB memory and optional 4 GB micro SD card
Save time and increase productivity in the field with Fluke Connect®

  • Save time and eliminate the need to go back to the office to create reports, now you can create and email reports from the jobsite

  • Capture multiple measurement types including electrical, mechanical, vibration, temperature and thermal all in one report
FLUKE TIS65 Application
FLUKE TIS65 Application
Key Features
IFOV (spatial resolution) 2.4 mRad
Detector resolution 260 x 195
Field of view 35.7° × 26.8°
Distance to spot 409:1
Wireless connectivity Yes
Fluke Connect® app compatible Yes (where available)
IR-Fusion® Technology
AutoBlend™ mode 5 presets (0%, 25%, 50%, 75%, 100%)
Picture-In-Picture (PIP) 5 presets (0%, 25%, 50%, 75%, 100%)
Focus system Manual focus, Minimum focus distance, 0.15 m
Ruggedized display 3.5 inch (landscape) 320 × 240 LCD
Rugged, ergonomic design for one-handed use Yes
Thermal sensitivity (NETD) ≤0.08°C at 30°C target temp (80 mK)
Temperature measurement range
(not calibrated below -10°C)		 -20°C to 550°C
Level and span Smooth auto and manual scaling
Fast auto toggle between manual and auto modes Yes
Fast auto-rescale in manual mode Yes
Minimum span (manual mode) 2.5°C
Minimum span (auto mode) 5°C
Built-in digital camera (visible light) 5 MP
Frame rate 9 Hz or 30 Hz
Laser pointer Yes
Data storage and Image Capture
Extensive SD memory system Internal 4 GB memory and 4 GB micro SD card
Image capture, review, save mechanism One-handed image capture, review, and save capability
Image file formats Non-radiometric (.bmp) or (.jpeg) or fully-radiometric (.is2);
No analysis software required for non-radiometric (.bmp, .jpg) files
Instant Upload Instantly upload captured images to Fluke Connect server with the use of a WiFi connection
Memory review Thumbnail review
Software SmartView® software - full analysis and reporting software and Fluke Connect® (where available)
Export file formats with SmartView® software BMP, DIB, GIF, JPE, JFIF, JPEG, JPG, PNG, TIF, and TIFF
Voice annotation Bluetooth Headset
IR-PhotoNotes™ 3 images
Standard video recording Yes
Radiometric video recording Yes
Video file formats Non-radiometric (MPEG - encoded .AVI) and fully radiometric (.IS3)
Battery
Batteries (field-replaceable, rechargeable) Two lithium ion smart battery pack with five-segment LED display to show charge level
Battery life Four+ hours
Battery charge time 2.5 hours to full charge
Battery charging system Two-bay battery charger or in-imager charging
AC operation AC operation with included power supply (100 V AC to 240 V AC, 50/60 Hz)
Temperature Measurement
Accuracy ±2°C or 2% (at 25°C nominal, whichever is greater)
On-screen emissivity correction Yes (both value and table)
On-screen reflected background temperature compensation Yes
On-screen transmission correction Yes
Color Palettes
Standard palettes 8: Ironbow, Blue-Red, High-Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted
Ultra Contrast™ palettes 8: Ironbow Ultra, Blue-Red Ultra, High-Contrast Ultra, Amber Ultra, Amber Inverted Ultra, Hot Metal Ultra, Grayscale Ultra, Grayscale Inverted Ultra
General Specifications
Color alarms (temperature alarms) High temperature, low temperature, Isotherms
Infrared spectral band 7.5 μM to 14μm
Operating temperature -10°C to 50°C
Storage temperature -20°C to 50°C
Relative humidity 10% to 95%, non-condensing
Center-point temperature Yes
Spot temperature Yes
User-definable spot markers 3
Center box Expandable-contractible measurement box with MIN-MAX-AVG temp.
Safety standards EN 61010-1 : CAT none, pollution degree 2, EN 60825-1 : Class 2, EN 60529, EN 62133 (lithium battery)
Electromagnetic compatibility EN 61326-1 : 2006, EN 55011 : Class A, EN 61000-4-2, EN 61000-4-3
C Tick IEC/EN 61326-1
US FCC EN61326-1 : FCC Part 5, EN 55011 : Class A, EN 61000-4-2, EN 61000-4-3
Vibration and shock 2G, IEC 68-2-6 and 25G, IEC 68-2-29
Drop Engineered to withstand 2m drop
Size (H × W × L) 267 x 101 x 145mm
Weight (battery included) Fixed focus .72kg, Manual focus .77kg
Enclosure rating IP54 (protected against dust, limited ingress; protection against water spray form all directions)
Supported languages Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish
SKUFluke-TiS65
Weight770.000000
Dimension267 x 101 x 145mm
ManufacturerFluke
Data loggerYes
Field of View (FOV)35.7 °H x 26.8 °V
Detector Resolution260 x 195
Resolution 2.4 mRad
Measurement Range-20 to 550°C
Other FunctionNo
Power SupplyTwo lithium ion smart battery pack / AC operation with included power supply
Water resistanceIP54
Sensor Output InterfaceNo
Accuracy± 2 °C or 2 % (at 25 °C nominal, whichever is greater)
Your Rating
PDF Download PDF Download

Accessories Includes:

  • Thermal imager
  • AC charger / power supply with mains adapters for battery chatging and AC operation
  • One rugged lithium ion smart battery
  • Soft transport bag
  • Statement of  factory calibration
  • Quick start guide
  • Safety sheet
