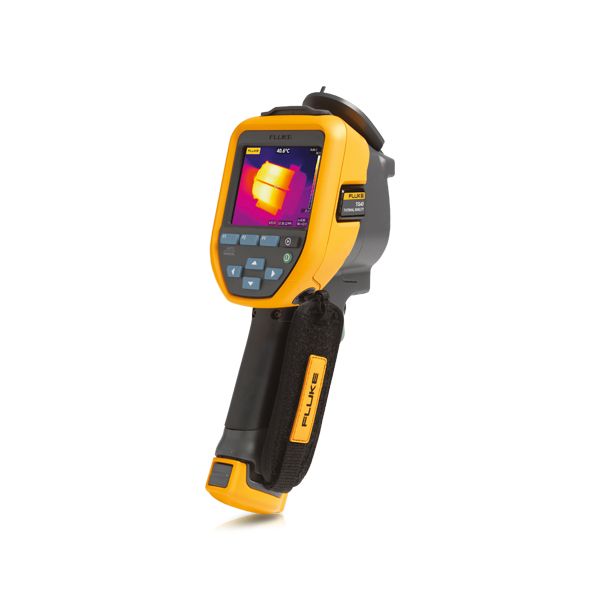

Fluke TiS20 Infrared Camera (D:S 189:1)

SKU
Fluke-TiS20
Out of stock

Infrared Camera
Detector resolution: 120 × 90
Field of view: 35.7° × 26.8°
Distance to spot: 189:1
Temperature Range -20 to 350℃
Fluke, USA

Fluke TiS20 Infrared Camera (D:S 189:1)

Performance built for everyday troubleshooting
  • Scan large areas fast with fixed focus simplicity

  • See the detail with a D:S of 189:1

  • Clearly see what you are inspecting with a 3.5 inch, 320x240 LCD screen - 33% more viewing area compared to a 3.0 inch LCD screen

  • Prevent unexpected power loss – replaceable smart batteries with an LED charge level indicator

  • Rugged and reliable

Securely store and manage your images from anywhere
  • WiFi upload to Fluke Cloud Storage

  • Free Storage upto 5GB (Fluke Cloud Storage)

  • Store thousands of images with internal 4 GB memory and optional 4 GB micro SD card

Save time and increase productivity in the field with Fluke Connect®
  • Save time and eliminate the need to go back to the office to create reports, now you can create and email reports from the jobsite

  • Capture multiple measurement types including electrical, mechanical, vibration, temperature and thermal all in one report

Key Features
IFOV (spatial resolution) 5.2 mRad
Detector resolution 120 × 90
Field of view 35.7° × 26.8°
Distance to spot 189:1
Wireless connectivity Yes
Fluke Connect® app compatible Yes (where available)
IR-Fusion® Technology
AutoBlend mode 3 presets (0%, 50%, 100%)
Focus system Fixed focus, Minimum focus distance 0.45m
Ruggedized display 3.5 inch (landscape) 320 × 240 LCD
Rugged, ergonomic design for one-handed use Yes
Thermal sensitivity (NETD) ≤0.10°C at 30°C target temp (100 mK)
Temperature measurement range
(not calibrated below -10°C)
-20°C to 350°C
Level and span Smooth auto and manual scaling
Fast auto toggle between manual and auto modes Yes
Fast auto-rescale in manual mode Yes
Minimum span (manual mode) 2.5°C
Minimum span (auto mode) 5°C
Built-in digital camera (visible light) 5 MP
Frame rate 9 Hz
Data storage and Image Capture
Extensive SD memory system Internal 4 GB (optional 4 GB micro SD card sold separately)
Image capture, review, save mechanism One-handed image capture, review, and save capability
Image file formats Non-radiometric (.bmp) or (.jpeg) or fully-radiometric (.is2);
No analysis software required for non-radiometric (.bmp, .jpg) files
Instant Upload Instantly upload captured images to Fluke Connect server with the use of a WiFi connection
Memory review Thumbnail review
Software SmartView® software - full analysis and reporting software and Fluke Connect® (where available)
Export file formats with SmartView® software BMP, DIB, GIF, JPE, JFIF, JPEG, JPG, PNG, TIF, and TIFF
Battery
Batteries (field-replaceable, rechargeable) One lithium ion smart battery pack with five-segment LED display to show charge level
Battery life Four+ hours
Battery charge time 2.5 hours to full charge
Battery charging system In-imager charging (optional external charger sold separately)
AC operation AC operation with included power supply (100 V AC to 240 V AC, 50/60 Hz)
Temperature Measurement
Accuracy ±2°C or 2% (at 25°C nominal, whichever is greater)
On-screen emissivity correction Yes (both value and table)
On-screen reflected background temperature compensation Yes
Color Palettes
Standard palettes 6: Ironbow, Blue-Red, High-Contrast, Amber, Hot Metal, Grayscale
General Specifications
Infrared spectral band 7.5 μM to 14μm
Operating temperature -10°C to 50°C
Storage temperature -20°C to 50°C
Relative humidity 10% to 95%, non-condensing
Center-point temperature Yes
Spot temperature Yes
Safety standards EN 61010-1 : CAT none, pollution degree 2, EN 60825-1 : Class 2, EN 60529, EN 62133 (lithium battery)
Electromagnetic compatibility EN 61326-1 : 2006, EN 55011 : Class A, EN 61000-4-2, EN 61000-4-3
C Tick IEC/EN 61326-1
US FCC EN61326-1 : FCC Part 5, EN 55011 : Class A, EN 61000-4-2, EN 61000-4-3
Vibration and shock 2G, IEC 68-2-6 and 25G, IEC 68-2-29
Drop Engineered to withstand 2m drop
Size (H × W × L) 267 × 101 × 145 mm
Weight (battery included) Fixed focus .72kg, Manual focus .77kg
Enclosure rating IP54 (protected against dust, limited ingress; protection against water spray form all directions)
Recommended calibration cycle Two-years (assumes normal operation and normal aging)
Supported languages Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish
SKUFluke-TiS20
Weight770.000000
Dimension267 × 101 × 145 mm
ManufacturerFluke
Data loggerYes
Field of View (FOV)35.7 ° x 26.8 °
Detector Resolution120 x 90
Resolution 5.2 mRad
Measurement Range-20 to 350℃
Other FunctionNo
Power SupplyOne lithium ion smart battery pack / AC operation with included power supply
Water resistanceIP54
Sensor Output InterfaceNo
Accuracy± 2 °C or 2 % (at 25 °C nominal, whichever is greater)
Your Rating

Accessories Includes:

  • Thermal imager
  • AC charger / power supply with mains adapters for battery chatging and AC operation
  • One rugged lithium ion smart battery
  • Soft transport bag
  • Statement of  factory calibration
  • Quick start guide
  • Safety sheet
