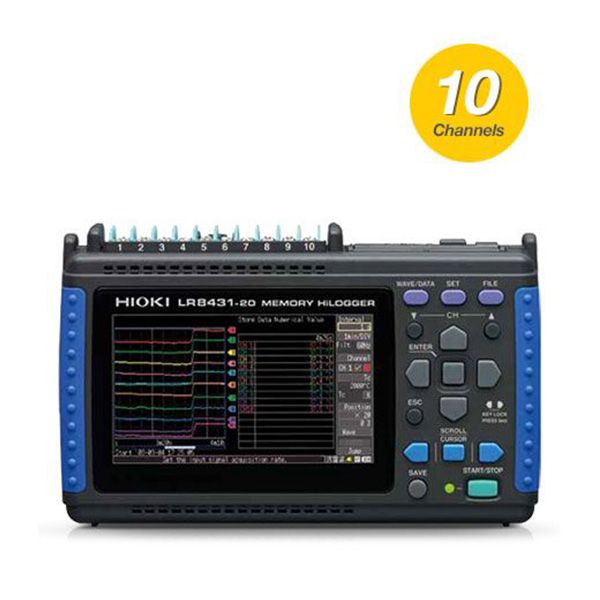

Hioki LR8431-20 High-Speed Data Logger (10-Channels)

SKU
LR8431-20
In stock

Memory HiLogger 10 Channels + Pulse 4 channels
Temperature (thermocouples), Voltage, Pulse measurement
Internal Storage 3.5 MWord, CF card & USB Flashdrive
External Interface USB 2.0 mini-B Interface
Hioki, Japan

Hioki LR8431-20 High-Speed Data Logger (10-Channels)

Hioki Memory HiLoggers are high-speed data loggers for recording multiple channels of voltage, temperature, pulse or rotation signals, providing complete isolation between channels and strong noise resistance. The LR8431 logs data at 10ms speeds across 10 channels simultaneously, and features a bright color LCD for crystal clear waveform displays.

Features

  • Record measurement data on a USB flash drive for easy transfer to a computer
  • Record to reliable Compact Flash cards during long-term measurement applications for increased peace of mind
  • 10 ms sampling and recording across all channels
  • More accurate Thermocouples (Type K, J, E, T, N, R, S, B) measurement
  • Provides 10 electrically isolated analog input channels
  • Noise-resistant measurement circuitry for improved readings
  • Ultra-compact for convenient portability
  • Widescreen, bright LCD gives excellent viewability
MEMORY HiLOGGER LR8431

This compact logger excels in a broad range of settings, from production lines to research and development

  • Evaluating motors and inverters used in electric and hybrid vehicles. The LR8431-20 enables stable, low-noise measurement of high-speed, high-resistance targets.
  • Efficiency measurement and performance evaluation of air conditioning equipment. The LR8431-20 supports simultaneous, multi-point measurement, for example of input and output at multiple air conditioning registers or the temperature of internal components.
  • Temperature measurement and performance evaluation of internal components in electronic equipment. Used with a wind velocity converter, the LR8431-20 can measure cooling efficiency inside equipment enclosures.
MEMORY HiLOGGER LR8431

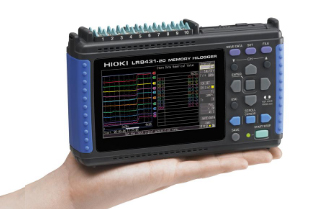

10-channelslogger still fits in the palm of your hand

  • Ultra-compact for convenient portability.
  • There's no need to worry about differing potentials of measurement objects when measuring temperature and voltage at the same time. All ten analog channels are isolated. The four pulse channels are ideal for counting revolution pulses to measure rotation speed. (Pulse inputs share common ground.)
  • Isolation between channels is possible through the use of semi-conductor relays. Voltage exceeding the product specifications should never be applied between each channel, otherwise the relays will short and the recorder will be damaged.
MEMORY HiLOGGER LR8431

A data logger with a 10 ms sampling and recording across all channels

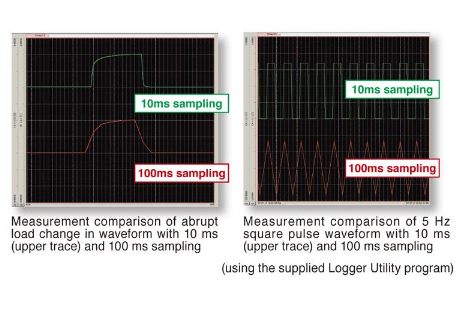

  • Abrupt changes in load need to be measured during development of EV, HV, PHV, for which multi-channel, 10 ms sampling is essential. This HiLOGGER can track waveforms that could not be followed with the 100 ms sampling interval previously available.
MEMORY HiLOGGER LR8431

Featuring USB flash drive and CF card support

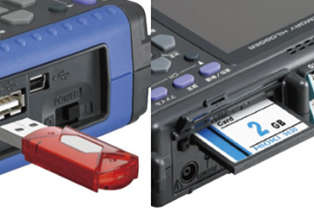

  • The LR8431-20 can record measurment data on a USB flash drive for easy transfer to a computer. In long-term measurement applications, it can also record to reliable Compact Flash cards for increased peace of mind.
  • Replace storage media during real-time recording. Switch out fully loaded storage media with new ones while recording without stopping the measurement so that you can analyze any data recorded so far.
  • * During high-speed recording, be sure to insert the new storage media within 2 minutes of removing the former. *Use only HIOKI CF cards, which are manufactured to strict industrial standards, for long-term storage of important data. Operation of non-HIOKI CF cards is not guaranteed.
MEMORY HiLOGGER LR8431

Included PC application with measurement and analysis functionality

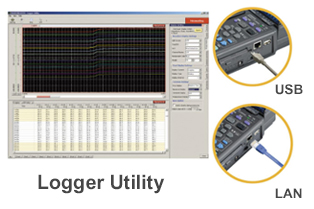

  • The supplied Logger Utility software enables processing of measurement data on a PC. Use the supplied Logger Utility software to record data on a PC in real-time. View past data during recording. Connect the PC to the HiLOGGER using USB.

Thermocouple หากลูกค้าต้องการ Thermocouple สามารถสอบถามได้กับพนักงานขาย เพิ่มเติม!

Number of channels
  • Analog: 10 isolated channels using scanning input method (M3 mm dia. screw terminal block)
  • Pulse: 4 channels (All pulse inputs share common ground with the main unit)

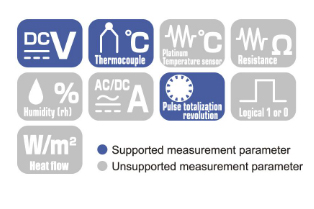

Measurement parameters
  • Voltage: ±100 mV to ±60 V, 1-5V f.s. 6 ranges, Max. resolution 5µV
  • Temperature (thermocouples): -200 ˚C to 1800 ˚C (depend on the sensor), 1 range (K, J, E, T, N, R, S, B), Max. resolution 0.1 ˚C
  • Temperature (Pt 100 sensor) : not available
  • Humidity: not available
  • Totalized pulses: 0 to 1000M pulse, 1 range (No-voltage ‘a’ contact, open collector or voltage input), Max. resolution 1 pulse
  • Rotation count: 0 to 5000/n (r/s) f.s. 1 range (No-voltage ‘a’ contact, open collector or voltage input), Resolution 1/n (r/s) Note: n = pulses per rotation (1 to 1,000)
Max. allowable input DC 60 V (Analog input), DC -5 V to 10 V (Pulse input)
Max. rated voltage to earth AC 30 Vrms, DC 60 V
(Upper limit voltage that does not cause damage when applied between input channel and chassis, and between each input channels)
Recording intervals 10 ms to 1 hour, 19 selections
(All input channels are scanned within each recording interval.)
Selectable filters 50 Hz, 60 Hz, or OFF
(digital filtering of high frequencies on analog channels)
Memory capacity Internal storage: 3.5 M-words, External storage: CF card or USB memory stick
(only the HIOKI CF card is guaranteed for correct operation)
External interface USB 2.0 mini-B receptacle ×1; Functions: Control from a PC, Transfers files from the installed CF card to a PC
(cannot transfer files from the connected USB memory stick to a PC via USB communication), Data copy between CF card and USB memory stick
Display 4.3-inch WQVGA-TFT color LCD (480 × 272 dots)
Functions Save data to the CF card or USB memory stick in real time, Numerical Calculations, etc.
Power supply AC adapter Z1005: 100 to 240 VAC (50/60 Hz)
Battery pack 9780: Continuous use 2.5 hours
12 V DC supply: 10 to 16 V (please contact HIOKI distributor for cable; less than 3 m/9.84 ft cable length)
Dimensions and mass 176 mm (6.93 in) W × 101 mm (3.98 in) H × 41 mm (1.61 in) D, 550 g (19.4 oz) (Battery pack 9780 not installed)
Accessories
  • Measurement Guide ×1
  • CD-R (Instruction manual PDF
  • Logger Utility Instruction Manual PDF
  • Data acquisition application program Logger Utility) ×1
  • USB cable ×1
  • AC adapter Z1005 ×1
SKULR8431-20
Weight550.000000
Dimension176 × 101 × 41mm
ManufacturerHioki
Measurement objectAmbient Temperature, Core Temperature, Surface Temperature, Temperature in Liquid
Sensor connector typeNo
Supported sensor TypeThermocouple Type K, J, E,T, N, R, S, B
Other Function
  • Record measurement data on a USB flash drive for easy transfer to a computer
  • Record to reliable Compact Flash cards during long-term measurement applications for increased peace of mind
  • Replace storage media during real-time recording
  • Improved thermocouple measurement accuracy and reference junction compensation accuracy
  • Ten isolated analog input channels
  • 10 ms sampling and recording across all channels
  • Noise-resistant measurement circuitry for improved readings
  • Ultra-compact for convenient portability
  • Widescreen, bright LCD gives excellent viewability
Power SupplyAC Adapter, Battery pack 9780 (Optional)
Resolution0.1 ℃
Temperature Sensor TypeThermocouple
Number of Channel3 Channels and more...
Water resistanceNo
Sensor Output InterfaceUSB Interface
Temperature Range-200 to 2000ºC (depend on probe)
Data loggerYes
Accuracydepends on probe
