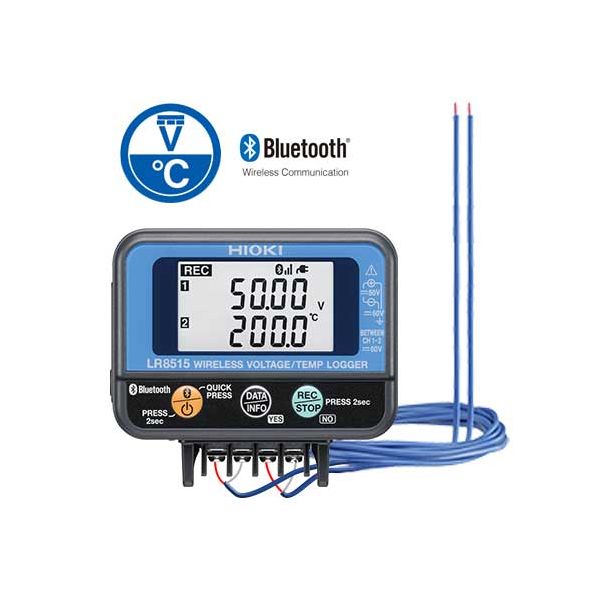

Hioki-LR8515 Wireless Voltage and Temperature Data Logger

SKU
LR8515
main product photo
฿0.00
Pre-Order Item
Out of stock

Wireless Voltage and Temperature Data Logger
Voltage :±50 mV to ±50 V / Temperature: -200 to 999.9 ˚C
Datalogger 500,000 values / 1 chanel
Bluetooth® wireless technology
Hioki, Japan

Add to Compare
Categories: Temperature Dataloggers, Hioki, Compact Data Loggers, Temperature Data Loggers
Hioki

Hioki-LR8515 Wireless Voltage and Temperature Data Logger

Hioki-LR8515

LR8515 is a Mini wireless 2 channels data logger, K & T types voltage and temperature input, with built-in high-capacity memory for long-term recording. Compact and space-saving, the mini logger can be easily installed in location where wiring is difficult.

Thermocouple More Thermocouples Click!

Measurement items Voltage Thermocouple (K, T)
Range ±50 mV to ±50 V -200°C to 999.9°C
Accuracy ±0.05 mV ±0.8°C
Resolution 0.01 mV 0.1°C
No. of channels 2 channels (isolated; select voltage of thermocouple for each channel)
Max. input voltage ±50 V DC, Max. inter-channel voltage 60 V DC
Display items Measurement value, date, time, no. of recorede data, max. value, min. value, avg. value
Data storage 500,000 data items for each channel
Functions Alarm, Scaling, Recording operation hold function, Erroneous operation prevention, Comment recording function, Power saving function, Authentication function, Free run
Power requirement AC Adapter (AC 100 to 240 V), Battery AA x 2
Dimensions/ Weight 85 x 75 x 38 mm/ 126 g
Wireless Logger Collector
Wireless Logger Collector
Wireless Logger Collector
Wireless Logger Collector
SKULR8515
Weight126.000000
Dimension85 × 75 ×38 mm
ManufacturerHioki
Measurement objectAmbient Temperature, Core Temperature, Surface Temperature, Temperature in Liquid
Sensor connector typeMiniture connector for thermocouple
Supported sensor TypeNo
Other Function

[Used as standalone product (Data collected manually) ]
Windows PC or Windows tablet (CD-R with software included)
Android smartphone or Android tablet terminal
(Software can be downloaded free of charge from Google Play.)
*Communication range varies with the performance of the computer or tablet (up to a line-of-sight distance of roughly 30 m)
[Used as logging module (Real-time measurement) ]
Device can be used as an LR8410 logging module to record and display data in real time and to control up to 7 units, Communication distance: 30 m

Power SupplyAlkaline AA x 2
Resolution0.1℃
Temperature Sensor TypeThermocouple
Number of Channel2 Channels
Water resistanceNo
Sensor Output InterfaceBluetooth®
Temperature Range-200 to 999.9 ˚C
Data loggerYes
AccuracyVoltage: ±0.05 mV (50 mV range) Thermocouple : ±0.8 ˚C (Thermocouple K -100 ˚C to 999.9 ˚C)
Your Rating
PDF Download PDF Download

Product's Video

Accessories Included:

  • CD-R ×1 (Instruction Manual, Logger Utility, Wireless Logger Collector)
  • Measurement Guide ×1
  • Caution for Using Radio Waves × 1
  • AA alkaline batteries (LR6) ×2
