Mitutoyo M-530-114 Vernier Caliper (0 to 200mm)

SKU

M-530-114

Skip to the end of the images gallery

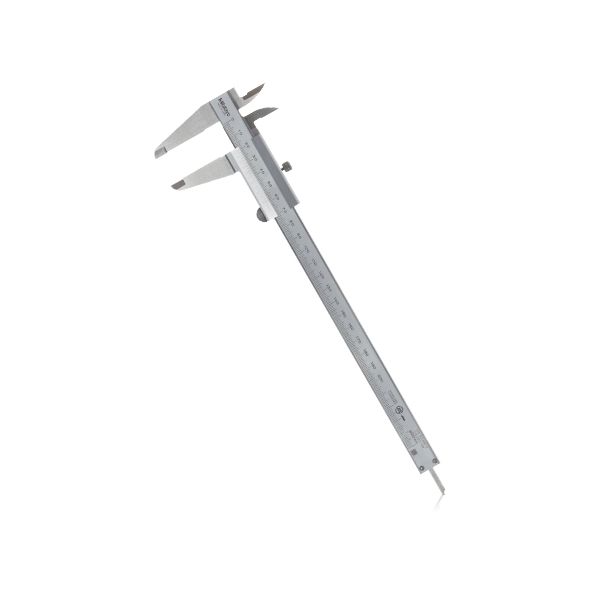

main product photo

Skip to the beginning of the images gallery

Out of stock

Vernier Caliper
Range 0 to 200mm / 0 to 8"
Accuracy ±0.05mm
Mitutoyo, Japan

Category: Mitutoyo

Vernier Caliper Mitutoyo M-530-114

Vernier Caliper for measure any object
Range 0 to 200mm / 0 to 8"
Accuracy ±0.05mm
Graduation 0.05mm, 0.001"
Mitutoyo, Japan

4 ways Measurement Vernier Caliper Mitutoyo 530 Series

OD measurement	ID measurement	Step measurement	Depth measurement

Dimention Vernier Caliper Mitutoyo 530 Series

Metric

Dimention and mass	Range	L	A	B	C	D	Mass (g)
	0 - 150 mm	229	40	21	17	16	143
	0 - 200 mm	288	50	24.5	20.5	16	180
	0 - 300 mm	403	64	27.5	22	20	335
	0 - 600 mm	780	90	47	38	25	1,300
	0 - 1000 mm	1240	130	60	50	32	3,300

Specifications Vernier Caliper SERIES 530 Standard Model

Metric

Model	Range	Accuracy	Graduation	Remarks
M-530-102	0 - 150mm	±0.05mm	0.05mm	ø1.9mm Depth bar
M-530-101	0 - 150mm	±0.05mm	0.05mm	—
M-530-320	0 - 150mm	±0.05mm	0.05mm	Carbide-tipped jaws for OD measurement
M-530-335	0 - 150mm	±0.05mm	0.05mm	Carbide-tipped jaws for OD & ID measurement
M-530-122	0 - 150mm	±0.03mm	0.02mm	High accuracy model
M-530-108	0 - 200mm	±0.05mm	0.05mm	—
M-530-321	0 - 200mm	±0.05mm	0.05mm	Carbide-tipped jaws for OD measurement
M-530-123	0 - 200mm	±0.03mm	0.02mm	High accuracy model
M-530-109	0 - 300mm	±0.08mm	0.05mm	—
M-530-322	0 - 300mm	±0.08mm	0.05mm	Carbide-tipped jaws for OD measurement
M-530-124	0 - 300mm	±0.04mm	0.02mm	High accuracy model: ±0.04mm
M-530-501	0 - 600mm	±0.1mm	0.05mm	—
M-530-502	0 - 1000mm	±0.15mm	0.05mm	—

Metric/Inch with metric/inch dual scale

Model	Range	Accuracy	Graduation	Remarks
M-530-104	0 - 150mm / 0 - 6"	±0.05mm	0.05mm	—
M-530-316	0 - 150mm / 0 - 6"	±0.05mm	0.05mm	—
M-530-312	0 - 150mm / 0 - 6"	±0.03mm	0.05mm	High accuracy model
M-530-114	0 - 200mm / 0 - 8"	±0.05mm	0.05mm	—
M-530-118*	0 - 200mm / 0 - 8"	±0.03mm	0.02mm	High accuracy model
M-530-115	0 - 300mm / 0 - 12"	±0.08mm	0.05mm	—
M-530-119*	0 - 300mm / 0 - 12"	±0.04mm	0.05mm	High accuracy model

Inch with inch/inch dual scale

Model	Range	Accuracy	Graduation	Remarks
M-530-105	0 - 6"	±0.0015"	0.001"	—
M-530-116	0 - 8"	±0.0015"	0.001"	—

* Graduation: 0.02mm
**No depth measuring bar

More Information

SKU	M-530-114
Weight	180.000000
Dimension	0
Manufacturer	Mitutoyo
Data logger	No
Maximum Range	200mm
Type of Caliper	Vernier Caliper
Resolution	Graduation 0.05mm, 0.001"
Measurement Range	0 ถึง 200mm / 0 ถึง 8"
Other Function	No
Power Supply	No Need
Water resistance	No
Sensor Output Interface	No
Accuracy	±0.05mm
