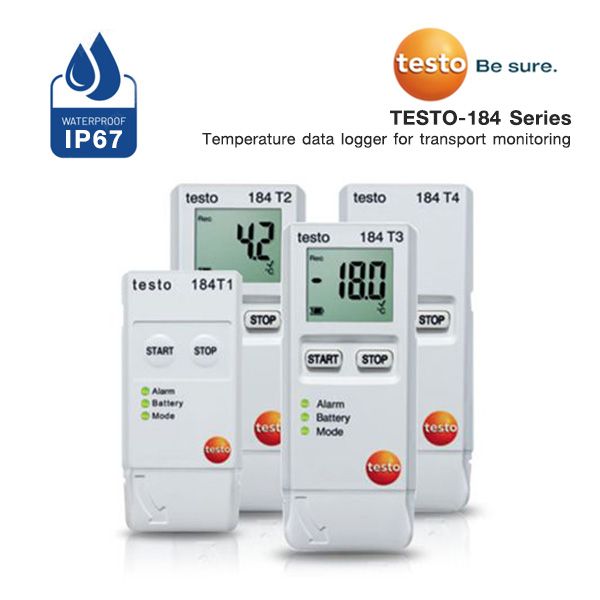

Testo 184-T Series Temperature | Humidity | Shock Data Logger

Testo 184-T Series Temperature | Humidity | Shock Data Logger

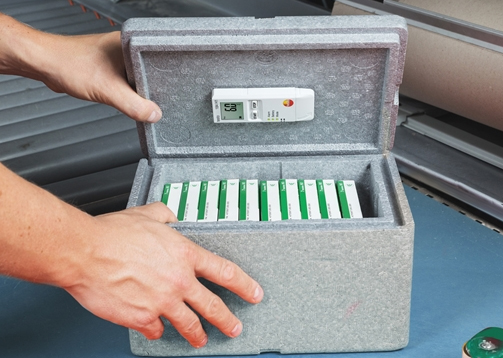

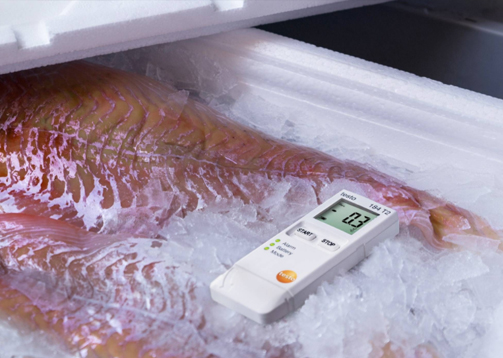

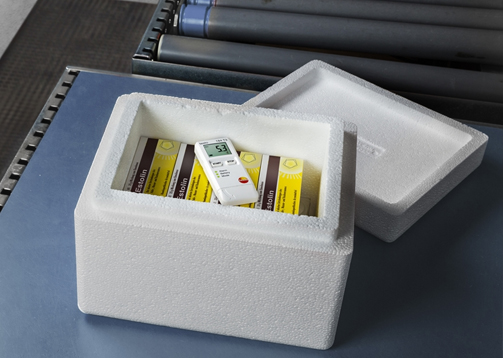

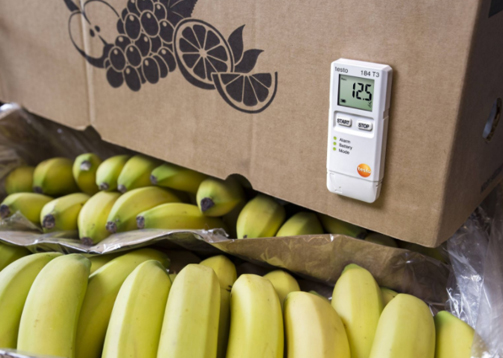

Testo 184-T Series is and ideal logger for both pharma, as well as food cold chain logistics. Configuration of the 184 short-term temperature logger is as simple as plugging into a USB port, and customizing the included PDF file. With clear indication of configurable alarm settings, including measurement temperature ragne, as well as start and end times, ensuring proper cold chain transportation has never been easier. For international shipping, different languages can be independently configured for recipient or shipper.

Features

• Readout by NFC and mobile printer
• Automatic PDF generation
• Temperature calibration certificate traceable according to ISO 17025
• EN 12830-certified
• HACCP-certified
• Compatible with testo ComSoft CFR 21 Part 11

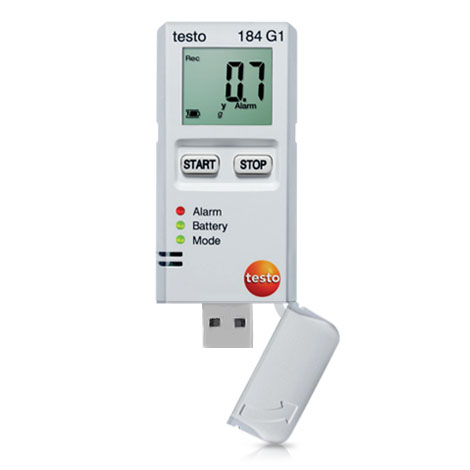

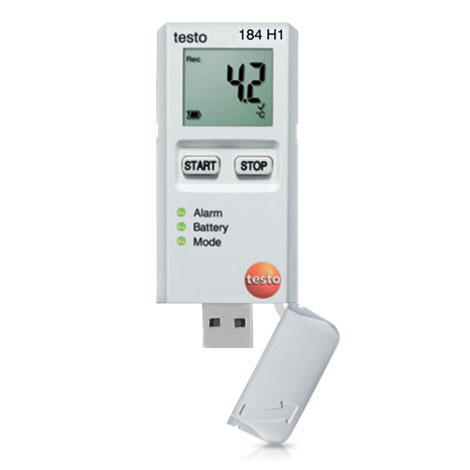

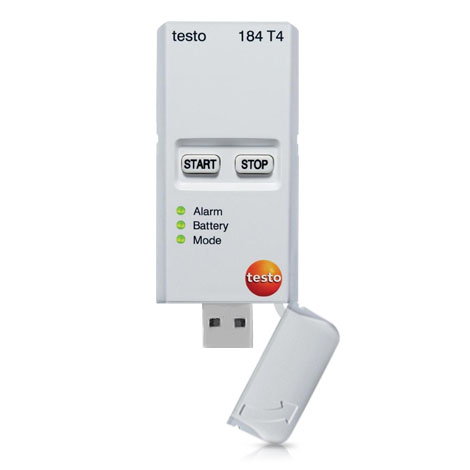

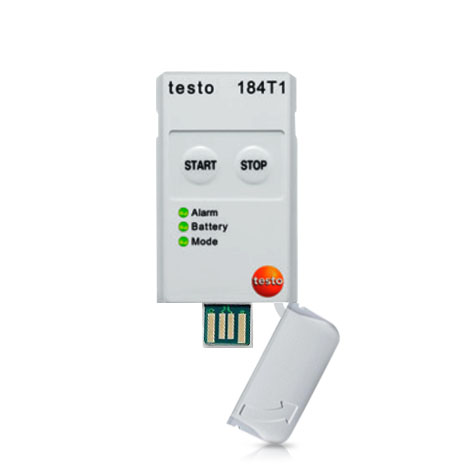

Model	Testo 184-T1	Testo 184-T2	Testo 184-T3	Testo 184-T4	Testo 184-H1	Testo 184-G1
Measurement	■ Temperature	■ Temperature	■ Temperature	■ Temperature	■ Temperature ■ Humidity	■ Temperature ■ Humidity ■ Shock
Range	-35 to 70 °C	-35 to 70 °C	-35 to 70 °C	-80 to 70 °C	-80 to 70 °C 0 to 100 %RH	-20 to 70 °C 0 to 100 %RH 0 to 27 G
Resolution	0.1 °C	0.1 °C	0.1 °C	0.1 °C	0.1°C 0.1%RH	0.1°C  0.1%RH 0.1 G
Accuracy	± 0.5 °C	± 0.5 °C	± 0.5 °C	±0.8°C (-80 to 35.1°C) ± 0.5 °C (-35 to 70 °C)	±0.5 °C (0 to +70 °C) ±0.8 °C (-20 to 0 °C) ±1.8%RH +3% of m.v. at 25°C (5 to 80 %RH)	±0.5 °C (0 to +70 °C) ±0.8 °C (-20 to 0 °C) ±1.8%RH +3% of m.v. at 25°C (5 to 80 %RH) ±0.1 G + 5%
Storage temperature	-55 to 70 °C	-55 to 70 °C	-55 to 70 °C	-80 to 70 °C	-55 to 70 °C	-55 to 70 °C
Measurement rate	1 minute to 24 hour	1 minute to 24 hour	1 minute to 24 hour	1 minute to 24 hour	1 minute to 24 hour	1 minute to 24 hour
Data storage	16,000 readings	40,000 readings	40,000 readings	40,000 readings	64,000 readings	64,000 readings
Operating time	90 days	150 days	500 days	100 days	500 days	120 days
Protection class	IP67	IP67	IP67	IP67	IP30	IP30
Alarm identification	LEDs	Display & LEDs	Display & LEDs	LEDs	Display & LEDs	Display & LEDs
Exchangeable battery	—	—	✔	✔	✔	✔
Power requirement	—	—	CR2450	TLH-2450	CR2450	TLH-2450
Dimension / Weight	33 x 9 x 74mm / 25g	44 x 12 x 97mm / 45g	44 x 12 x 97mm / 45g	44 x 12 x 97mm / 45g	44 x 12 x 97mm / 45g	44 x 12 x 97mm / 45g
