TOPCON UD-250 Detector for UVR-300 UV Radiometer (220 - 300nm)

SKU

UD-250

Skip to the end of the images gallery

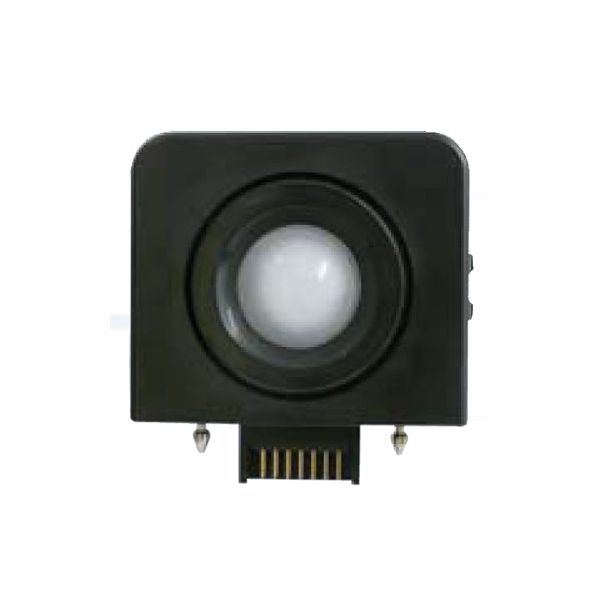

main product photo

Skip to the beginning of the images gallery

฿0.00

Pre-Order 30-45 days

Out of stock

Detector for UVR-300
Range: 220 - 300nm
TOPCON, Japan

Category: TOPCON

TOPCON UD-250 Detector for UVR-300 UV Radiometer (220 - 300nm)

Spectral Characteristic

Spectral Sensitivity Characteristics

Spectral sensitivity characteristics

Angular Incident Light Characteristics

Angular Incident Light Characteristics

Spectral Distribution of Calibration Light Sources

Spectral Distribution of Calibration Light Sources

System / Dimensions

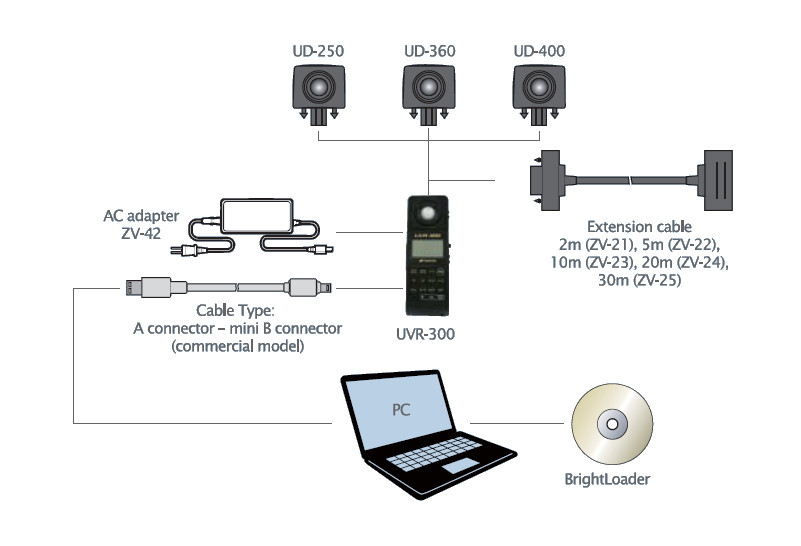

System

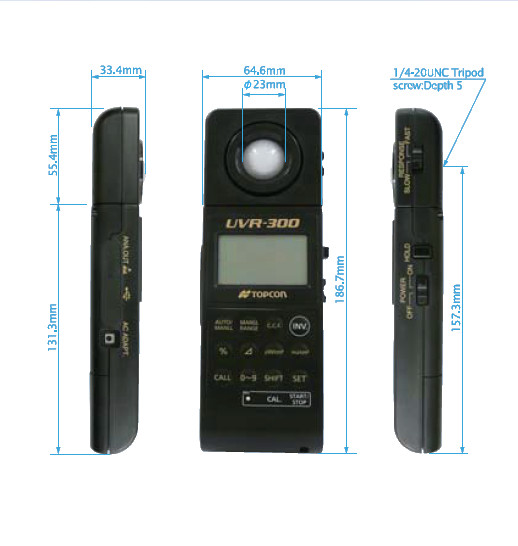

Dimension

Specifications

Model		UD-250	UD-360	UD-400
Measurement Wavelength Range		220 - 300 nm	310 - 400 nm	360 - 490 nm
Angule Incident Light Characteristics	30°	±3%	±3%
	60°	±15%	±10%
Calibration Light Source		GL-15	FL20S • BLB	Standard light source A

More Information

SKU	UD-250
Weight	0.000000
Dimension	0
Manufacturer	TOPCON
Data logger	No
Solar Power Range	No
UV measurement	UVB, UVC
Switching Lx Range	No
UV measurement range	Yes
Lux measurement range	No
Other Function	No
Power Supply	-
Resolution	0.1
Water resistance	No
Sensor Output Interface	No
Accuracy	30° ±3% 60° ±15%
