Hioki IM3533-01 LCR meter

SKU
IM3533-01

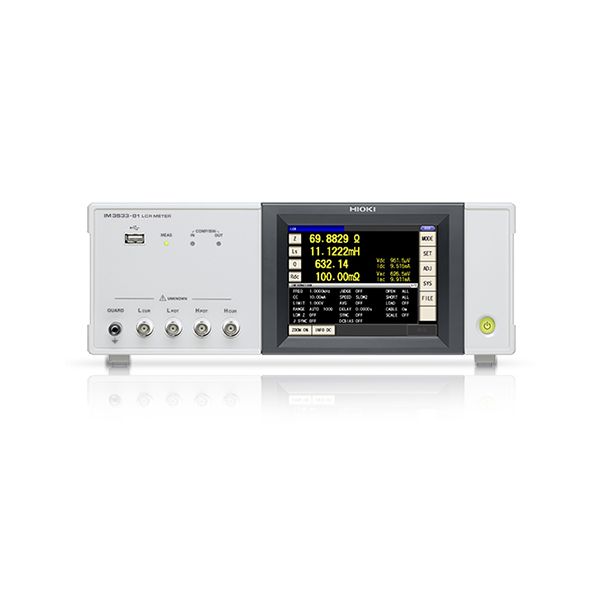

main product photo
Out of stock

เครื่องวัดแอลซีอาร์  100 mΩ to 100 MΩ
LCR, Transformer testing, Analyzer, Continuous testing modes
หน้าจอ TFT 5.7" touch-screen
ยี่ห้อ Hioki, Japan

สินค้าลงทะเบียนโปรดติดต่อฝ่ายขาย

Authorized_HIOKI

สอบถาม
Categories: Hioki, LCR Meters, Impedance Analyzers, Capacitance Meters
Hioki

Hioki IM3533-01 เครื่องวัดแอลซีอาร์

LCR, Transformer testing (N, M, ΔL), Analyzer (sweep testing), Continuous Testing (LCR/Analyzer mode)

  •  ±0.05% accuracy with wide measurement range (DC, 1mHz to 200kHz, 5mV to 5V, 10uA to 50mA)
  •  Non-stop testing over mixed measurement conditions such as C-D and ESR at 10 times the speed of previous models
  •  Built-in low impedance high precision mode effective for testing low inductance or the ESR of aluminum electrolysis capacitance (10× the measurement speed and dramatic improvements in repeatability and stability over the previous model 3522-50)
  • Dedicated modes for measuring transformer winding ratio, mutual inductance and temperature compensated DCR
  • Frequency sweep testing
  • 2m/4m cable setting in addition to the standard 0m/1m

หน้าจอ TFT 5.7" touch-screen
แบตเตอรี่ AC Adapter
ขนาดตัวเครื่อง 330 × 119 × 168mm (3100g)
ยี่ห้อ Hioki, Japan

Measurement Mode LCR, Transformer testing (N, M, ΔL), Analyzer (sweep testing), Continuous Testing (LCR/Analyzer mode)
Measurement parameters Z, Y, θ, Rs (ESR), Rp, Rdc (DC resistance), X, G, B, Cs, Cp, Ls, Lp, D (tanδ), Q, N, M, ΔL, T
Measurement range 100 mΩ to 100 MΩ, 10 ranges (All parameters defined in terms of Z.)
Display range Z, Y, Rs, Rp, Rdc, X, G, B, Ls, Lp, Cs, Cp : ± (0.00000 [unit] to 9.99999G [unit]) Real value display for Z and Y only
θ: ± (0.000° to 180.000°), D: ± (0.00000 to 9.99999)
Q: ± (0.00 to 99999.9), Δ%: ± (0.0000% to 999.999%), T: -10.0°C to 99.9°C
Basic accuracy Z : ±0.05% rdg. θ: ±0.03°
Measurement frequency 1 mHz to 200 kHz (5 digits setting resolution, minimum resolution 1 mHz)
Measurement signal level [Normal mode]V mode, CV mode: 5 mV to 5 Vrms, 1 mVrms stepsCC mode: 10 μA to 50 mArms, 10 μArms steps[Low impedance high accuracy mode]V mode, CV mode: 5 mV to 2.5 Vrms, 1 mVrms stepsCC mode: 10 μA to 100 mArms, 10 μArms steps
Output impedance Normal mode: 100 Ω, Low impedance high accuracy mode: 25 Ω
Display 5.7-inch touch-screen color TFT, display can be set to ON/OFF
Measurement time 2 ms (1 kHz, FAST, display OFF, representative value)
Functions DC bias measurement, DC resistance temperature compensation (converted reference temperature display), Comparator, BIN measurement (classify function), Panel loading/saving, Memory function
Interfaces EXT I/O (Handler), USB communication (high-speed), USB memory
Optional: Choose 1 from RS-232C, GP-IB, or LAN
Power supply 100 to 240 V AC, 50/60 Hz, 50 VA max
Dimensions and mass 330 mm (12.99 in) W × 119 mm (4.69 in) H × 168 mm (6.61 in) D, 3.1 kg (109.3 oz)
Accessories Power cord × 1, Instruction manual × 1, CD-R (Includes PC commands and sample software) × 1
Model Name Specifications
Probe and Test fixtures
IM9100 SMD TEST FIXTURE  • Direct connection type
• SMDs with electrodes on the bottom
• DC to 8MHz
• Measurable sample sizes: 01005 to 0402 (EIA)
9140-10 4-TERMINAL PROBE  Cable length 1 m (3.28 ft), DC to
200 kHz, impedance
characteristics of 50 Ω, 4-terminal
pair configuration, measurable
conductor diameter: ø0.3 to 5 mm
9261-10 TEST FIXTURE Cable length 1 m (3.28 ft), DC to 8
MHz, impedance characteristics of
50 Ω, 4-terminal pair configuration,
measurable conductor diameter:
ø0.3 to 1.5mm
9262 TEST FIXTURE Direct connection type, DC to 8
MHz, measurable conductor
diameter: ø0.3 to 2mm
9263 SMD TEST FIXTURE Direct connection type, DC to 8MHz, Test sample dimensions:1to 10mm
9268-10 DC BIAS VOLTAGE UNIT Direct connection type, 40 Hz to 8MHz, maximum applied voltage ofDC ±40 V
9269-10 DC BIAS CURRENT UNIT  Direct connection type, 40 Hz to 2MHz, maximum applied current ofDC 2 A
9500-10 4-TERMINAL PROBE  Cable length 1 m (3.28 ft), DC to200 kHz, impedancecharacteristics of 50 Ω,measurable conductor diameter:φ0.3 to 2mm
9677 SMD TEST FIXTURE Direct connection type, Formeasuring SMDs with electrodeson the side; DC to 120 MHz, testsample dimensions: 3.5 mm ±0.5mm (0.14 in ±0.02 in)
9699 SMD TEST FIXTURE Direct connection type, Formeasuring SMDs with electrodeson the bottom; DC to 120 MHztest sample dimensions: 1.0 mm(0.04 in) to 4.0 mm (0.16 in) wide,max. 1.5 mm (0.06 in) high
IM9901 CONTACT TIPS To replace the tip on the L2001,regular size, bundled withthe L2001
IM9902 CONTACT TIPS To replace the tip on the L2001,small size
L2000 4-TERMINAL PROBE  Cable length 1 m (3.28 ft), DC to 8MHz, impedance characteristics of50 Ω, 4-terminal pair configuration,measurable conductor diameter:ø0.3  to 5mm
L2001 PINCHER PROBE Cable length 73 cm (2.40 ft), DC to8 MHz, impedance characteristicsof 50 Ω, 4-terminal pairconfiguration, tip electrodespacing: 0.3 (0.01 in) to 6 mm (0.24 in)
  IM9110 SMD TEST FIXTURE  • Direct connection two-terminal  measurement type• DC to 1 MHz• Measurable sample sizes:  008004 (EIA)
PC Communication
9151-02  GP-IB CONNECTOR CABLE  2 m (6.56 ft) length
Z3000 GP-IB INTERFACE
  Z3001 RS-232C INTERFACE
  Z3002 LAN INTERFACE
Temperature probe
9478 SHEATH TYPETEMPERATURE PROBE  Pt100, Tip dia. φ2.3 mm (0.09 in),Cord length 1 m (3.28 ft),Waterproof construction
SKUIM3533-01
Weight3100.000000
Dimension330 × 119 × 168mm
ManufacturerHioki
Data loggerYes
Resolution

Z, Y, Rs, Rp, Rdc, X, G, B, Ls, Lp, Cs, Cp : ± (0.00000 [unit] to 9.99999G [unit]) Real value display for Z and Y only

θ: ± (0.000° to 180.000°), D: ± (0.00000 to 9.99999)

Q: ± (0.00 to 99999.9), Δ%: ± (0.0000% to 999.999%), T: -10.0°C to 99.9°C

Measurement Range100 mΩ to 100 MΩ, 10 ranges
Other Function

DC bias measurement
DC resistance temperature compensation (converted reference temperature display)
Comparator
BIN measurement (classify function)
Panel loading/saving, Memory function

Power SupplyAC Adapter
Water resistanceNo
Sensor Output Interface

EXT I/O (handler)
USB communication (high-speed)
RS-232C
GP-IB
LAN

AccuracyZ : ±0.05% rdg. θ: ±0.03°
Your Rating
PDF Download Catalog    ดาวน์โหลดแคตตาล็อค Hioki

อุปกรณ์มาตรฐาน
ตัวเครื่อง ×1
Power cord ×1
Instruction manual ×1
CD-R ×1

อุปกรณ์เสริม (แยกจำหน่าย)

Model

Name

 Specifications

Probe and Test fixtures


IM9100

 SMD TEST FIXTURE

• Direct connection type
• SMDs with electrodes on the bottom
• DC to 8MHz
• Measurable sample sizes: 01005 to 0402 (EIA)
  9140-10 4-TERMINAL PROBE

Cable length 1 m (3.28 ft), DC to
200 kHz, impedance
characteristics of 50 Ω, 4-terminal
pair configuration, measurable
conductor diameter: ø0.3 to 5 mm
  9261-10 TEST FIXTURE

Cable length 1 m (3.28 ft), DC to 8
MHz, impedance characteristics of
50 Ω, 4-terminal pair configuration,
measurable conductor diameter:
ø0.3 to 1.5mm
  9262 TEST FIXTURE

Direct connection type, DC to 8
MHz, measurable conductor
diameter: ø0.3 to 2mm
  9263 SMD TEST FIXTURE Direct connection type, DC to 8
MHz, Test sample dimensions:1
to 10mm
  9268-10 DC BIAS VOLTAGE UNIT Direct connection type, 40 Hz to 8
MHz, maximum applied voltage of
DC ±40 V
  9269-10 DC BIAS CURRENT UNIT  Direct connection type, 40 Hz to 2
MHz, maximum applied current of
DC 2 A
  9500-10 4-TERMINAL PROBE  Cable length 1 m (3.28 ft), DC to
200 kHz, impedance
characteristics of 50 Ω,
measurable conductor diameter:
φ0.3 to 2mm
  9677 SMD TEST FIXTURE Direct connection type, For
measuring SMDs with electrodes
on the side; DC to 120 MHz, test
sample dimensions: 3.5 mm ±0.5
mm (0.14 in ±0.02 in)
  9699 SMD TEST FIXTURE Direct connection type, For
measuring SMDs with electrodes
on the bottom; DC to 120 MHz
test sample dimensions: 1.0 mm
(0.04 in) to 4.0 mm (0.16 in) wide,
max. 1.5 mm (0.06 in) high
  IM9901 CONTACT TIPS To replace the tip on the L2001,
regular size, bundled with
the L2001
  IM9902 CONTACT TIPS To replace the tip on the L2001,
small size
  L2000 4-TERMINAL PROBE  Cable length 1 m (3.28 ft), DC to 8
MHz, impedance characteristics of
50 Ω, 4-terminal pair configuration,
measurable conductor diameter:
ø0.3  to 5mm
  L2001 PINCHER PROBE Cable length 73 cm (2.40 ft), DC to
8 MHz, impedance characteristics
of 50 Ω, 4-terminal pair
configuration, tip electrode
spacing: 0.3 (0.01 in) to 6 mm (0.24 in)
  IM9110 SMD TEST FIXTURE  • Direct connection two-terminal
  measurement type
• DC to 1 MHz
• Measurable sample sizes:
  008004 (EIA)

PC Communication
  9151-02  GP-IB CONNECTOR CABLE  2 m (6.56 ft) length
  Z3000 GP-IB INTERFACE
  Z3001 RS-232C INTERFACE
  Z3002 LAN INTERFACE

Temperature probe
  9478 SHEATH TYPE
TEMPERATURE PROBE 		 Pt100, Tip dia. φ2.3 mm (0.09 in),
Cord length 1 m (3.28 ft),
Waterproof construction
