Hioki-IM3536 LCR Meters

SKU
IM3536

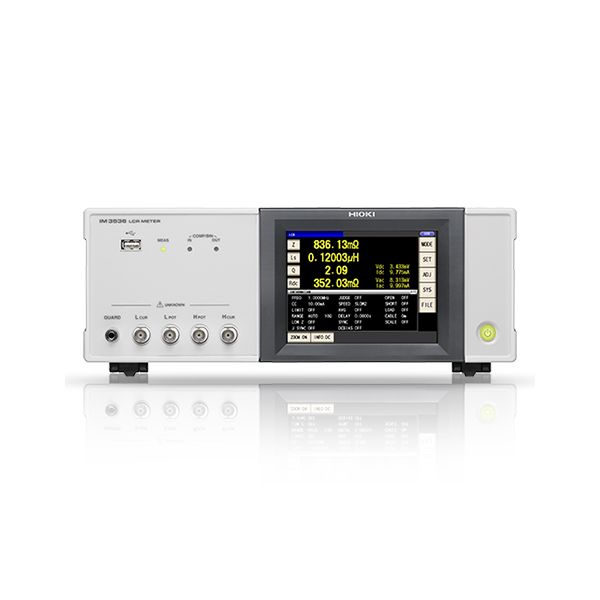

main product photo
฿0.00
Pre-Order Item
Out of stock

เครื่องวัดแอลซีอาร์  100 mΩ to 100 MΩ
LCR mode, Continuous measurement mode
หน้าจอ 5.7 inch color TFT แบบทัชสกรีน
ยี่ห้อ Hioki, Japan

สินค้าลงทะเบียนโปรดติดต่อฝ่ายขาย

Authorized_HIOKI

Add to Compare
Categories: Hioki, ELECTRONIC Industry
Hioki

เครื่องวัดแอลซีอาร์ IM3536

LCR mode, Continuous measurement mode
• DC, 4Hz to 8MHz measurement frequency
• High-speed measurement of 1ms (fastest time)
• High-precision measurement of ±0.05% rdg. (representative value)
• Guaranteed accuracy range from 1 mΩ, low-impedance measurement with unmatched repeatability
• DC bias function: Measure under conditions simulating actual use or in accordance with industry standards
• Exceptional specifications and cost-performance for a wide range of applications, from R&D to production lines

หน้าจอ TFT 5.7" touch-screen
แบตเตอรี่ AC Adapter
ขนาดตัวเครื่อง 330 x 119 x 230mm (4200g)
ยี่ห้อ Hioki, Japan

Specifications

Measurement Mode

LCR mode, Continuous measurement mode
Measurement parameters

Z, Y, θ, X, G, B, Q, Rdc (DC resistance), Rs (ESR), Rp, Ls, Lp, Cs, Cp, D (tanδ), σ, ε
Measurement range 100 mΩ to 100 MΩ, 10 ranges (All parameters are determined according to Z)
Display range

Z: 0.00 m to 9.99999 GΩ
Y: 0.000 n to 9.99999 GS
θ: ± (0.000° to 180.000°)
Q: ± (0.00 to 9999.99)
Rdc: ± (0.00 m to 9.99999 GΩ)
D: ± (0.00000 to 9.99999)
Δ%: ± (0.000 % to 999.999 %), or other
Basic accuracy

Z ±0.05% rdg. θ: ±0.03° (representative value, Measurable range: 1 mΩ to 200 MΩ)
Measurement frequency

4 Hz to 8 MHz (5 digits setting resolution, minimum resolution 10 mHz)
Measurement signal level [Normal mode: V mode/CV mode]
4 Hz to 1.0000 MHz: 10 mV to 5 V (maximum 50 mA)
1.0001 MHz to 8 MHz: 10 mV to 1 V (maximum 10mA)
[Low impedance high accuracy mode: V mode/CV mode]
4 Hz to 1.0000 MHz: 10 mV to 1 V (maximum 100 mA)
[Normal mode: CC mode]
4 Hz to 1.0000 MHz: 10 μA to 50 mA (maximum 5 V)
1.0001 MHz to 8 MHz: 10 μA to 10 mA (maximum 1 V)
[Low impedance high accuracy mode: CC mode]
4 Hz to 1.0000 MHz: 10 μA to 100 mA (maximum 1 V)
[DC resistance measurement]
Measurement signal level: Fixed at 1 V
DC bias measurement Generating range: DC voltage 0 V to 2.50 V (10 mV resolution)
In low Z high accuracy mode: 0 V to 1 V (10 mV resolution)
Output impedance Normal mode: 100 Ω, Low impedance high accuracy mode: 10 Ω
Display

5.7-inch color TFT with touch panel
Functions

Comparator, BIN measurement (10 categories for 2 measurement parameters), Trigger function, Open/short compensation, Contact check, Panel loading/saving, Memory function
Interfaces

EXT. I/O( HANDLER) ,USB, USB flash drive, LAN, GP-IB, RS-232C, BCD
Power supply

100 to 240 V AC, 50/60 Hz, 50 VA max.
Dimensions and mass

330 mm (12.99 in) W × 119 mm (4.69 in) H × 230 mm (9.06 in) D, 4.2 kg (148.1 oz)
Accessories

Power cord ×1, Instruction manual ×1, LCR application disc (Communications user manual) ×1



อุปกรณ์เสริม (แยกจำหน่าย)

Model

Name

 Specifications

Probe and Test fixtures


IM9100

 SMD TEST FIXTURE

• Direct connection type
• SMDs with electrodes on the bottom
• DC to 8MHz
• Measurable sample sizes: 01005 to 0402 (EIA)
  9140-10 4-TERMINAL PROBE

Cable length 1 m (3.28 ft), DC to
200 kHz, impedance
characteristics of 50 Ω, 4-terminal
pair configuration, measurable
conductor diameter: ø0.3 to 5 mm
  9261-10 TEST FIXTURE

Cable length 1 m (3.28 ft), DC to 8
MHz, impedance characteristics of
50 Ω, 4-terminal pair configuration,
measurable conductor diameter:
ø0.3 to 1.5mm
  9262 TEST FIXTURE

Direct connection type, DC to 8
MHz, measurable conductor
diameter: ø0.3 to 2mm
  9263 SMD TEST FIXTURE Direct connection type, DC to 8
MHz, Test sample dimensions:1
to 10mm
  9268-10 DC BIAS VOLTAGE UNIT Direct connection type, 40 Hz to 8
MHz, maximum applied voltage of
DC ±40 V
  9269-10 DC BIAS CURRENT UNIT  Direct connection type, 40 Hz to 2
MHz, maximum applied current of
DC 2 A
  9500-10 4-TERMINAL PROBE  Cable length 1 m (3.28 ft), DC to
200 kHz, impedance
characteristics of 50 Ω,
measurable conductor diameter:
φ0.3 to 2mm
  9677 SMD TEST FIXTURE Direct connection type, For
measuring SMDs with electrodes
on the side; DC to 120 MHz, test
sample dimensions: 3.5 mm ±0.5
mm (0.14 in ±0.02 in)
  9699 SMD TEST FIXTURE Direct connection type, For
measuring SMDs with electrodes
on the bottom; DC to 120 MHz
test sample dimensions: 1.0 mm
(0.04 in) to 4.0 mm (0.16 in) wide,
max. 1.5 mm (0.06 in) high
  IM9901 CONTACT TIPS To replace the tip on the L2001,
regular size, bundled with
the L2001
  IM9902 CONTACT TIPS To replace the tip on the L2001,
small size
  L2000 4-TERMINAL PROBE  Cable length 1 m (3.28 ft), DC to 8
MHz, impedance characteristics of
50 Ω, 4-terminal pair configuration,
measurable conductor diameter:
ø0.3  to 5mm
  L2001 PINCHER PROBE Cable length 73 cm (2.40 ft), DC to
8 MHz, impedance characteristics
of 50 Ω, 4-terminal pair
configuration, tip electrode
spacing: 0.3 (0.01 in) to 6 mm (0.24 in)
  IM9110 SMD TEST FIXTURE  • Direct connection two-terminal
  measurement type
• DC to 1 MHz
• Measurable sample sizes:
  008004 (EIA)

PC Communication
  9151-02  GP-IB CONNECTOR CABLE  2 m (6.56 ft) length
9637 RS-232C CABLE For the PC, 9 pin - 9 pin, cross, 1.8m length


SKUIM3536
Weight4200.000000
Dimension330 x 119 x 230mm
ManufacturerHioki
Data loggerYes
Resolution

Z: 0.00 m to 9.99999 GΩ

Y: 0.000 n to 9.99999 GS

θ: ± (0.000° to 180.000°)

Q: ± (0.00 to 9999.99)

Rdc: ± (0.00 m to 9.99999 GΩ)

D: ± (0.00000 to 9.99999)

Δ%: ± (0.000 % to 999.999 %), or other

Measurement Range100 mΩ to 100 MΩ
Other Function

Comparator

BIN measurement

Trigger function

Open/short compensation

Contact check

Panel loading/saving

Memory function

Power SupplyAC Adapter
Water resistanceNo
Sensor Output Interface

EXT. I/O( HANDLER)
USB
USB flash drive
LAN
GP-IB
RS-232C
BCD Interface

AccuracyZ ±0.05% rdg. θ: ±0.03° (represestative value, Measurable range: 1 mΩ to 200 MΩ)
