Signatrol SL51T Temperature Button Data logger (-40 to 85°C)

Rating:
100%
SKU
SL51T
฿6,100.00
In stock

Temperature Button Data Logger, Measurement range: -40 to 85℃
Record up to 2,048 readings, Battery life 10 years
IP55 Waterproofing, Compact size: ø17 x 6 mm.
Signatrol, UK

Add to Compare

Signatrol SL51 Temperature Button Data logger (-40 to 85°C)

The SL51T is a self contained, multiple use, miniature temperature data logger with the ability to record up to 2,048 readings. Being only 17mm in diameter and 6mm thick, the SL51T is an incredibly small temperature data logger. It is about the same size as a watch battery, which enables it to be inserted into small items and packages. IP55 - Protected against ingress of dust and protected against low-pressure jets of water.

Signatrol, United Kingdom

Signatrol SL51 Series
Model Detail Accuracy
SL51T Temperature Button Data logger (-40 to 85°C)
  • ±1.0°C (at -30 to 70°C)
  • ±1.3°C Outside of this range.
SL51T-A Temperature Button Data logger (-40 to 85°C) with Calibration certificate 3 point, conform UKAS
Signatrol SL50 Series Transfer data to PC

After recorded the temperature or humidity values. Once the data have been extracted by 2 devices below.

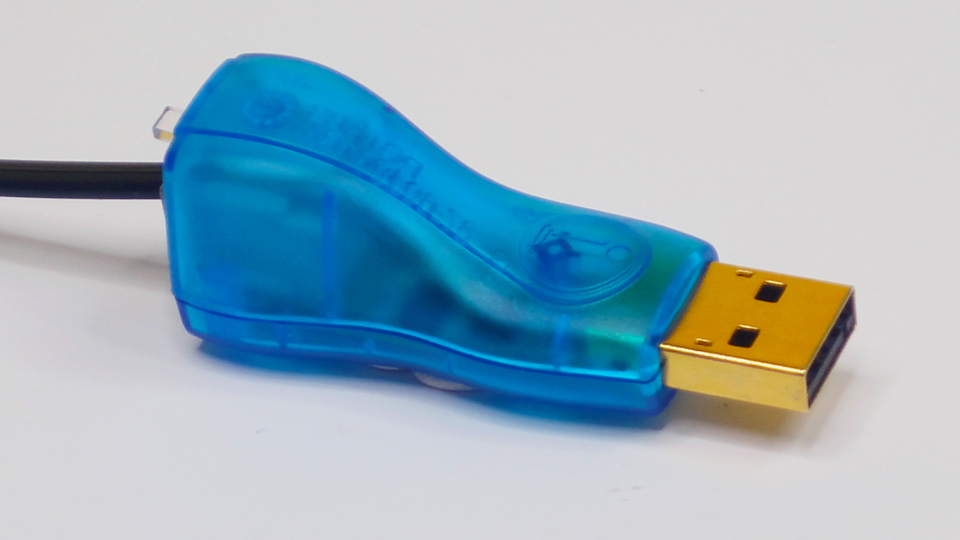

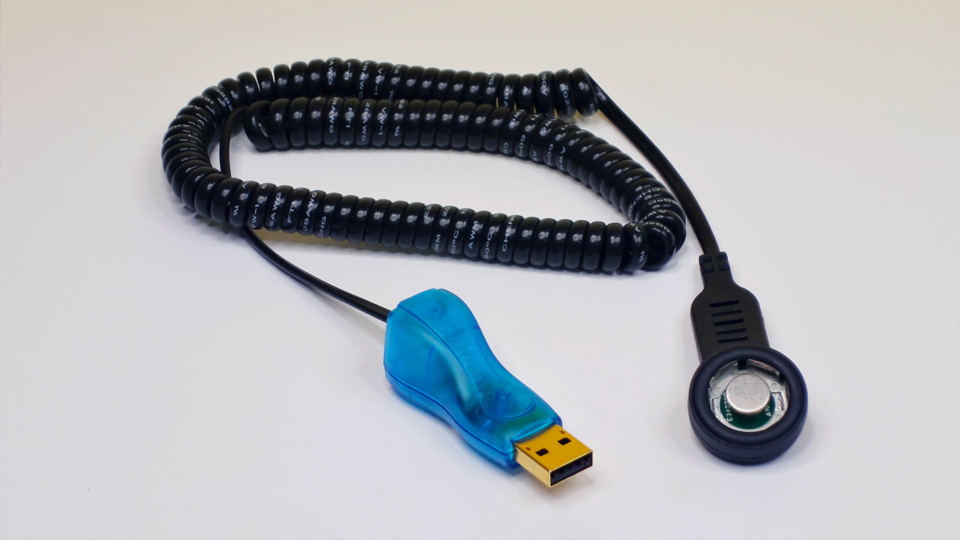

SL50-Interface-USB
SL50-Interface-USB
SL50-Interface-USB
Measuring Range -40 to 85°C
Resolution 0.5°C
Accuracy ±1.0°C from -30°C to +70°C
±1.3°C outside of this range
Power Internal Battery
Battery Life Typically 10 years at 20°C. Detailed battery life calculator is available on the Signatrol website
Sample Rate 1 minute to 255 minutes in one minute steps
Number of Readings Stored 2048
Reusable When Memory Full Yes
Response
Time
63% step change - 90 seconds in circulating air
10% to 90% step change - 180 seconds in circulating air
Waterproofing IP55 - Protected against ingress of dust and protected against low-pressure jets of water'
Please see waterproof enclosures if the product is to be submerged in liquid
Delayed Start Yes, you can specify a time and date to start logging up to 45 days in advance with one minute resolution
Software Alarms Yes, high and low alarms can be specified in the software
Material 305 Stainless Steel
Dimensions 7mm diameter x 6mm high
Certifications
(Only for SL51T-A)
FDA 21 CFR Part 11
EN12830
Meets UL#913 (4th Edit.);
Intrinsically Safe Apparatus, approval under Entity
Concept for use in Class I,
Division 1, Group A, B, C, and D Locations
EEx ia IIC T4 (-40°C to +80°C)
SKUSL51T
Dimension17 x 6 mm
ManufacturerSignatrol
Measurement objectAmbient Temperature
Sensor connector typeNo
Supported sensor TypeNo
Other FunctionNo
Power SupplyBattery Life 10 ปี
Resolution0.5℃
Temperature Sensor TypeNo
Number of ChannelNo
Water resistanceIP55
Sensor Output InterfaceNo
Temperature Range-40 to 85℃
Data loggerYes
Accuracy

±1.0°C / ±1.3°C

Your Rating

วิธีคำนวณอายุแบตเตอรี่ Signatrol SL50 Series กระดุมบันทึกอุณหภูมิ | Calculator Battery Life for Signatrol SL50 series

เป็นที่ทราบกันดีแล้วว่าแบตเตอรี่ของเม็ดกระดุม Signatrol SL50 Series ถูกปิดผนึกไว้ภายในเป็นอย่างดี ดังนั้นตลอดอายุการใช้งานจึงไม่สามารถเปลี่ยนแบตเตอรี่ใหม่ และการคำนวณอายุแบตเตอรี่จะช่วยแสดงระยะเวลา life time พร้อมกับประเมินลักษณะการใช้งานตามสภาพแวดล้อม

วิธี Upgrad โปรแกรม TempIT-Lite เป็น TempIT-Pro

วิธี Upgrad โปรแกรม TempIT-Lite เป็น TempIT-Pro 1.ลูกค้าจะต้องทำการซื้อโปรแกรม TempIt-Pro 2.ติดตั้งโปรแกรมแล้วเปิดโปรแกรมขึ้นมา 3.คลิ๊กเมาส์ที่Help แล้วเลือก License 4.คลิ๊กที่ Access Online Licence Generator จะลิ๊งค์เข้าสู่หน้าเว็ปไซค์ Signatrol.com ให้ลูกค้ากรอกรายละเอียดดังนี้
