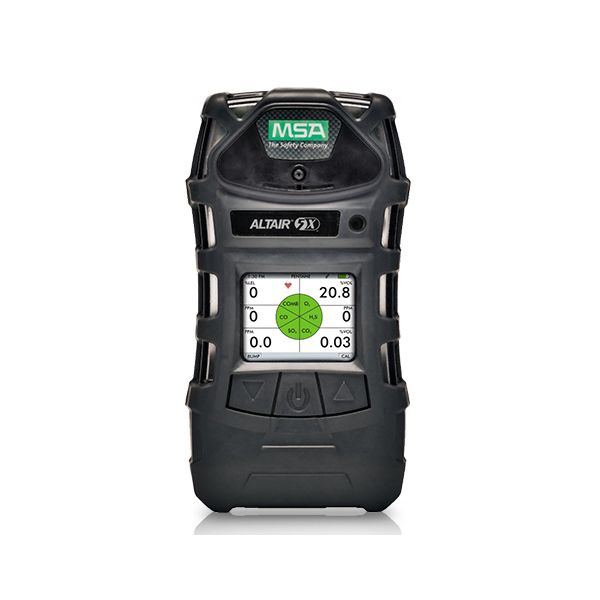

MSA Altair-5X Multi Gas Detector

SKU
ALTAIR-5X
main product photo
฿0.00
Pre-Order Item
Out of stock

Multi Gas Detector
Capable of measuring upto 6 gases
Large LCD Display simultaneously upto 6 gases
Data logger upto 1000 values
Rugged rubberized with IP65 & 3M drop test

สอบถาม
Categories: Gas Leak Detectors, MSA
MSA

MSA Altair-5X Multigas Detector

ALTAIR 5X The ALTAIR 5X Gas Detector is capable of measuring up to 6 gases simultaneously and is now available with integrated PID sensor for VOC detection. Driven by advanced MSA XCell® Sensor Technology, the ALTAIR 5X Gas Detector delivers faster response time, better stability, accuracy, longer service life, and cost savings over the life of the instrument.

MSA-Exclusive Feature
XCell® Sensors

Sensor Types

Gas Type Range Resolution Gas Type Range Resolution
Combustible 0 to 100% LEL 1% LEL Nitrogen Dioxide 0 to 20 ppm 0.5 ppm
Oxygen 0 to 30% Vol 0.1% Vol Nitrogen Dioxide 0 to 50 ppm 0.1 ppm
Carbon Monoxide 0 to 2000 ppm 1 ppm Phosphine 0 to 5 ppm 0.1 ppm
Carbon Monoxide 0 to 10000 ppm 5 ppm Hydrogen Cyanide 0 to 30 ppm 0.1 ppm
Hydrogen Sulfide 0 to 200 ppm 1 ppm Carbon Dioxide, CO2 0 to 10% Vol 0.01% Vol
Hydrogen Sulfide 0 to 100 ppm 0.1 ppm Butane, C4H10 0 to 25% Vol 0.1% Vol
Sulfur Dioxide 0 to 20 ppm 0.1 ppm Methane, CH4 0 to 100% Vol 1% Vol
Chlorine 0 to 10 ppm 0.05 ppm Propane, C3H8 0 to 100% Vol 1% Vol
Ammonia 0 to 100 ppm 1 ppm VOC 0 to 2000 ppm 0.1 ppm
Chlorine dioxide 0 to 1 ppm 0.01 ppm — — —

SPECIFICATION

Protection IP65 for dust and water ingress, 3M drop test
Power requirement Rechargeable lithium-ion battery
Dimension / Weight 169 x 89 x 42mm / 453g (without IR)
169 x 89 x 50mm / 680g (with IR)
170 x 90 x 51mm / 453g (with PID)
SKUALTAIR-5X
Weight453.000000
Dimension169 x 89 x 42mm
ManufacturerMSA
Data loggerYes
Monitoring GasCL2, CO, Combustible, H2S, HCN, O2, SO2
Resolution No
Measurement Range
Gas Type Range Resolution Gas Type Range Resolution
Combustible 0 to 100% LEL 1% LEL Nitrogen Dioxide 0 to 20 ppm 0.5 ppm
Oxygen 0 to 30% Vol 0.1% Vol Nitrogen Dioxide 0 to 50 ppm 0.1 ppm
Carbon Monoxide 0 to 2000 ppm 1 ppm Phosphine 0 to 5 ppm 0.1 ppm
Carbon Monoxide 0 to 10000 ppm 5 ppm Hydrogen Cyanide 0 to 30 ppm 0.1 ppm
Hydrogen Sulfide 0 to 200 ppm 1 ppm Carbon Dioxide, CO2 0 to 10% Vol 0.01% Vol
Hydrogen Sulfide 0 to 100 ppm 0.1 ppm Butane, C4H10 0 to 25% Vol 0.1% Vol
Sulfur Dioxide 0 to 20 ppm 0.1 ppm Methane, CH4 0 to 100% Vol 1% Vol
Chlorine 0 to 10 ppm 0.05 ppm Propane, C3H8 0 to 100% Vol 1% Vol
Ammonia 0 to 100 ppm 1 ppm VOC 0 to 2000 ppm 0.1 ppm
Chlorine dioxide 0 to 1 ppm 0.01 ppm — — —
Other FunctionNo
Power SupplyBattery Rechargeable li-ion/ AA alkaline
Water resistanceIP65
Sensor Output InterfaceNo
AccuracyNo
Your Rating

PDF Download PDF Download

อุปกรณ์เสริม

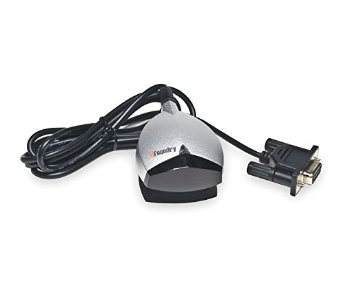

  • USB IR Receiver
  • ใช้สำหรับเชื่อมต่อกับคอมพิวเตอร์พื่อทำการดาวน์โหลดข้อมูล
