Eclatorq EQ-31-B-3182 Box End Insert (9 X 12)

SKU

EQ-31-B-3182

Skip to the end of the images gallery

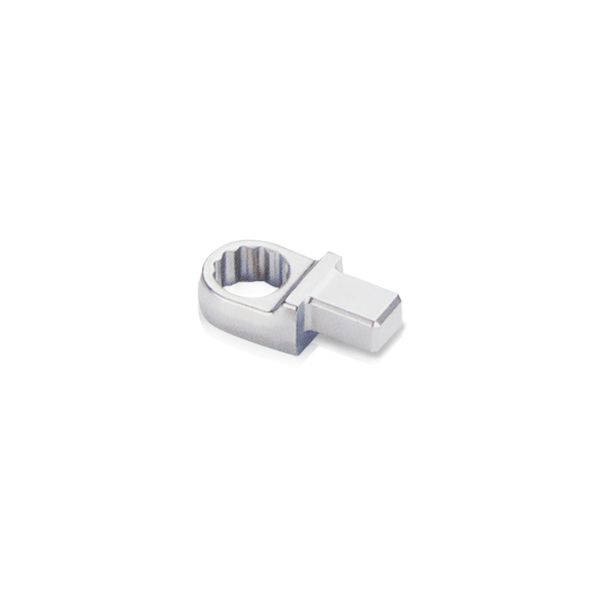

main product photo

Skip to the beginning of the images gallery

฿500.00

In stock

No. 311802C2
Box End Insert
Size of end Fitting : 9 x 12

Categories: Eclatorq, Product Type 4 (Stock Item)

Eclatorq EQ-31-B-3182 Box End Insert (9 X 12)

Box End Insert (9 X 12) Series

Model	No.	Size (mm)	Size of End Fitting (mm)
EQ-31-B-3072	310702C2	7	9 x 12
EQ-31-B-3082	310802C2	8	9 x 12
EQ-31-B-3102	311002C2	10	9 x 12
EQ-31-B-3112	311102C2	11	9 x 12
EQ-31-B-3122	311202C2	12	9 x 12
EQ-31-B-3132	311302C2	13	9 x 12
EQ-31-B-3142	311402C2	14	9 x 12
EQ-31-B-3152	311502C2	15	9 x 12
EQ-31-B-3162	311602C2	16	9 x 12
EQ-31-B-3172	311702C2	17	9 x 12
EQ-31-B-3182	311802C2	18	9 x 12
EQ-31-B-3192	311902C2	19	9 x 12
EQ-31-B-3212	312102C2	21	9 x 12
EQ-31-B-3222	312202C2	22	9 x 12

9 x 12 mm. Digital Torque Wrench

Compatible with 9 x 12 mm. Digital Torque Wrench

Model
Model	WSC2-030CN	WSC3-030CN	WSC3-060CN	WSC3-085CN	WEC2-030BN	WEC3-135BN	WEC4-135BN
Torque Range	1.5 to 30 N-m 1.11 to 22.12 ft-lb 13.3 to 265.5 in-lb 15.3 to 306.1 kg-cm	1.5 to 30 N-m 1.11 to 22.12 ft-lb 13.3 to 265.5 in-lb 15.3 to 306.1 kg-cm	3 to 60 N-m 2.21 to 44.24 ft-lb 26.5 to 530.9 in-lb 30.6 to 612.2 kg-cm	4.2 to 85 N-m 3.1 to 62.7 ft-lb 37 to 752 in-lb 43 to 867 kg-cm	1.5 to 30 N-m 1.11 to 22.12 ft-lb 13.3 to 265.5 in-lb 15.3 to 306.1 kg-cm	6.8 to 135 N-m 5 to 99.5 ft-lb 60 to 1195 in-lb 69 to 1378 kg-cm	6.8 to 135 N-m 5 to 99.5 ft-lb 60 to 1195 in-lb 69 to 1378 kg-cm
Accuracy	CW: ±3%	CW: ±3%	CW: ±3%	CW: ±3%	CW: ±2%	CW: ±2%	CW: ±2%
Accuracy	CCW: ±4%	CCW: ±4%	CCW: ±4%	CCW: ±4%	CCW: ±3%	CCW: ±3%	CCW: ±3%
Square Drive	1/4"	3/8"	3/8"	3/8"	1/4"	3/8"	1/2"
Resolution	0.01 N-m, 0.01 ft-lb, 0.1 in-lb, 0.1 kg-cm	0.01 N-m, 0.01 ft-lb, 0.1 in-lb, 0.1 kg-cm	0.01 N-m, 0.01 ft-lb, 0.1 in-lb, 0.1 kg-cm	0.1 N-m, 0.1 ft-lb, 1 in-lb, 1 kg-cm	0.01 N-m, 0.01 ft-lb, 0.1 in-lb, 0.1 kg-cm	0.1 N-m, 0.1 ft-lb, 1 in-lb, 1 kg-cm	0.1 N-m, 0.1 ft-lb, 1 in-lb, 1 kg-cm
Gear Teeth	52
Size of End Fitting	9 x 12
Power requirement	Battery AAA x 2
Dimension	220 mm	225 mm	225 mm	268 mm	390 mm	410 mm	410 mm
Weight	420 g	490 g	500 g	580 g	790 g	970 g	980 g

More Information

SKU	EQ-31-B-3182
Weight	400.000000
Dimension	dia. 9 x 12 mm
Manufacturer	Eclatorq

PDF Download
