IMADA ZTS Series Digital Force Gauge

IMADA ZTS Series Digital Force Gauge with Remote Sensor

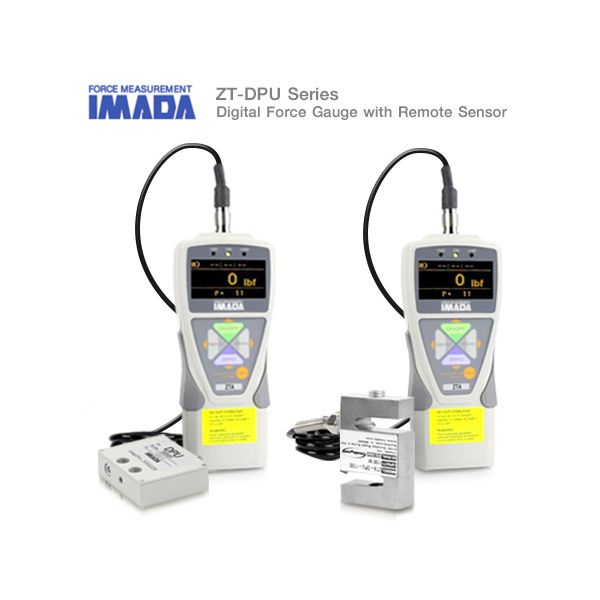

ZT-DPU Series digital force gauge with remote sensor offers the same features as the ZTS or ZTA force gauges and is ideal for measurements in comfined or difficult to reach locations. All standard DPU sensors come with a six foot cable and measure both compression and tension.

Easy-to-use menus make programming simple in eight languages. Select units, reverse display, set high/low setpoints, and all other functions in plain language. Electroluminescent EL display shows force value, unit, and peak, and can be configured with additional user selectable data including memory data, +NG count, high/low setpoints, 1st and 2nd peaks, displacement value (using Imada test stand with FA option), etc.

Color-coded LED indicators alert the user to Go/NoGo conditions. Orange lights for less than low setpoint, green lights between high and low, and red for over the high.

Process and transmit 2,000 actual data per second, not just the peak from a high sampling rate. Optional Force Recorder data acquisition software is designed to process up to 2,000 data per second.

Features (ZTS-DPU & ZTA-DPU)

• EL electro luminescent display is highly visible in datk locations.
• Multi-langauge program menus : English, Spanish, French, Chinese, German, Italian, Korean, Japanese
• Processes and transmits 2,000 data/sec.
• Color-coded LED indicators and output signal for Go/No Go testing.
• Ergonomic design with non-slip grips, heavy duty metal construction.
• Capacity up to 4,400 lbs (push/pull)
• Overload capacity 200% F.S.
• USB (virtual COM port), RS-232C, Digimatic and Analog outputs.
• 1,000 data memory for recall or download.
• External switch display hold and clear.
• Internal Ni-MH batteries or AC adapter.
• Real time and Peak mode (selectable)
• Overload alarm and Output signal.

Features (ZTA-DPU only)

• Display force and Displacement data with Imada FA Test Stand.
• Export gauge memory or save continuous data to USB Flash drives.

Model Range

Specifications
